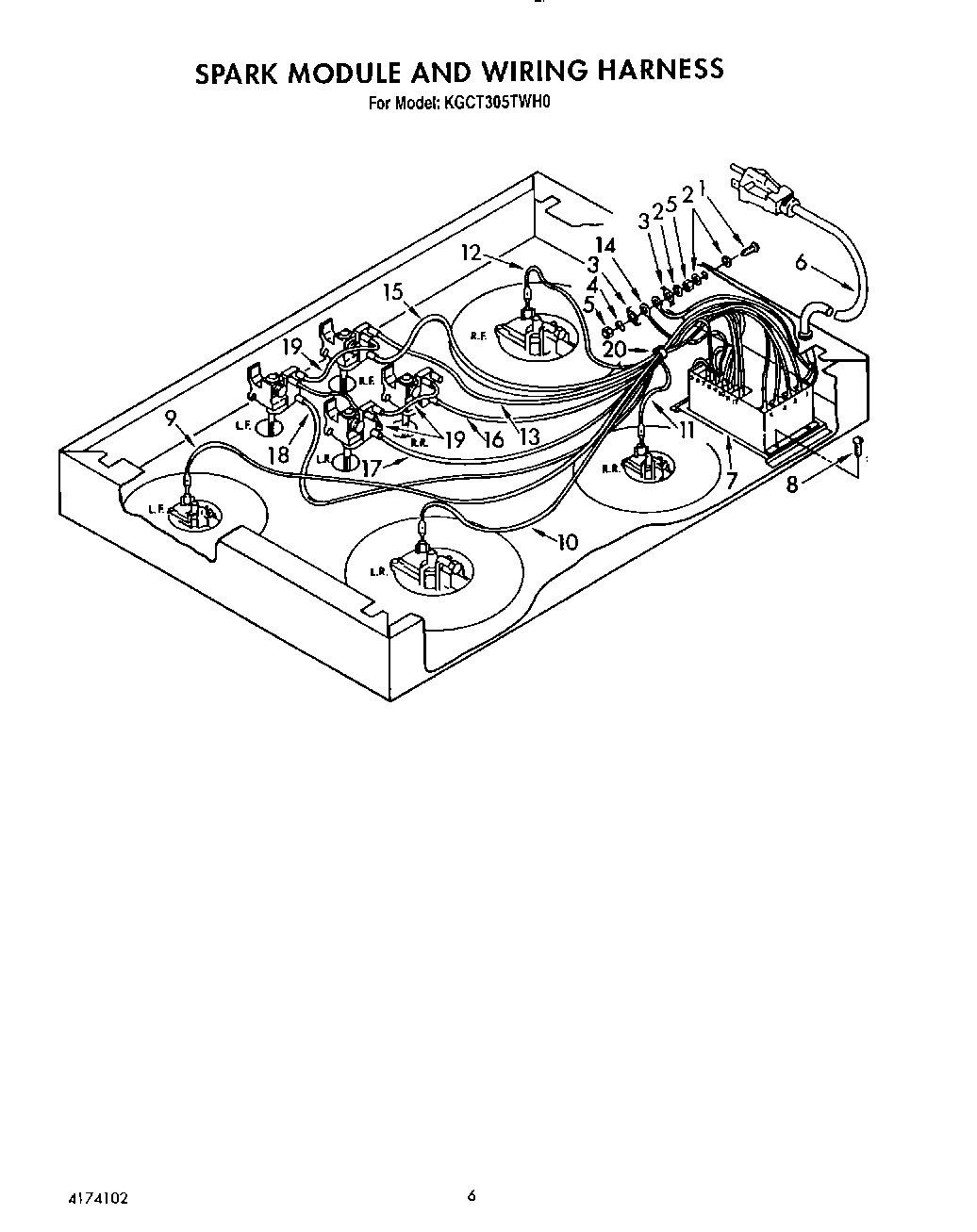

KGCT305TWH0 05 – SPARK MODULE AND WIRING HARNESS

Products

Position	Product
1	Screw, Grounding
2	Washer, Internal Tooth Grounding
3	Clamp, Washer (Copper)
4	Washer, Coil Spring
5	Nut, Hex (Brass)
6	Cord, Power
7	WP4454392 Whirlpool Spark Module
8	Screw, Spark Module (3)
10	Wire Assembly No.2 (White) (Spark Module to LR Jet Lighter Electrode)
11	Wire Assembly No.3 (White) (Spark Module to RR Jet Lighter Electrode)
12	Wire Assembly No.4 (White) (Spark Module to RF Jet Lighter Electrode)
13	Wire Assembly No.7 (Black) (Spark Module to RF Burner Switch)
14	Wire Assembly No.8 (Green/Yellow) (Spark Module to Ground)
15	Wire Assembly No.9 (Red) (Spark Module to RF Burner Switch
16	Wire Assembly No.10 (Red) (Spark Module to RR Burner Switch)
17	Wire Assembly No.11 (Red) (Spark Module To LR Burner Switch)
18	Wire Assembly No.12 (Red) (Spark Module to LF Burner Switch)
19	Wire Assembly No.13 14, and 15 (Black) (Loop Wires for Burner Switches)
20	Tie, Cable (Harness Wires)
