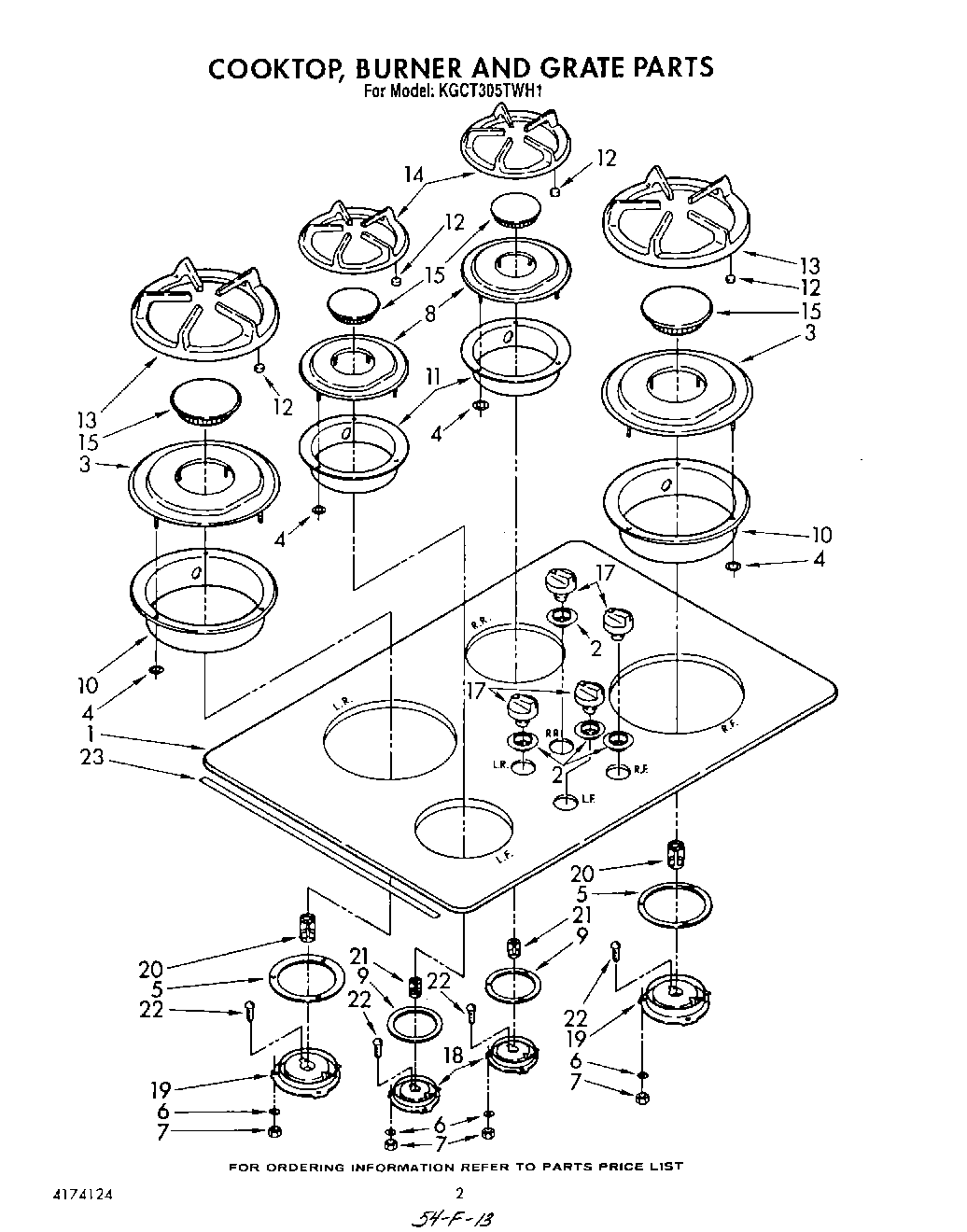

KGCT305TWH1 02 – COOKTOP BURNER AND GRATE

Products

Position	Product
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (Black (Includes Illus. 23))
1	Cooktop, Glass (White)
2	Grommet, Glass Cooktop (4) (White)
2	Grommet, Glass Cooktop (4) (Almond)
2	Grommet, Glass Cooktop (4) (Black)
3	Bezel, Cooktop (Large) (Black (Includes Illus. 4, 5, 6, and 7))
3	Bezel, Cooktop (Large) (White)
3	bezel, cooktop (large) (almond)
4	Retainer, Push-On (3)
5	Gasket, Burner (Large)
6	Washer, Flat
7	Nut, Manifold Bracket (8)
8	Bezel, Cooktop (Small) (Black (Includes Illus. 4, 6, 7, and 9))
8	bezel, cooktop (small) (white)
8	bezel, cooktop (small) (almond)
9	Gasket, Burner (Small)
10	Shield, Heat (Large) (Includes Illus. 4)
11	Shield, Heat (Small) (Includes Illus. 4)
12	WPL 4173550
13	Grate, Large (RF & LR) (Taupe (KGCT305TAL0))
13	Grate, Large (RF & LR) (Shadow Grey (KGCT305TWH0))
13	Grate, Large (RF & LR) (Black (KGCT305TBL0))
14	Grate (Small) L.F.& R.R. (Black (KGCT305TBL0))
14	Grate (Small) L.F.& R.R. (Taupe (KGCT305TAL0))
14	Grate (Small) L.F.& R.R. (Shadow Grey (KGCT305TWH0))
15	Cap, Burner (Set of 4) (2-Small 2-Large) (Shadow Grey (KGCT305TWH0))
15	Cap, Burner (Set
15	WPL 4175452
17	WPL 4173479
17	WPL 4173480
17	WPL 4173481
18	WPL 4173537
19	WPL 4173536
20	WPL 4173539
21	WPL 4173540
22	WPL 4173538
23	WPL 4175385
23	WPL 4173552
23	Seal, Glass Cooktop Silicon
