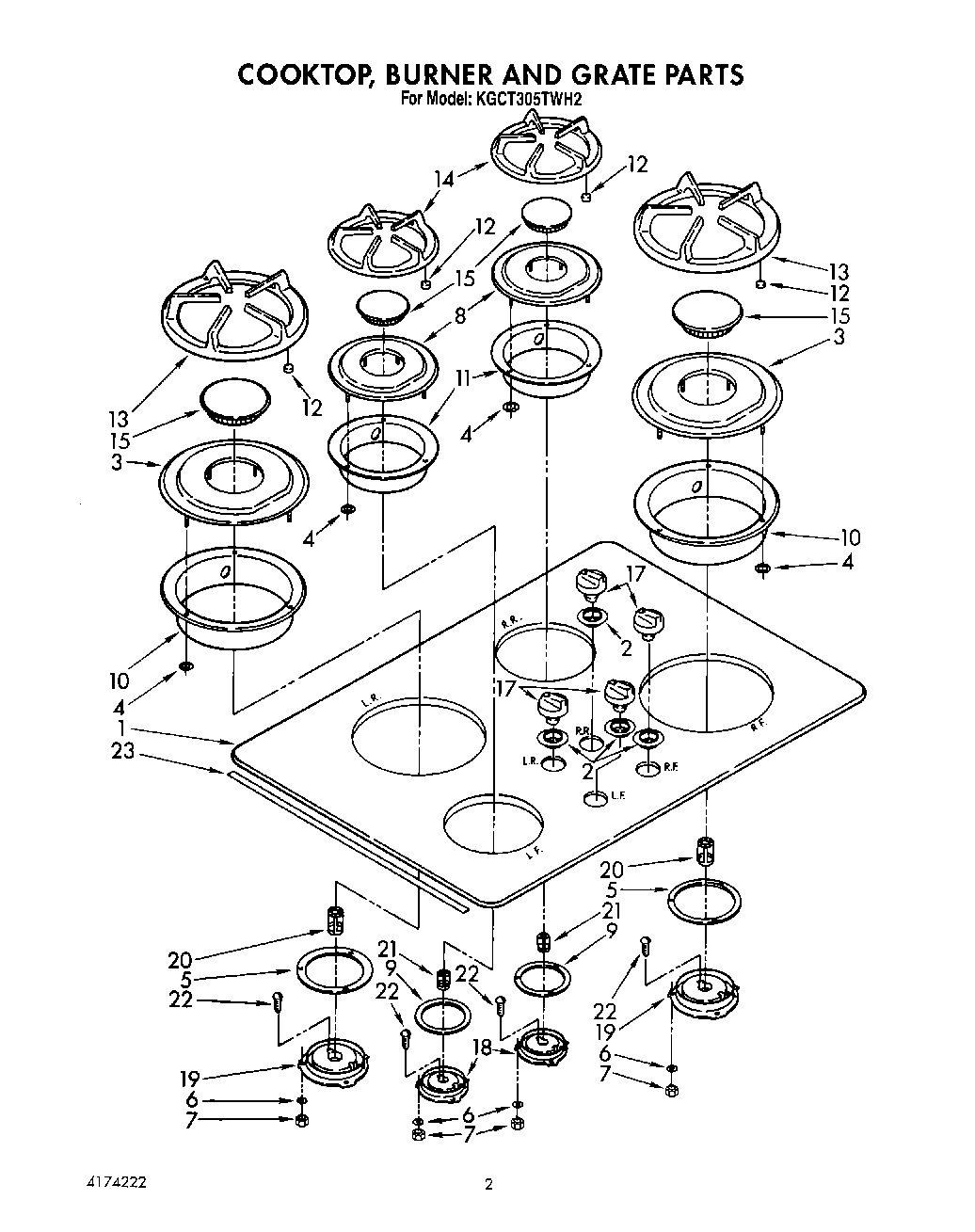

KGCT305TWH2 02 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop, Glass (Black (Includes Illus. 23))
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (White)
2	Grommet, Glass Cooktop (4) (White)
2	Grommet, Glass Cooktop (4) (Black)
2	Grommet, Glass Cooktop (4) (Almond)
3	Bezel, Cooktop (Large) (White)
3	Bezel, Cooktop (Large) (Black (Includes Illus. 4, 5, 6, and 7))
3	bezel, cooktop (large) (almond)
4	Retainer, Push-On (3)
5	Gasket, Burner (Large)
6	Washer, Flat
7	Nut, Manifold Bracket (8)
8	bezel, cooktop (small) (white)
8	bezel, cooktop (small) (almond)
8	Bezel, Cooktop (Small) (Black (Includes Illus. 4, 6, 7, and 9))
9	Gasket, Burner (Small)
10	Shield, Heat (Large) (Includes Illus. 4)
11	Shield, Heat (Small) (Includes Illus. 4)
12	WPL 4173550
13	Grate, Large (RF & LR) (Shadow Grey (KGCT305TWH0))
13	Grate, Large (RF & LR) (Taupe (KGCT305TAL0))
13	Grate, Large (RF & LR) (Black (KGCT305TBL0))
14	Grate (Small) L.F.& R.R. (Black (KGCT305TBL0))
14	Grate (Small) L.F.& R.R. (Shadow Grey (KGCT305TWH0))
14	Grate (Small) L.F.& R.R. (Taupe (KGCT305TAL0))
15	WPL 4173608
15	Cap,
15	WPL 4173607
15	Cap, Burner Small (Shadow Grey KGCT305TWH2)
15	WPL 4173606
15	Cap, Burner Small (Taupe KGCT305TAL2)
17	WPL 4173480
17	WPL 4173479
17	WPL 4173481
18	WPL 4173537
19	WPL 4173536
20	WPL 4173539
21	WPL 4173540
22	WPL 4173538
23	Seal, Glass Cooktop Silicon
23	WPL 4173552
23	WPL 4175385
