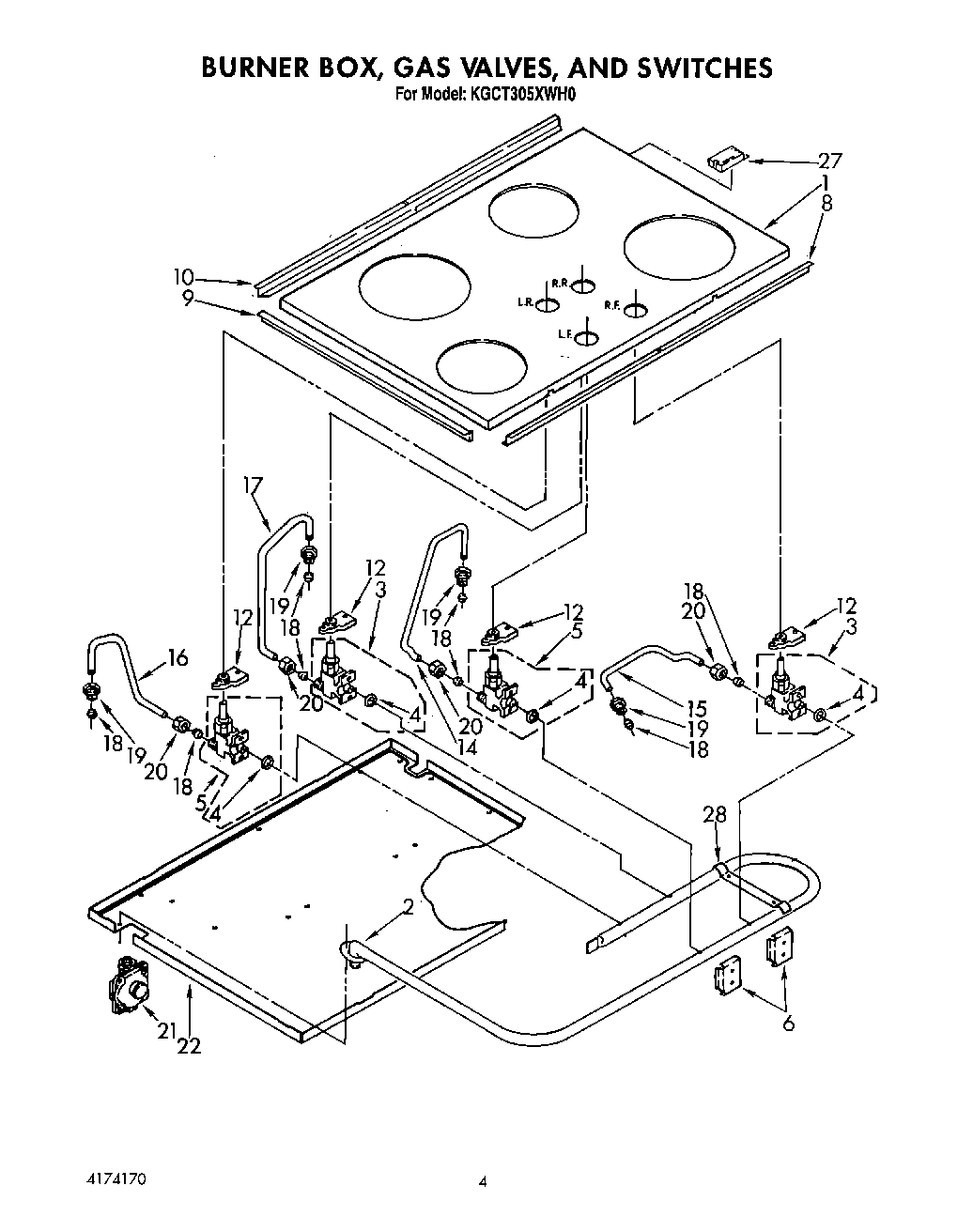

KGCT305XAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHESadmin2025-04-26T11:19:03+00:00KGCT305XAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES
Products
| Position | Product |
|---|
| Repair Parts List |
| Use & Care Guide |
| NI | Screw (8) |
| WPL LIT3177316 |
| 1 | Cover, Top Assy. |
| 2 | Pipe, Manifold |
| 3 | Valve, Gas Burner (LF & RR) (Includes Illus. 4) |
| 4 | Washer, Gas Valve Sealing Washer (4) |
| 5 | Valve, Gas Burner (RF & LR) (Includes Illus. 4) |
| 6 | Bracket, Clamp (4) (Gas Valve) |
| 8 | Frame, Front |
| 9 | Frame, Side (2) |
| 10 | Frame, Rear |
| 12 | WP3185427 Whirlpool Igniter Switch |
| 14 | Tubing, Large Gas Burner (RF) |
| 15 | Tubing, Small Gas Burner (LF) |
| 16 | Tubing, Large Gas Burner (LR) |
| 17 | Tubing, Small Gas Burner (RR) |
| 18 | Sleeving, Gas Tube (8) |
| 19 | Nut, Gas Tubing (Burner End) 4 |
| 20 | Nut, Gas Tubing (Gas Valve End) 4 |
| 21 | Regulator, Pressure |
| 22 | Cover, Burner Box |
| 27 | WP4454392 Whirlpool Spark Module |
| 28 | Clamp, Manifold |
