| Tape, Foam (94``) |
| Wire Assy. Blue 23`` Spark Module Term.3 To Right Rear Burner Term.1 |
| Wire Assy. Red 14`` Spark Module Term.12 To Left Front Burner Switch |
| Wire Assy. Yellow 18`` Spark Module Term.11 To Left Rear Burner Switch |
| Wire Assy. Yellow 31`` Spark Modu |
| WPL 3185254 |
| WPL 3185255 |
| WPL 4169261 |
| WPL 4175444 |
| WPL LIT3177316 |
| Wire Assy. GRD. |
| Use & Care Guide |
| WPL LIT4174184 |
| Wire Assy. Red 16`` Spark Module Term.1 To Left Front Burner Term.1 |
| Wire Assy. White 10`` Spark Module Term.2 To Left Rear Burner Term.1 |
| seal, foam tape |
| WPL 3179589 |
| Hardware, Mounting |
| Harness, Wire Sealed Gas Cooktop |

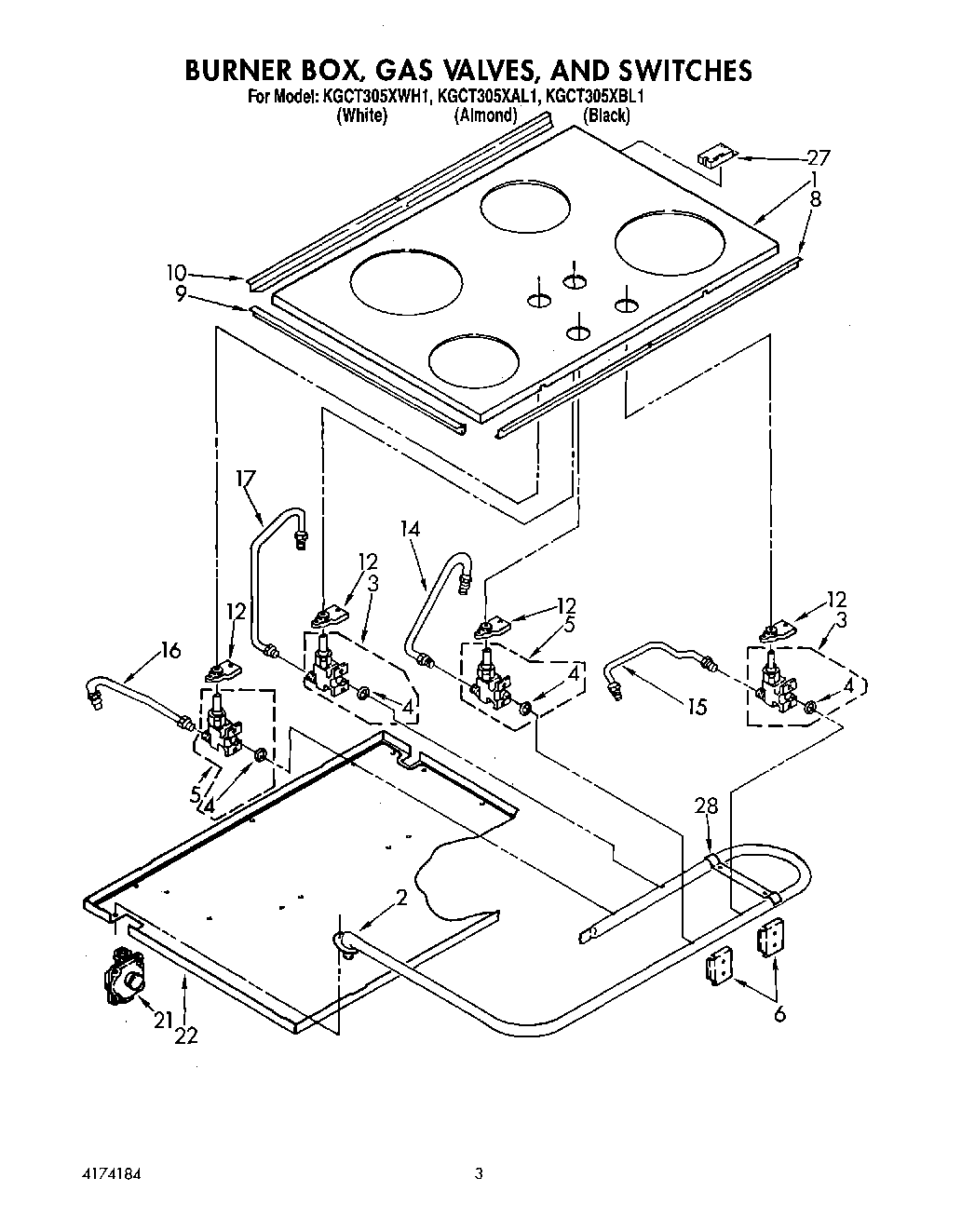

| 1 | Cover, Top Assy. |
| 2 | Pipe, Manifold |
| 3 | Valve, Gas Burner (LF & RR) (Includes Illus. 4) |
| 4 | Washer, Gas Valve Sealing Washer (4) |
| 5 | WP3188425 Whirlpool Seal Switch |
| 5 | Valve, Gas Burner (RF & LR) (Includes Illus. 4) |
| 6 | Screw (8) |
| 6 | Bracket, Clamp (4) (Gas Valve) |
| 8 | Frame, Front |
| 9 | Frame, Side (2) |
| 10 | Frame, Rear |
| 12 | WP3185427 Whirlpool Igniter Switch |
| 14 | Tubing, Large Gas Burner (RF) |
| 15 | Tubing, Small Gas Burner (LF) |
| 16 | Tubing, Large Gas Burner (LR) |
| 17 | Tubing, Small Gas Burner (RR) |
| 21 | Regulator, Pressure |
| 22 | Cover, Burner Box |
| 27 | Screw (4) |
| 27 | WP4454392 Whirlpool Spark Module |
| 28 | Clamp, Manifold |
