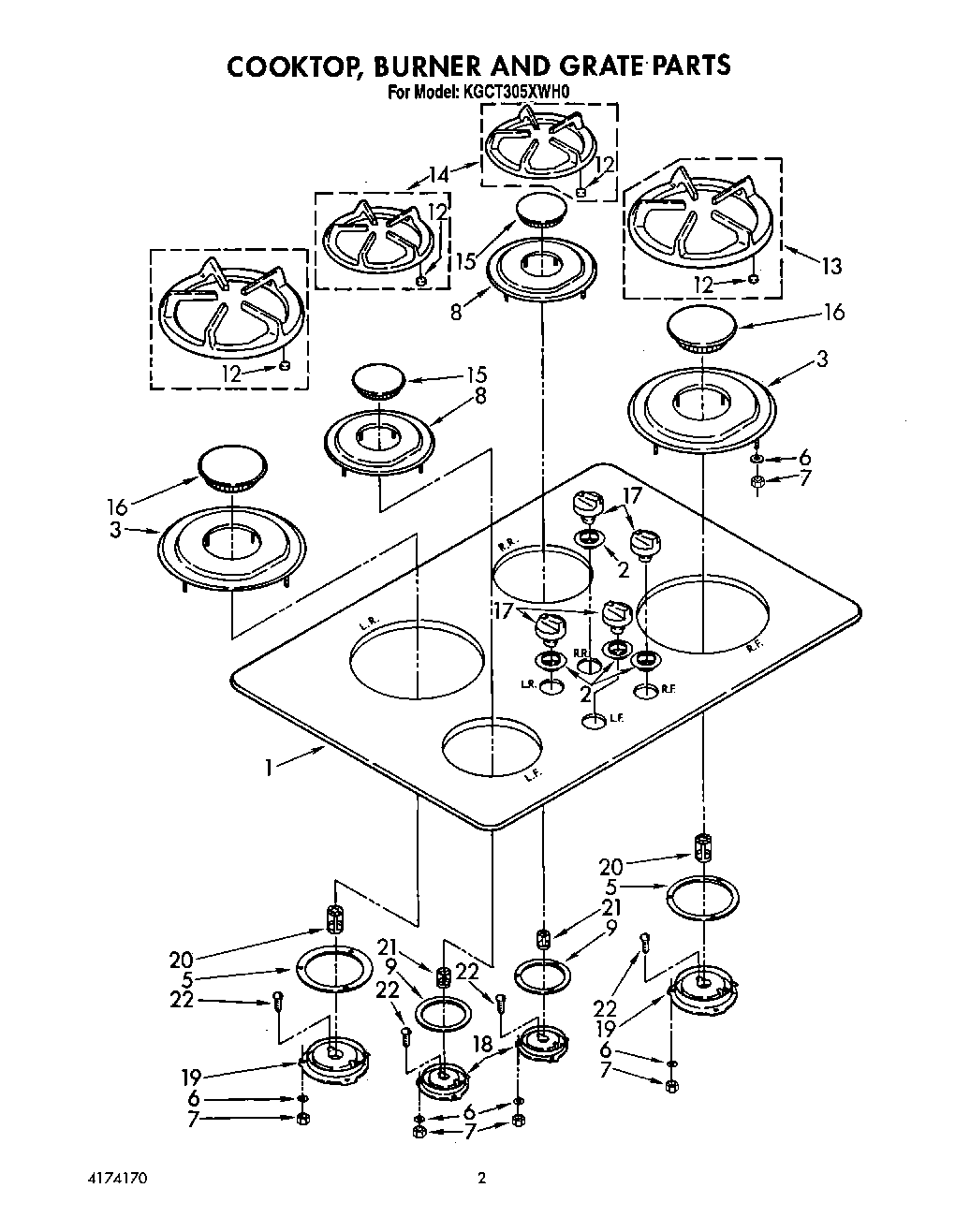

KGCT305XBL0 02 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop, Glass (Black Model)
1	Cooktop, Glass (White Model)
1	Cooktop, Glass (Almond Model)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854241 Whirlpool Grommet
3	Bezel, Large (Black (KGCT025YBL1))
3	Bezel, Large (Shadow White (KGCT205YWH1))
3	Bezel, Large (Dark Taupe (KGCT025YAL1))
5	Gasket, Burner (Large)
6	4159493 Whirlpool Lockwasher
7	Nut, Mounting
8	Bezel, Small (Shadow White (KGCT025YWH1))
8	Bezel, Small (Dark Taupe (KGCT025YAL1))
8	Bezel, Small (Black (KGCT025YBL1))
9	Gasket, Burner (Small)
12	WPL 4173550
13	Grate, Large (RF & LR) (Black)
13	Grate, Large (RF & LR) (Includes No.12) (Shadow Grey (KGCT305XWH0))
13	Grate, Large Burner (Dark Taupe (KGCT025YAL0))
14	Grate (Small) (LF & RR) (Black)
14	Grate (Small) L.F.& R.R. (Includes No.12) (Shadow Grey (KGCT305XWH0))
14	Grate, Burner Small (Dark Taupe (KGCT025YAL0
15	Cap, Semi
15	Cap, Burner Small (Black (KGCT025YBL1))
15	Cap, Burner Small (Dark Taupe (KGCT025YAL0))
16	Cap, Large Burner (Black (KGCT025YBL1))
16	Cap, Large Burner (Dark Taupe (KGCT025YAL0))
16	WPL 3180084
17	WP3181305 Whirlpool Knob
17	WP3181306 Whirlpool Knob
17	WP3181304 Whirlpool Knob Assembly
18	Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11))
19	Sealed Gas Burner Kit (Large Burner)
20	Shutter, Air (Large Shutter)
21	Shutter, Air (Small Shutter)
22	Screw, Burner
