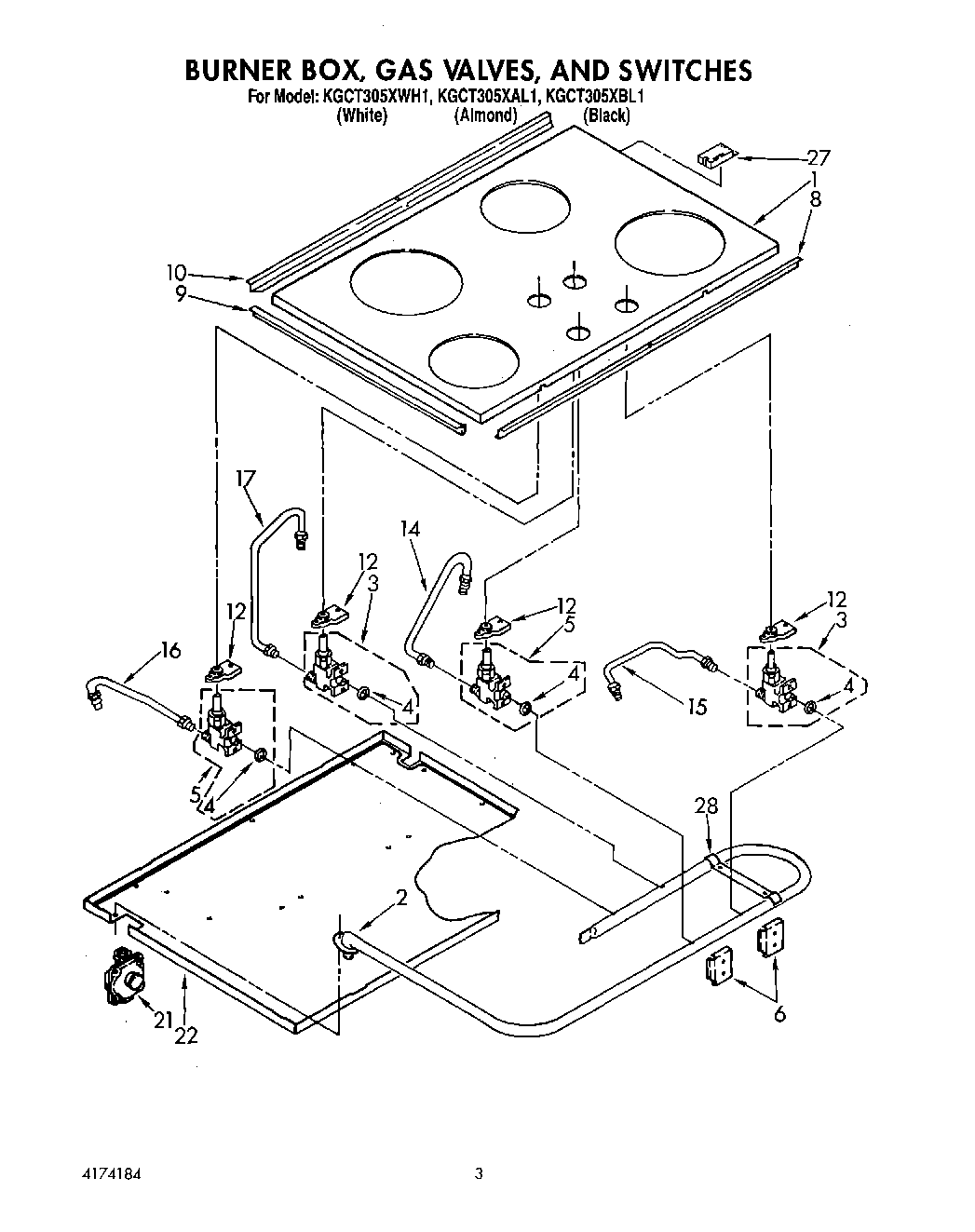

KGCT305XBL1 03 – SECTION

Products

Position	Product
	Tape, Foam (94“)
	Wire Assy. Blue 23“ Spark Module Term.3 To Right Rear Burner Term.1
	Wire Assy. Red 14“ Spark Module Term.12 To Left Front Burner Switch
	Wire Assy. Yellow 18“ Spark Module Term.11 To Left Rear Burner Switch
	Wire Assy. Yellow 31“ Spark Modu
	WPL 3185254
	WPL 3185255
	WPL 4169261
	WPL 4175444
	WPL LIT3177316
	Wire Assy. GRD.
	Use & Care Guide
	WPL LIT4174184
	Wire Assy. Red 16“ Spark Module Term.1 To Left Front Burner Term.1
	Wire Assy. White 10“ Spark Module Term.2 To Left Rear Burner Term.1
	seal, foam tape
	WPL 3179589
	Hardware, Mounting
	Harness, Wire Sealed Gas Cooktop
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing Washer (4)
5	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
6	Screw (8)
6	Bracket, Clamp (4) (Gas Valve)
8	Frame, Front
9	Frame, Side (2)
10	Frame, Rear
12	WP3185427 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Cover, Burner Box
27	Screw (4)
27	WP4454392 Whirlpool Spark Module
28	Clamp, Manifold
