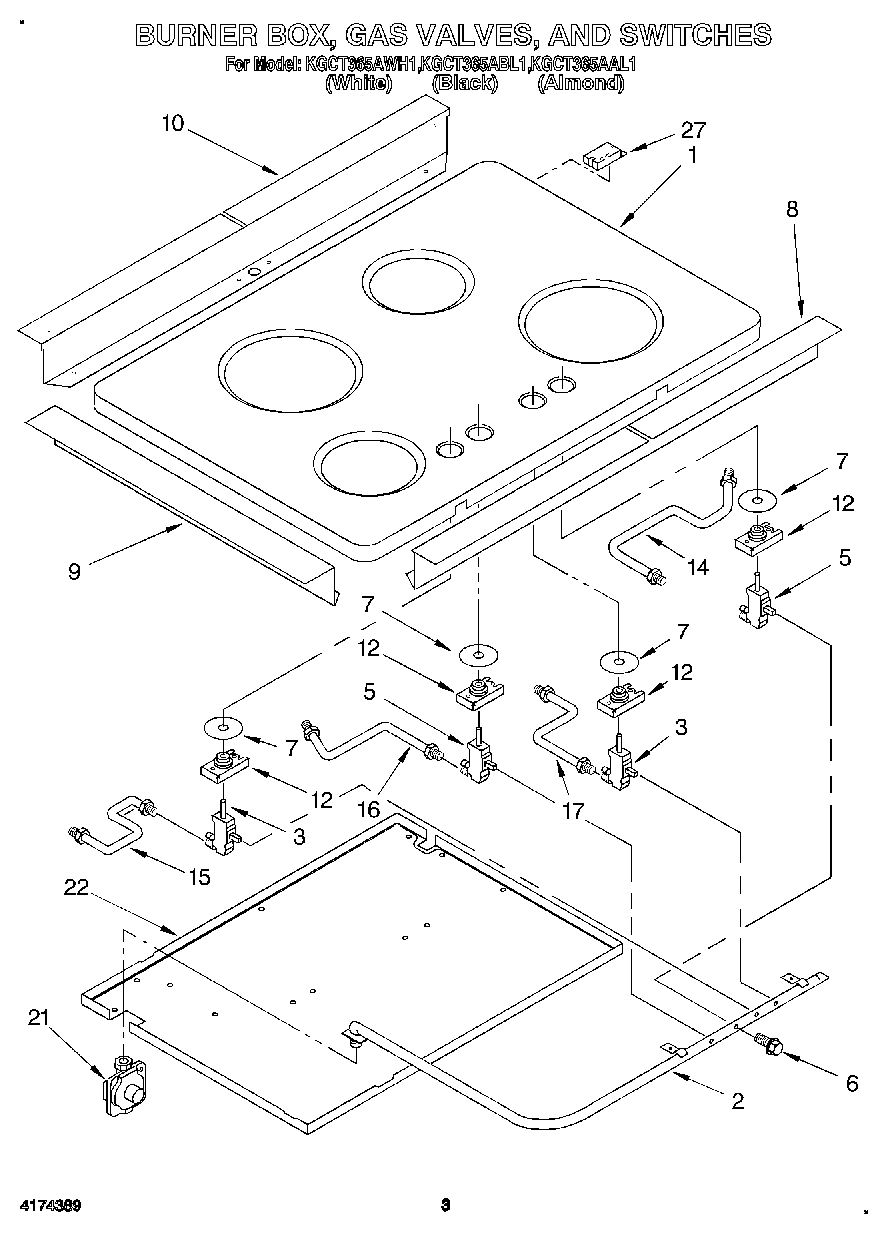

KGCT365ABL1 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Use & Care Guide
Installation Instructions
1Cover, Top Assy.
2Pipe, Manifold
3Valve, Gas Burner (LF, RR, & CR)
5WP965173 Whirlpool Dishwasher Screw
5Valve, Gas Burner (RF & LR)
6Bolt (Gas Valve)
7WP3188425 Whirlpool Seal Switch
8Frame, Front
9Frame, Side (2)
10Frame, Rear
12WP3185830 Whirlpool Oven Igniter Switch
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
21Regulator, Pressure
22Screw
22Cover, Burner Box
27WP4454392 Whirlpool Spark Module
