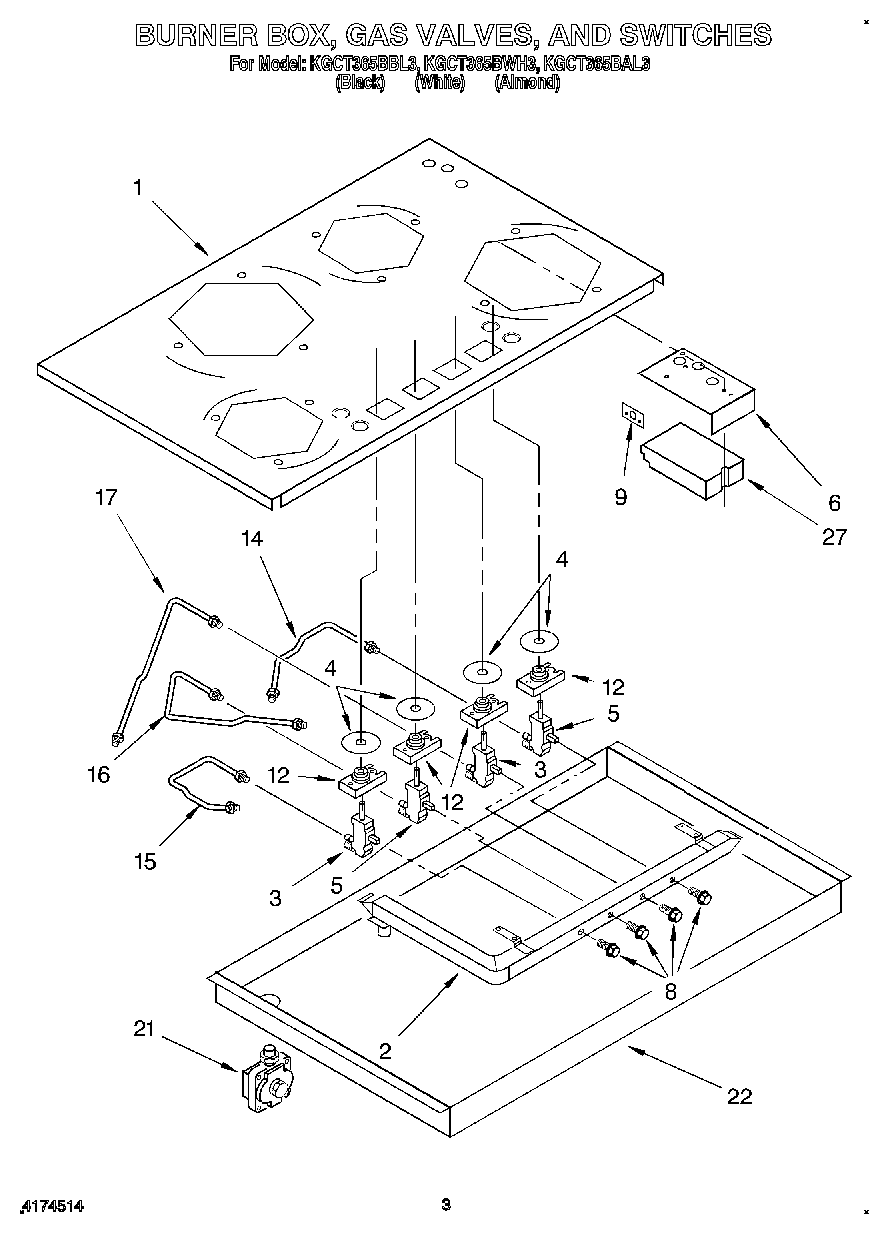

KGCT365BAL3 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Hardware, Mounting
Cord, Power
seal, foam tape
Conversion Kit Natural Gas To L.P.
WPW10339879 Whirlpool Wire Tie
Wiring Diagram
Use & Care Guide
Installation Instructions
4173634 Whirlpool Bushing
1Cover, Top Assy.
2Pipe, Manifold
3Valve, Gas Burner (LF, RR, & CR)
4WP3188425 Whirlpool Seal Switch
5Valve, Gas Burner (RF & LR)
6Sheild, Heat
8Bolt (Gas Valve)
9Grommet
12WP3185830 Whirlpool Oven Igniter Switch
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
21Regulator, Pressure
22Burner Box
22Screw
27WP3177991 Whirlpool Screw
27WP4454392 Whirlpool Spark Module
