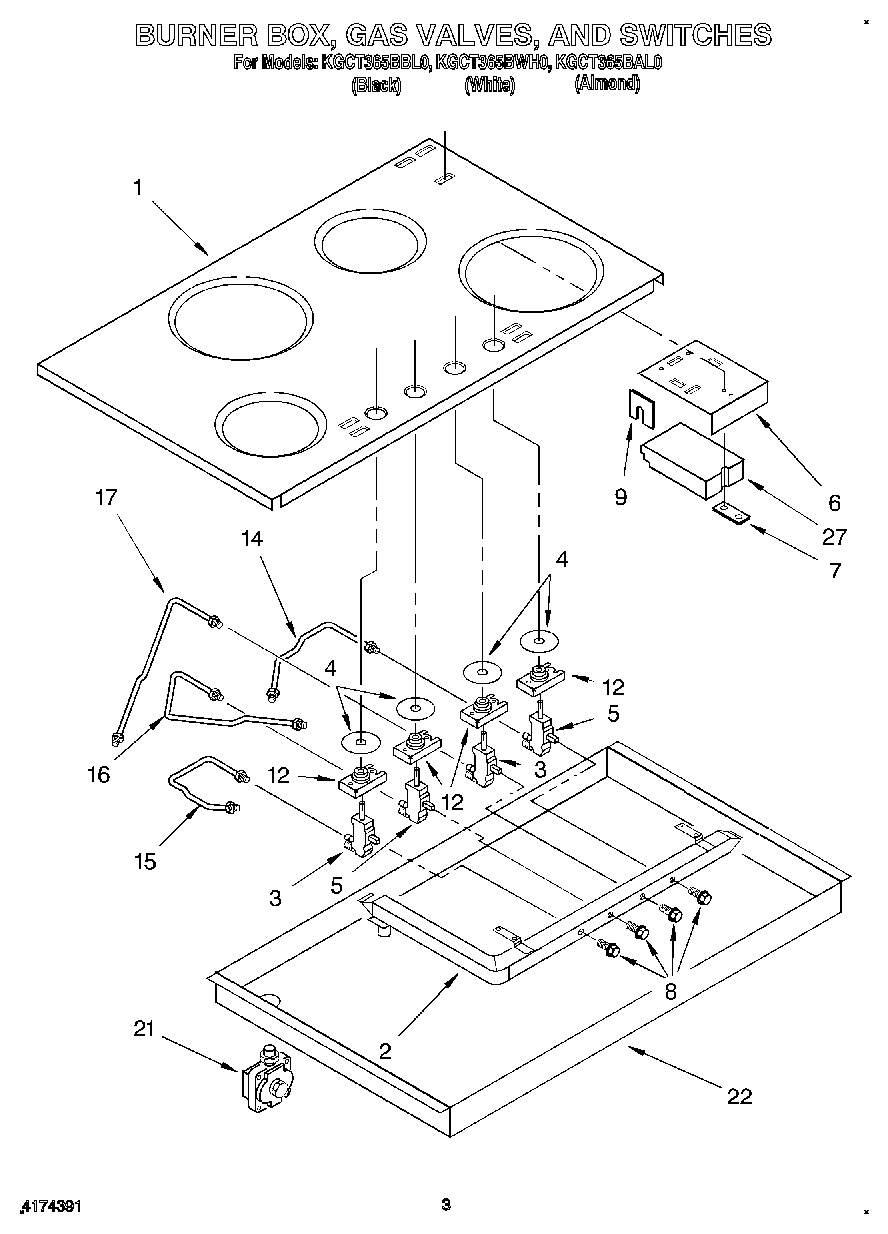

KGCT365BBL0 03 – BURNER BOX, GAS VALVES, AND SWITCHESadmin2025-04-26T11:17:51+00:00KGCT365BBL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES
Products
| Position | Product |
|---|
| Wiring Diagram |
| Installation Instructions |
| Use & Care Guide |
| Conversion Kit Natural Gas To L.P. |
| Cord, Power |
| Hardware, Mounting |
| Screw, (2) |
| WPW10339879 Whirlpool Wire Tie |
| seal, foam tape |
| 1 | Cover, Top Assy. |
| 2 | Pipe, Manifold |
| 3 | Valve, Gas Burner (LF & RR) |
| 4 | WP3188425 Whirlpool Seal Switch |
| 5 | Valve, Gas Burner (RF & LR) |
| 6 | Sheild, Heat |
| 7 | Bracket |
| 8 | Bolt (Gas Valve) |
| 9 | Grommet, Wire Way |
| 12 | WP3185830 Whirlpool Oven Igniter Switch |
| 14 | Tubing, Large Gas Burner (RF) |
| 15 | Tubing, Small Gas Burner (LF) |
| 16 | Tubing, Large Gas Gas Burner (LR) |
| 17 | Tubing, Small Gas Burner (RR) |
| 21 | Regulator, Pressure |
| 22 | Burner Box |
| 27 | WP4454392 Whirlpool Spark Module |
| 27 | Screw |
