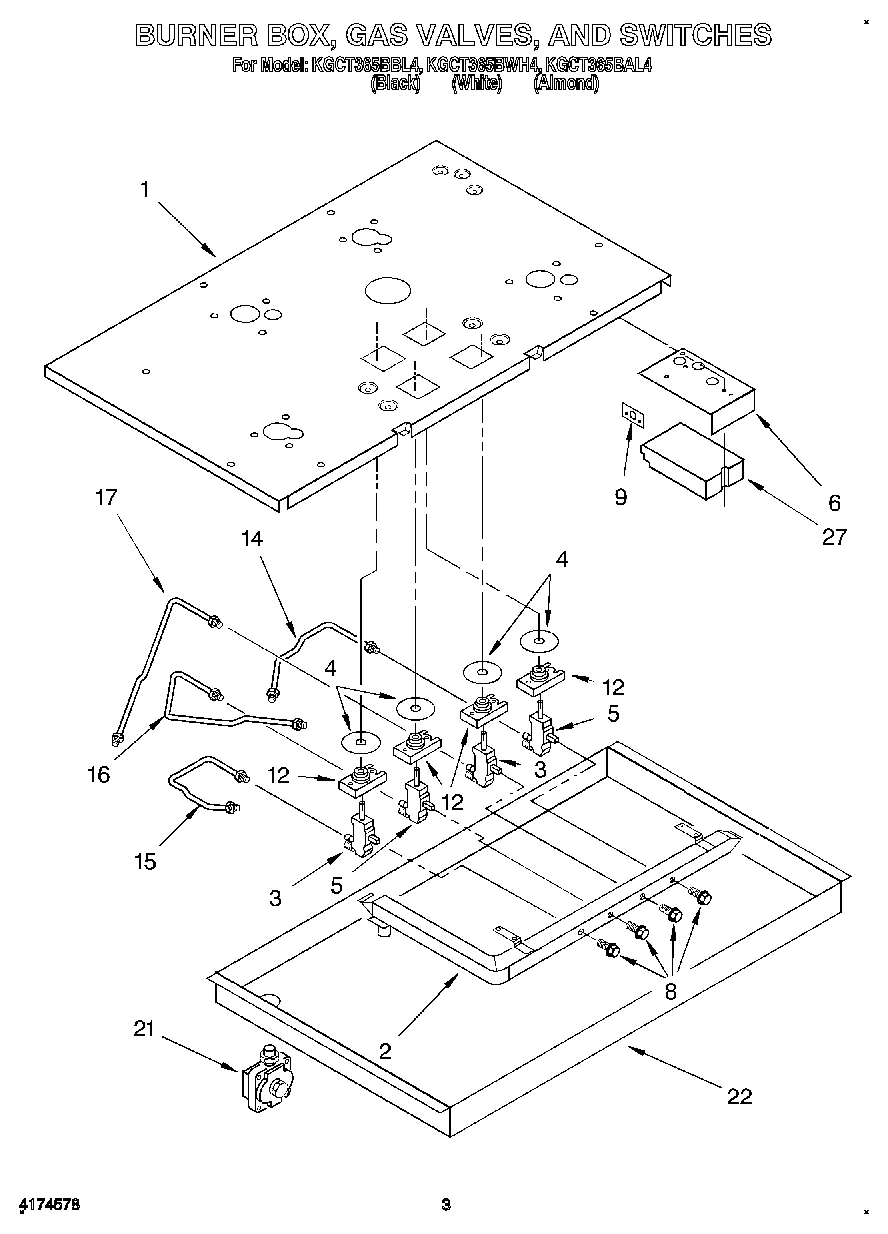

KGCT365BBL4 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCT365BBL4 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KGCT365BBL4 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Wiring Diagram
Installation Instructions
Use & Care Guide
1Cover, Top Assy.
2Pipe, Manifold
3Valve, Gas Burner (LF, RR, & CR)
4WP3188425 Whirlpool Seal Switch
5Valve, Gas Burner (RF & LR)
6Sheild, Heat
8Bolt (Gas Valve)
9Grommet
12WP3185830 Whirlpool Oven Igniter Switch
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
21Regulator, Pressure
22Burner Box
22Screw
27WP4454392 Whirlpool Spark Module
27WP3177991 Whirlpool Screw
