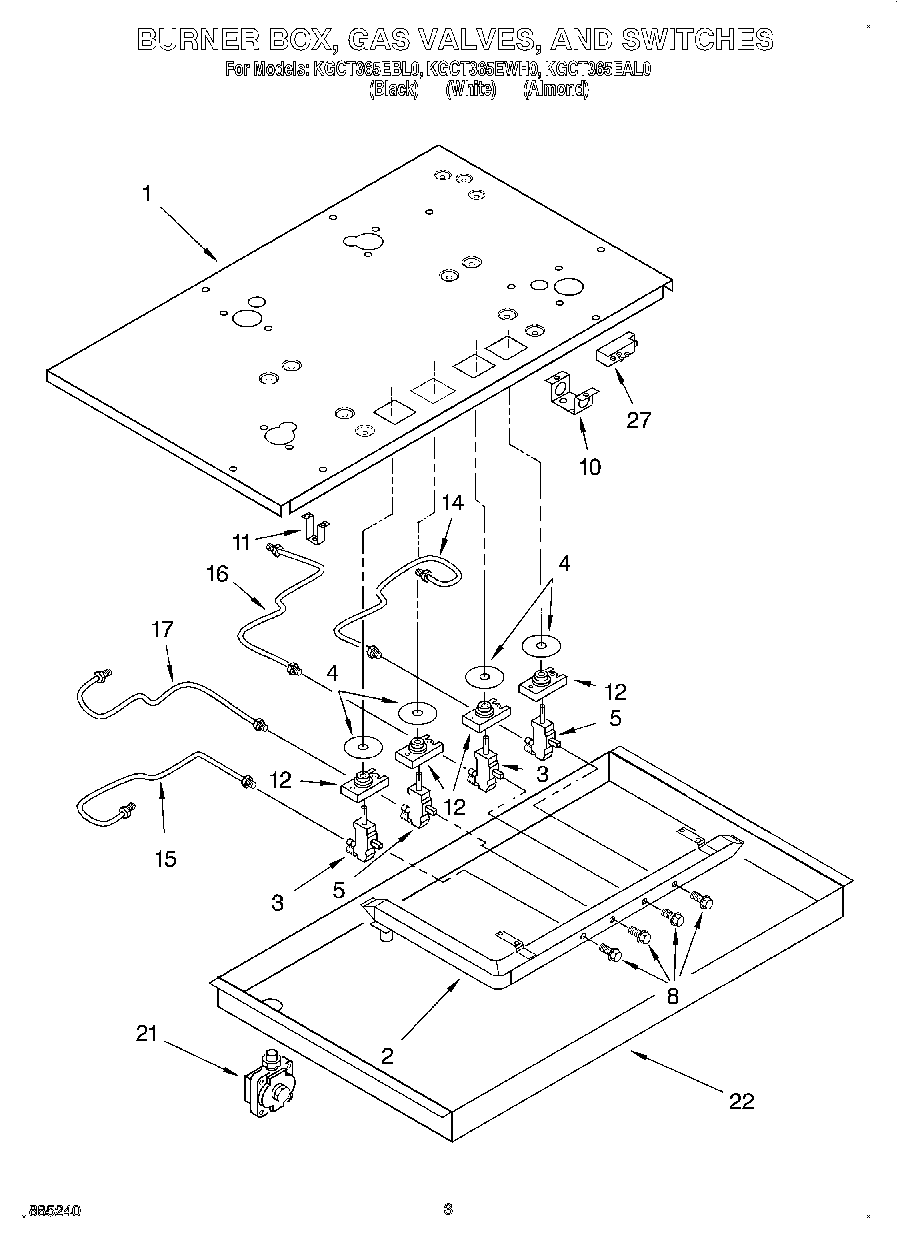

KGCT365EBL0 02 – SECTION

Products

Position	Product
	Wiring Diagram
	Use & Care Guide
	Installation Instructions
1	Backer Plate
2	WP3177991 Whirlpool Screw
2	Pipe, Manifold
3	Valve, Gas Burner (LF, RR, & CR)
4	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (RF & LR)
8	Bolt (Gas Valve)
10	Bracket, Burner (4)
10	Screw
11	Screw (2)
11	Bracket, Burner Box (9)
12	WP3190779 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Gas Burner (RR)
17	Tubing, Small Gas Burner (LR)
21	Regulator, Pressure
22	Burner Box
27	Screw
27	WPW10110491 Whirlpool Spark Module
