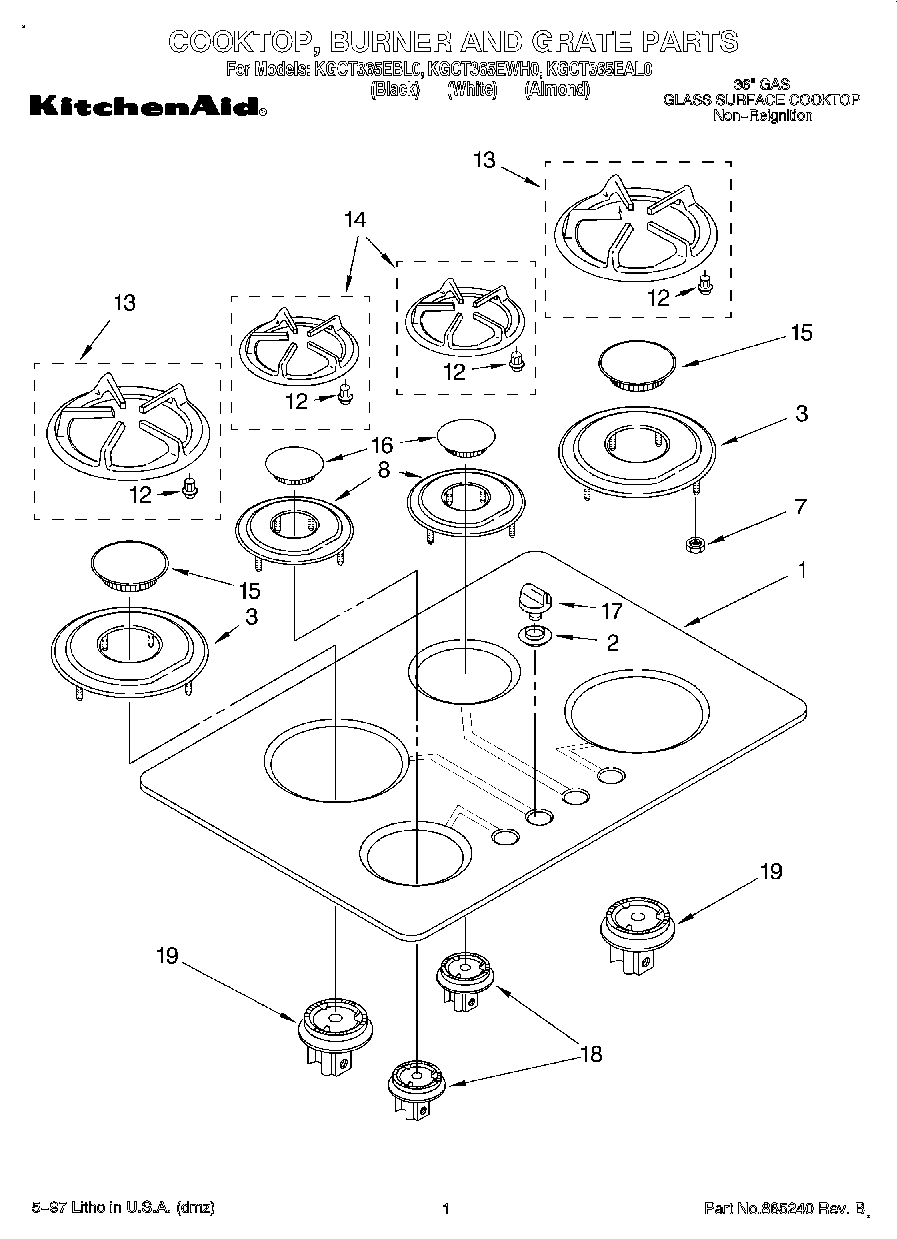

KGCT365EWH0 01 – SECTION

KGCT365EWH0 01 – SECTION

Written by

in

KGCT365EWH0 01 – SECTION

Products

PositionProduct
1Cooktop, Glass (White)
1Cooktop, Glass (Almond)
1Cooktop, Glass (Black)
2W10854241 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
2W10854242 Whirlpool Grommet
3Bezel, Cooktop (Large) (White)
3Bezel, Cooktop (Large) (Black)
3Bezel, Cooktop (Large) (Almond)
7Speed Nut (15)
8Bezel, Cooktop (Small) (White)
8Bezel, Cooktop (Small) (Almond)
8Bezel, Cooktop (Small) (Black)
12814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
13Grate, Large (RF & LR) (Includes No. 12) (Almond)
13Grate, Large (RF & LR) (Includes No. 12) (White)
13Grate, Large (RF & LR) (Includes No. 12) (Black)
14Grate, Small (LF & RR) (Includes No. 12) (Almond Model)
14Grate, Small (LF & RR) (Includes No. 12) (Black Model)
14Grate, Small (LF & RR) (Includes No. 12) (White Model)
15Cap, Rapid Burner Large (2) (Almond)
15Cap, Rapid Burner Large (2) (Black)
15Cap, Rapid Burner Large (2) (White)
16Cap, Semi Rapid Small (2) (Black)
16Cap, Semi Rapid Small (2) (White)
16Cap, Semi Rapid Small (2) (Almond Burner (2))
17WP3182569 Whirlpool Knob
17WP3182568 Whirlpool Control Knob
17WP3182567 Whirlpool Oven Knob
18Burner, Small (2)
19Burner, Large (2)
