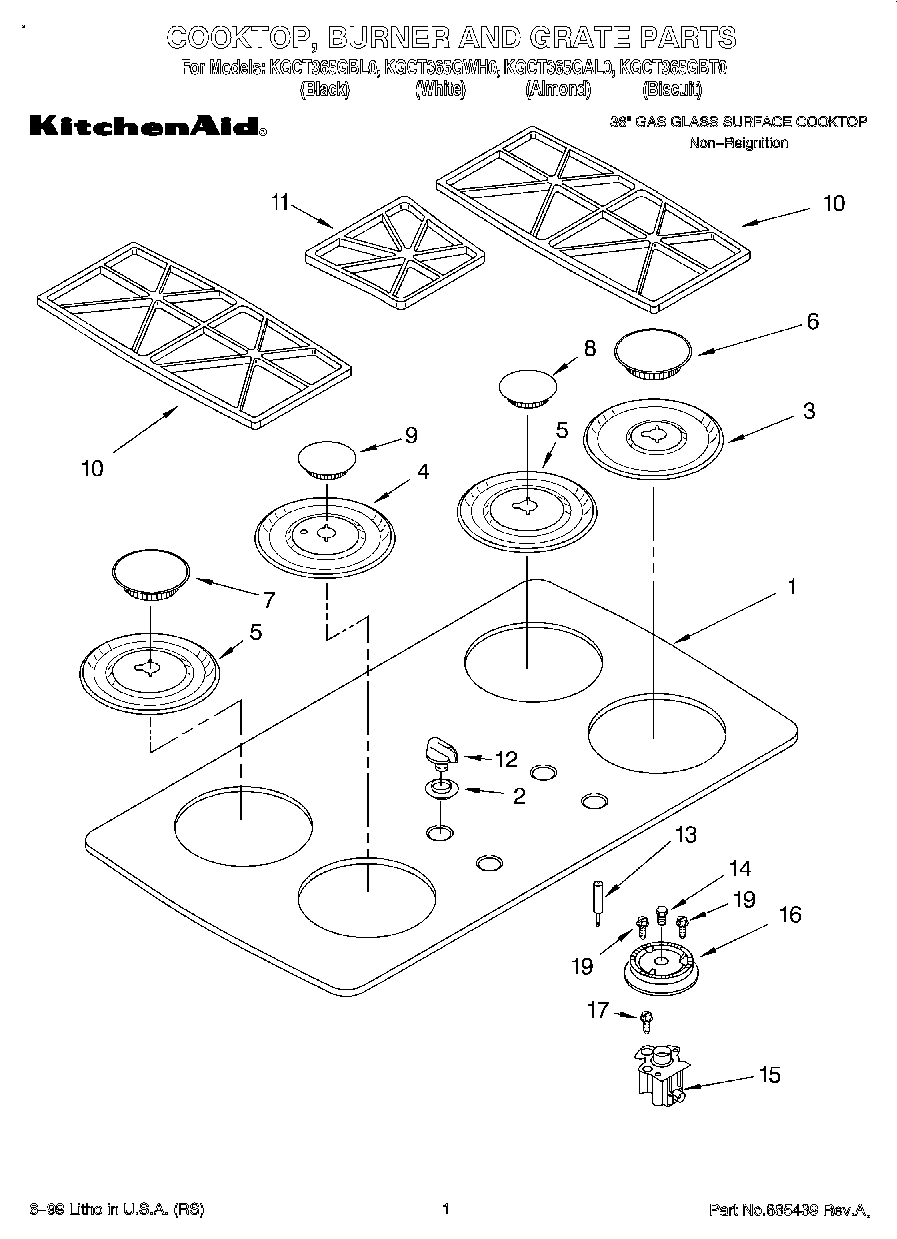

KGCT365GAL0 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (Biscuit)
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (White)
1	Cooktop, Glass (Black)
2	WP3180081 Whirlpool Grommet
2	Grommet, Glass (Biscuit)
2	W10854241 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bowl, Burner 6K (RR) (White)
3	Bowl, Burner 6K (RR) (Biscuit)
3	Bowl, Burner 6K (RR) (Black)
3	Bezel, Cooktop (RF) (Almond)
4	Bezel, Cooktop (LF) (Black)
4	Bezel, Cooktop (LF) (Biscuit)
4	Bezel, Cooktop (LF) (Almond)
4	Bezel, Cooktop (LF) (White)
5	Bezel, Cooktop (LR, RR) (Almond)
5	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
5	Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
5	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
6	Cap, (RF) (LR) (Biscuit)
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
7	WP3191731 Whirlpool Burner Cap
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (White)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Black)
8	Cap, (RR) (White)
9	Cap, (LF) (Black)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
10	Grate, Burner (Biscuit)
10	Grate, Burner (White)
10	Grate, Burner (Black)
11	Grate, Filler (Biscuit)
11	Grate, Filler (White)
11	Grate, Filler (Black)
12	WP3191922 Whirlpool Control Knob
12	WPL 3191923
12	Knob, Control (4) (Almond)
12	WPL 3191925
13	Ignitor
14	WP3192523 Whirlpool Orifice
14	WP9753930 Whirlpool Orifice
14	Orifice (RF)
14	Orifice (Turbi (14k))
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	WPL 3191743
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
16	Head, Burner (14K LF)
16	Head, Burner (RF)
16	Head, Burner (LF)
17	WP3177991 Whirlpool Screw
19	Screw (2)
