KGCT365GAL0 02 – SECTION

Products

PositionProduct
Hardware, Mounting
28“
Screw
Conversion Kit Natural Gas To L.P.
WP3177991 Whirlpool Screw
4173634 Whirlpool Bushing
W10392007 Whirlpool Power Cord
Use & Care Guide
Seal, Foam-Cooktop
Nut, Tinnerman (2)
8186533 Whirlpool Hardware
Wiring Diagram
Installation Instructions

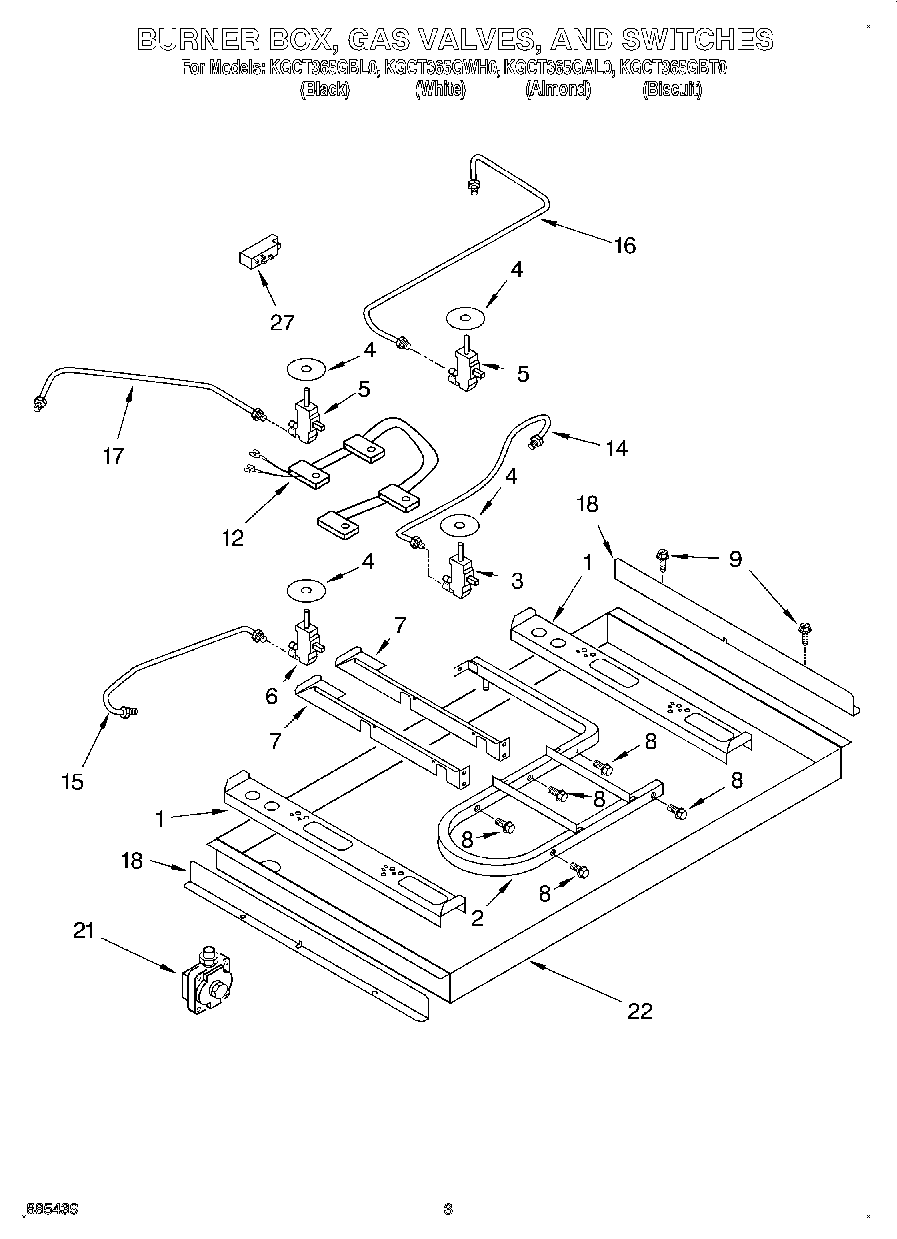

15“
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt, Gas Valve
12WP3191334 Whirlpool Wire Harness
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WP8053421 Whirlpool Oven Spark Module
