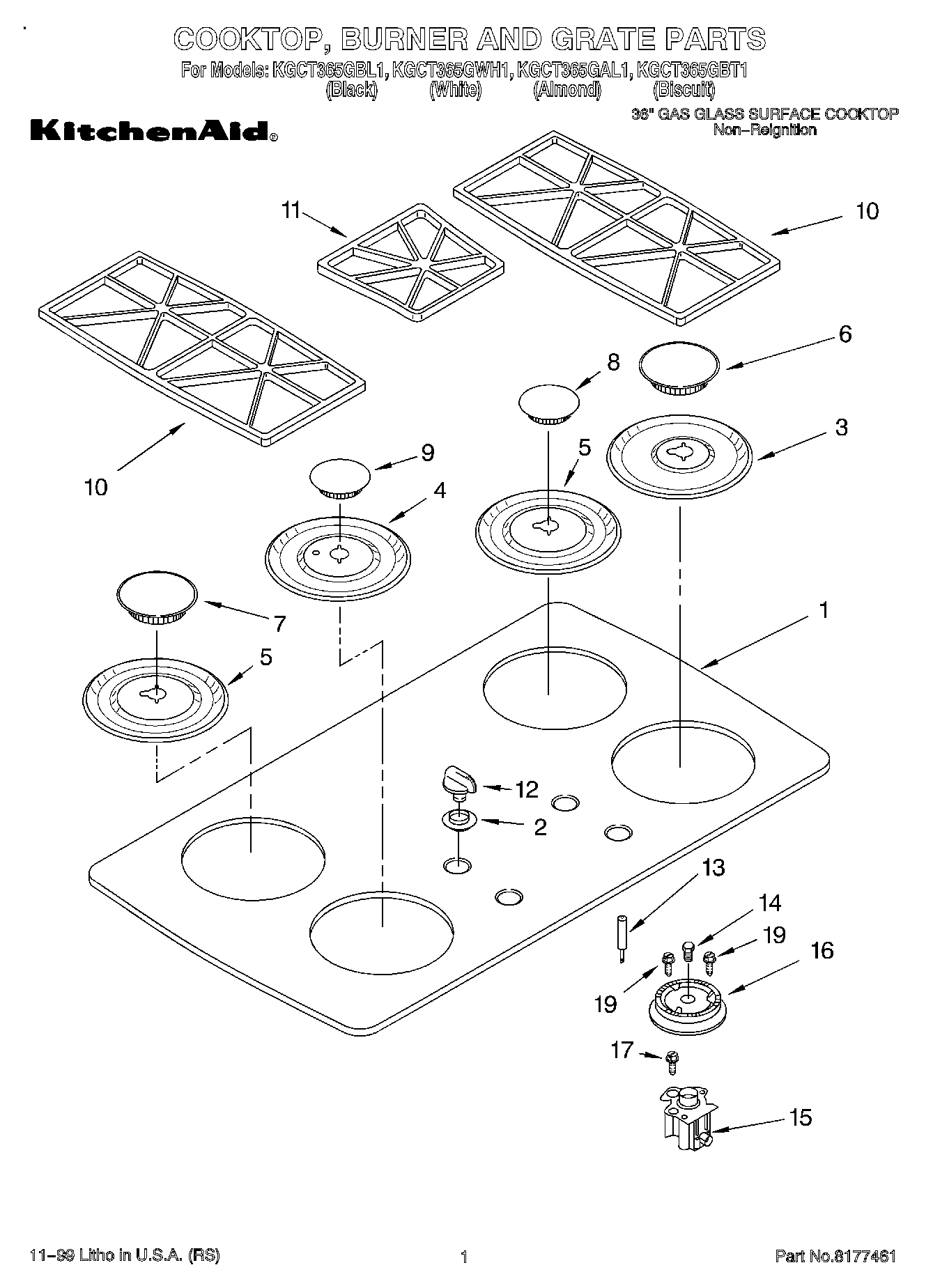

KGCT365GBL1 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (White)
1	Cooktop, Glass (Black)
1	Cooktop, Glass (Biscuit)
2	Grommet, Glass (Biscuit)
2	W10854241 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bezel, Cooktop (RF) (Almond)
3	Bowl, Burner 6K (RR) (Biscuit)
3	Bowl, Burner 6K (RR) (Black)
3	Bowl, Burner 6K (RR) (White)
4	Bezel, Cooktop (LF) (Biscuit)
4	Bezel, Cooktop (LF) (Almond)
4	Bezel, Cooktop (LF) (Black)
4	Bezel, Cooktop (LF) (White)
5	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
5	Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
5	Bezel, Cooktop (LR, RR) (Almond)
5	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
6	Cap, (RF) (LR) (Biscuit)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Black)
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (White)
7	WP3191731 Whirlpool Burner Cap
8	Cap, (RR) (White)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Black)
9	Cap, (LF) (Black)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
10	Grate, Burner (Biscuit)
10	Grate, Burner (White)
10	Grate, Burner (Black)
11	Grate, Filler (Biscuit)
11	Grate, Filler (White)
11	Grate, Filler (Black)
12	WPL 3191925
12	WPL 3191923
12	Knob, Control (4) (Almond)
12	WP3191922 Whirlpool Control Knob
13	WP9754215 Whirlpool Surface Igniter
14	Orifice (Turbi (14k))
14	WP3192523 Whirlpool Orifice
14	WP9753930 Whirlpool Orifice
14	Orifice (RF)
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Orifice Holder (Turbi)
16	Head, Burner (14K – LF)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
17	WP3177991 Whirlpool Screw
19	Screw (2)
