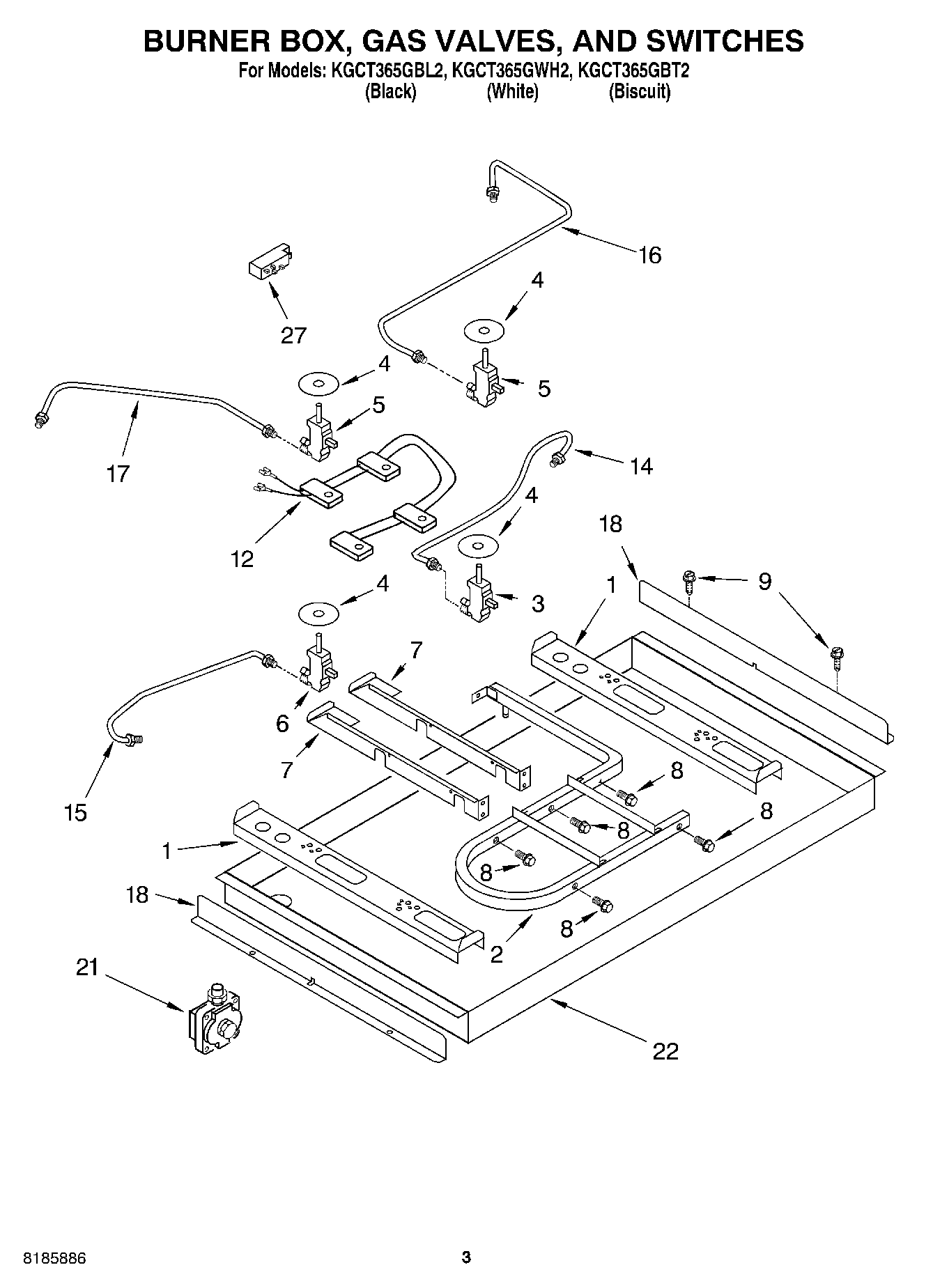

KGCT365GBL2 02 – SECTION

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
2	3192491 Whirlpool Support Bracket
2	W10491985 Whirlpool Screw
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
7	WP4449809 Whirlpool Screw
8	Bolt (Gas Valve)
12	WP3191334 Whirlpool Wire Harness
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	28“
27	Hardware, Mounting
27	Seal, Foam-Cooktop
27	8186533 Whirlpool Hardware
27	Nut, Tinnerman (2)
27	W10392007 Whirlpool Power Cord
27	4173634 Whirlpool Bushing
27	WP3177991 Whirlpool Screw
27	WP12990527 Whirlpool Microwave Screw
27	15“
27	WPW10110491 Whirlpool Spark Module
27	WP3192741 Whirlpool LP Conversion Kit
