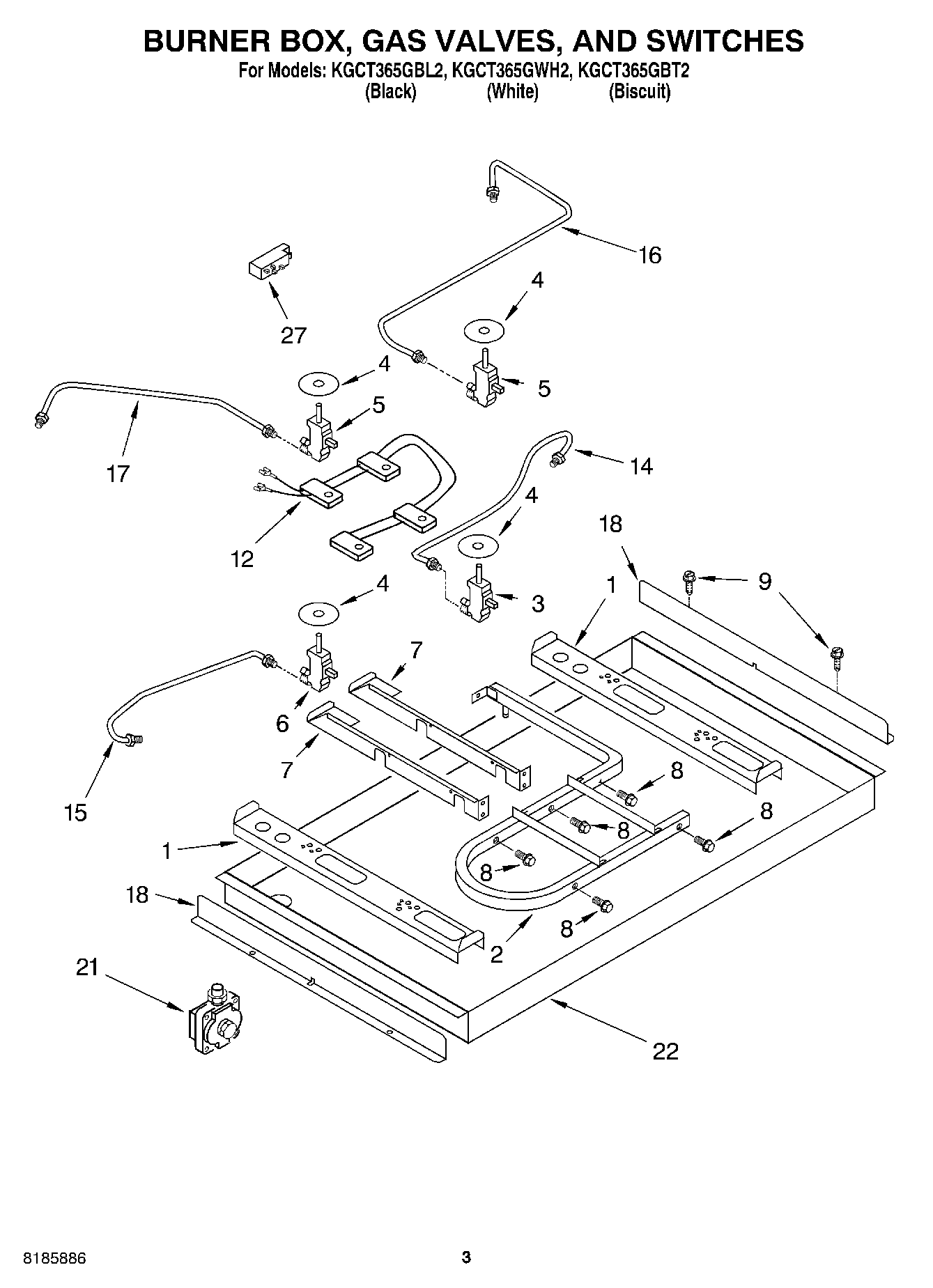

KGCT365GBT2 02 – SECTION

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
23192491 Whirlpool Support Bracket
2W10491985 Whirlpool Screw
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
7WP4449809 Whirlpool Screw
8Bolt (Gas Valve)
12WP3191334 Whirlpool Wire Harness
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
2728“
27Hardware, Mounting
27Seal, Foam-Cooktop
278186533 Whirlpool Hardware
27Nut, Tinnerman (2)
27W10392007 Whirlpool Power Cord
274173634 Whirlpool Bushing
27WP3177991 Whirlpool Screw
27WP12990527 Whirlpool Microwave Screw
2715“
27WPW10110491 Whirlpool Spark Module
27WP3192741 Whirlpool LP Conversion Kit
