KGCT365TBL0 05 – SPARK MODULE AND WIRING HARNESS

KGCT365TBL0 05 – SPARK MODULE AND WIRING HARNESS

Written by

in

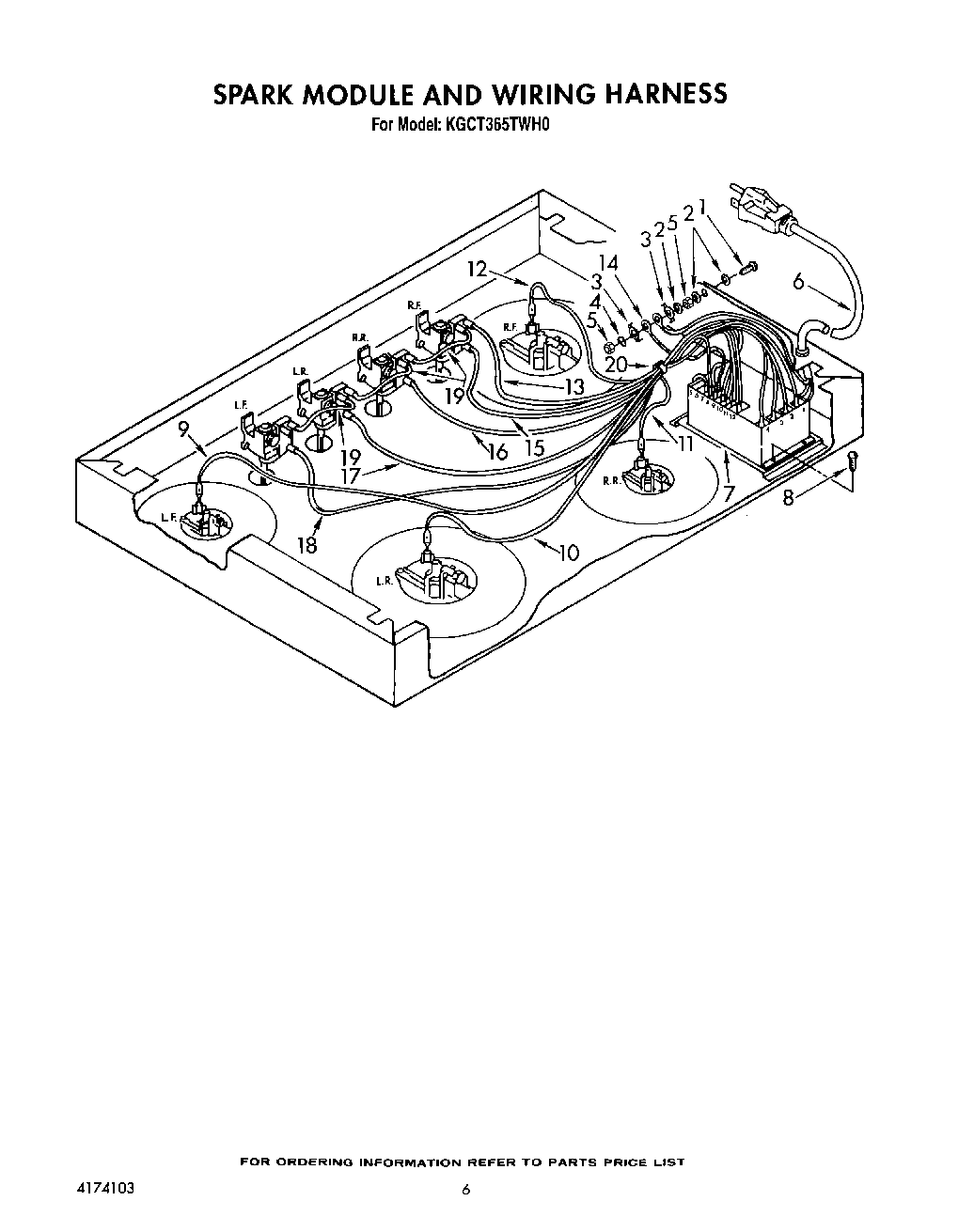

KGCT365TBL0 05 – SPARK MODULE AND WIRING HARNESS

Products

PositionProduct
1Screw, Grounding
2Washer, Internal Tooth Grounding
3Clamp, Washer (Copper)
4Washer, Coil Spring
5Nut, Hex (Brass)
6Cord, Power
7WP4454392 Whirlpool Spark Module
8Screw, Spark Module (3)
9Wire Assembly No.1 (White) (Spark Module to LF Jet Lighter Electrode)
10Wire Assembly No.2 (White) (Spark Module to LR Jet Lighter Electrode)
11Wire Assembly No.3 (White) (Spark Module to RR Jet Lighter Electrode)
12Wire Assembly No.2 (White) (Spark Module to LR Jet Lighter Electrode)
13Wire Assembly No.7 (Black) (Spark Module to RF Burner Switch)
14Wire Assembly No.8 (Green/Yellow) (Spark Module to Ground)
15Wire Assembly No.9 (Red) (Spark Module to RF Burner Switch
17Wire Assembly No.11 (Red) (Spark Module To LR Burner Switch)
18Wire Assembly No.12 (Red) (Spark Module to LF Burner Switch)
19Wire Assembly No.13 14, and 15 (Black) (Loop Wires for Burner Switches)
20Tie, Cable (Harness Wires)
