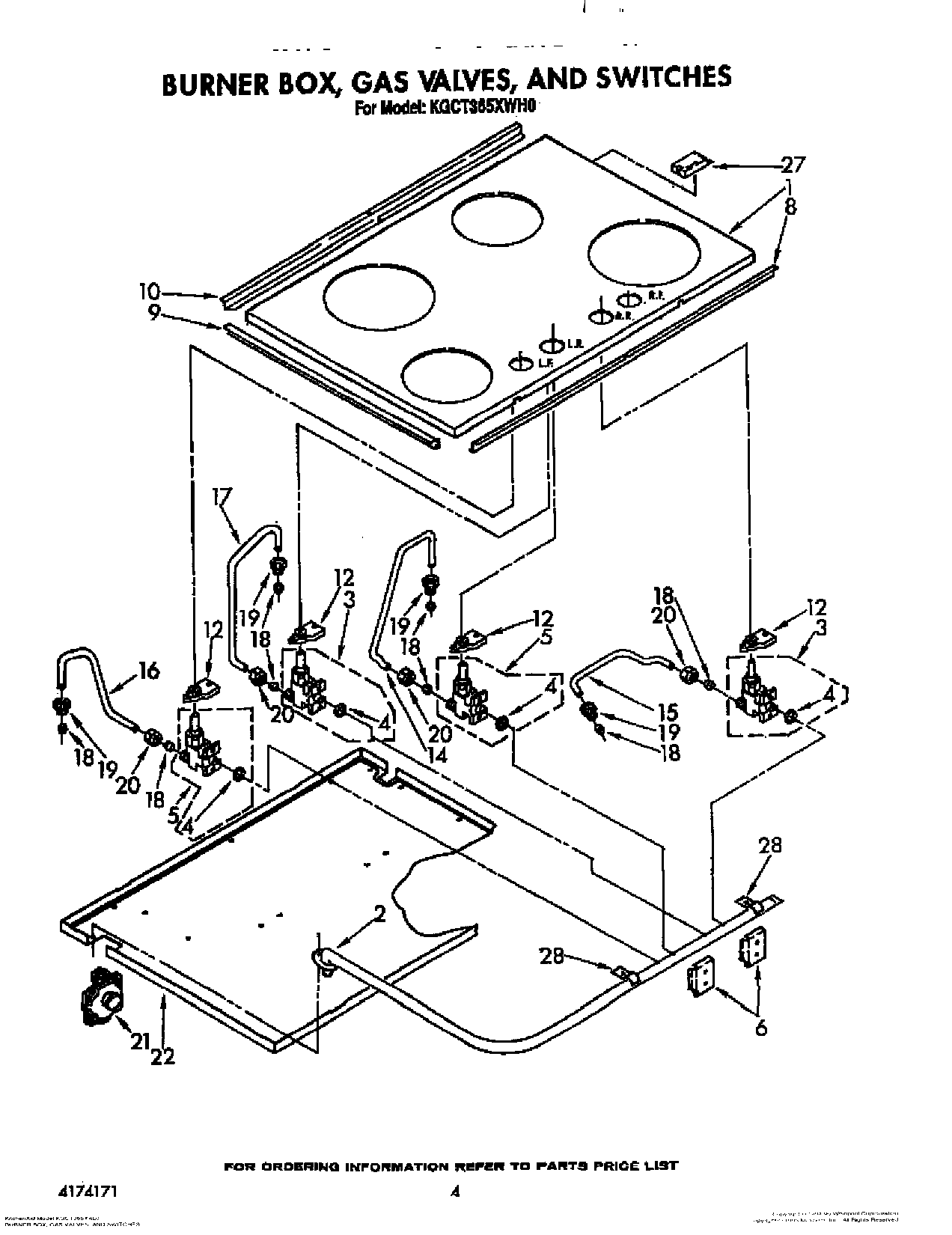

KGCT365XAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Repair Parts List
	WPL LIT3177316
	Use & Care Guide
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing Washer (4)
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
6	Bracket, Clamp (4) (Gas Valve)
6	Screw (8)
8	Frame, Front
9	Frame, Side (2)
10	Frame, Rear
12	WP3185427 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
18	Sleeving, Gas Tube (8)
19	Nut, Gas Tubing (Burner End) 4
20	Nut, Gas Tubing (Gas Valve End) 4
21	Regulator, Pressure
22	Cover, Burner Box
27	WP4454392 Whirlpool Spark Module
27	Screw (4)
28	WP90767 Whirlpool Screw
28	Clamp, Manifold
