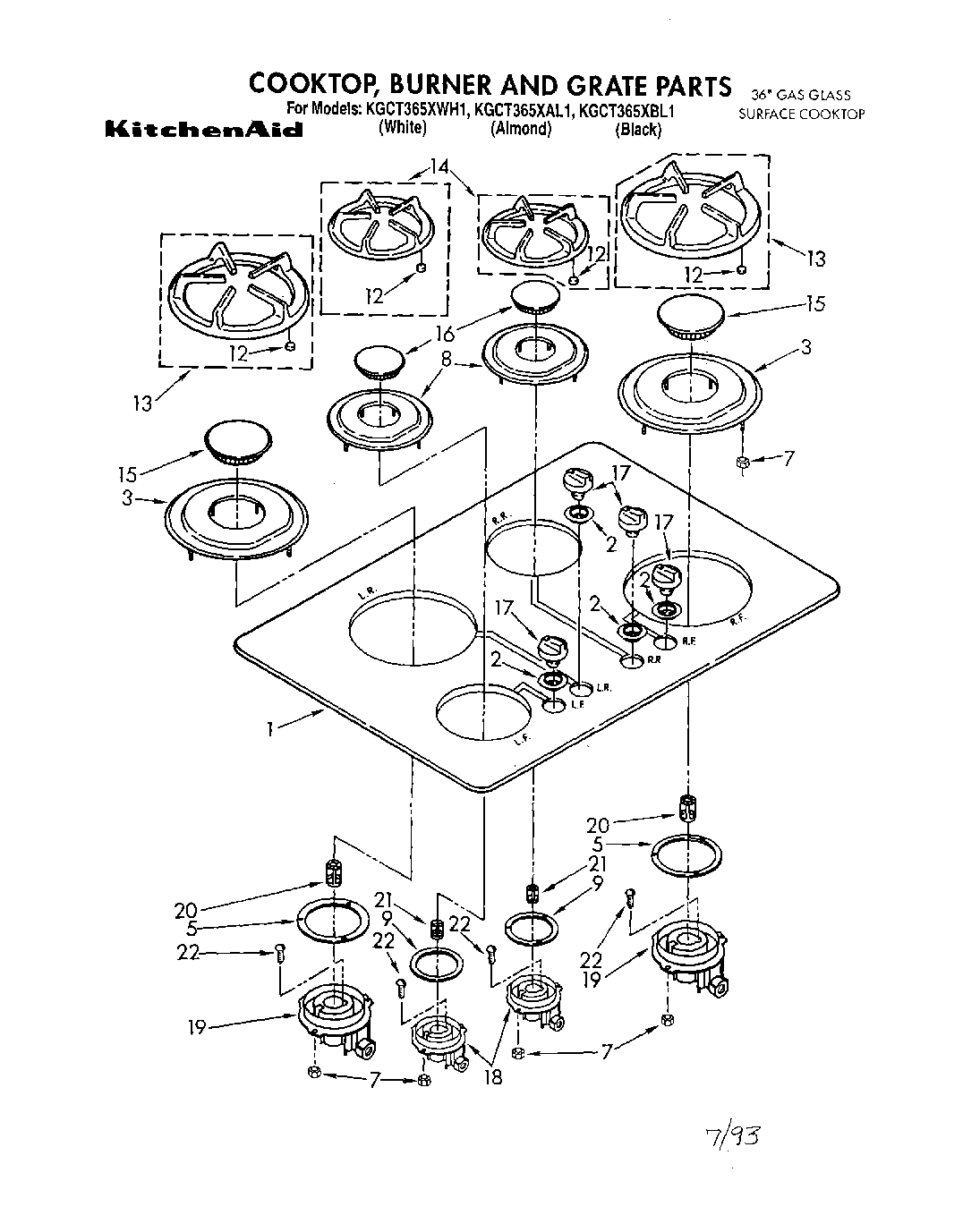

KGCT365XAL1 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (Black)
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (White)
2	W10854241 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bezel, Large (Shadow White (KGCT205YWH1))
3	Bezel, Large (Dark Taupe (KGCT025YAL1))
3	Bezel, Large (Black (KGCT025YBL1))
5	Gasket, Burner (Large)
7	Nut (4)
8	Bezel, Small (Shadow White (KGCT025YWH1))
8	Bezel, Small (Dark Taupe (KGCT025YAL1))
8	Bezel, Small (Black (KGCT025YBL1))
9	Gasket, Burner (Small)
12	WPL 4173550
13	Grate, Large (RF & LR) (Black)
13	Grate, Large (RF & LR) (Includes No.12) (Shadow Grey (KGCT305XWH0))
13	Grate, Large Burner (Dark Taupe (KGCT025YAL0))
14	Grate, Burner Small (Dark Taupe (KGCT025YAL0
14	Grate (Small) L.F.& R.R. (Includes No.12) (Shadow Grey (KGCT305XWH0))
14	Grate (Small) (LF & RR) (Black)
15	Cap, Large Burner (Black (KGCT025YBL1))
15	WPL 3180084
15	Cap, Large Burner (Dark Taupe (KGCT025YAL0))
16	Cap, Burner Small (Black (KGCT025YBL1))
16	Cap, Burner Small (Dark Taupe (KGCT025YAL0))
16	Cap, Semi
17	WP3181306 Whirlpool Knob
17	WP3181305 Whirlpool Knob
17	WP3181304 Whirlpool Knob Assembly
18	WPL ARI87707A9
19	WPL ARI87708A3
20	WPL ARI87709A5
21	WPL ARI87710A1
22	Screw, Burner
