KGCT365XAL3 03 – SECTION

Products

Position	Product
	WPL LIT4174296
	Harness, Wire Sealed Gas Cooktop
	Wire Assy. Red 16“ Spark Module Term.1 To Left Front Burner Term.1
	WPL 4169261
	WPL 4175444
	Wire Assy. GRD.
	Wire Assy. White 12“ Spark Module Term.2 To Left Right Burner Term.1
	Wire Assy. Red 24“ Spark Module Term.12 To Left Front Burner Switch
	Wire Assy. White 18.5“ Spark Mo
	WPL 3185777
	WPL 3185778
	Use & Care Guide
	Hardware, Mounting
	Screw, (2)
	Wire Assy. Yellow 35“ Spark Module Term.4 To Right Front Burner Term.1
	WPL LIT3185782
	seal, foam tape
	WPL 3179589
	Wire Assy. Blue 29“ Spark Module Term.3 To Right Rear Burner Term.1

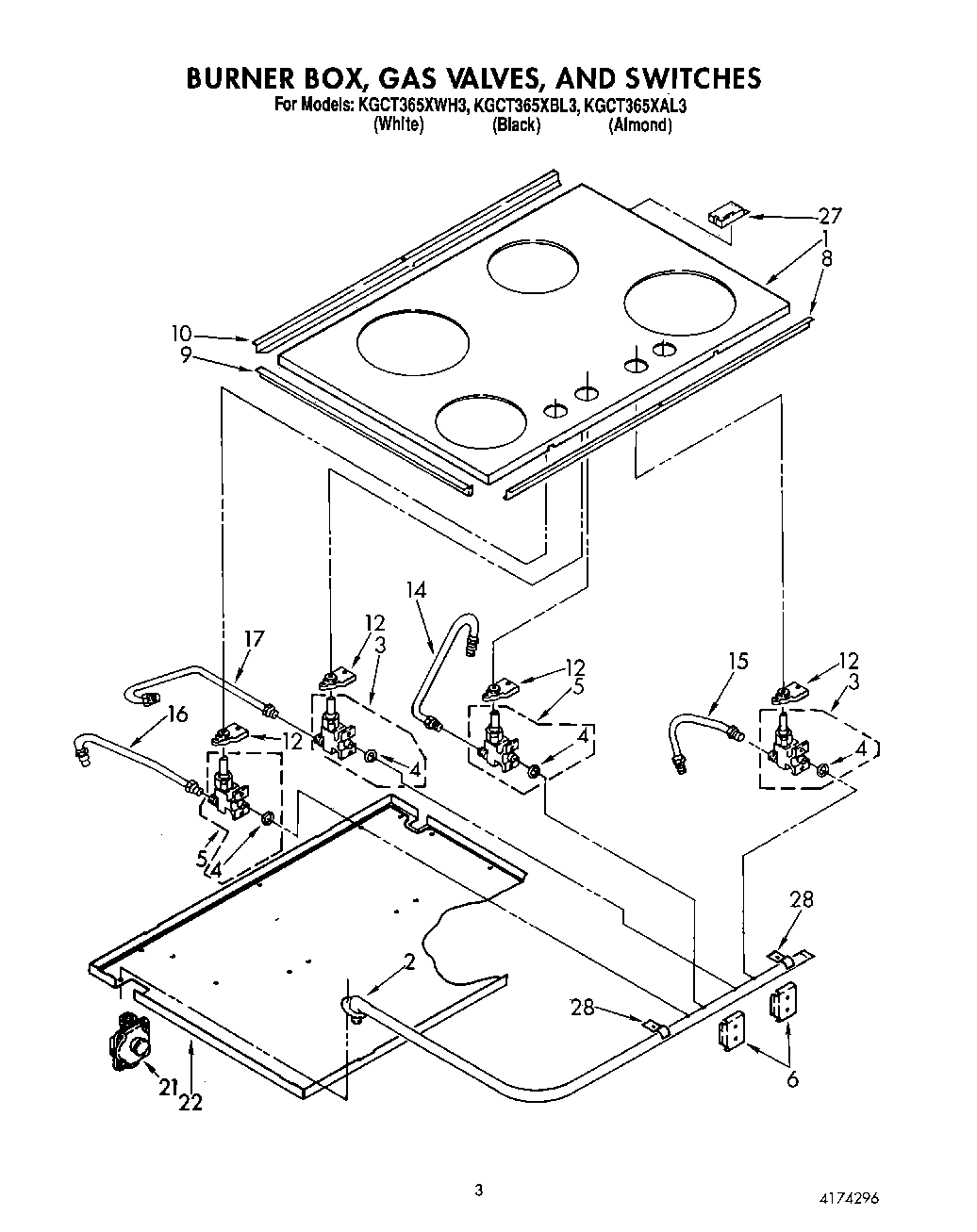

1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing Washer (4)
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
5	WP3188425 Whirlpool Seal Switch
5	WP965173 Whirlpool Dishwasher Screw
6	Screw (8)
6	Bracket, Clamp (4) (Gas Valve)
8	Frame, Front
9	Frame, Side (2)
10	Frame, Rear
12	WP3185427 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Cover, Burner Box
27	WP4454392 Whirlpool Spark Module
28	Screw
28	screw (3)
28	Clamp, Manifold
