KGCT365XBL1 01 – SECTION

KGCT365XBL1 01 – SECTION

Written by

in

KGCT365XBL1 01 – SECTION

Products

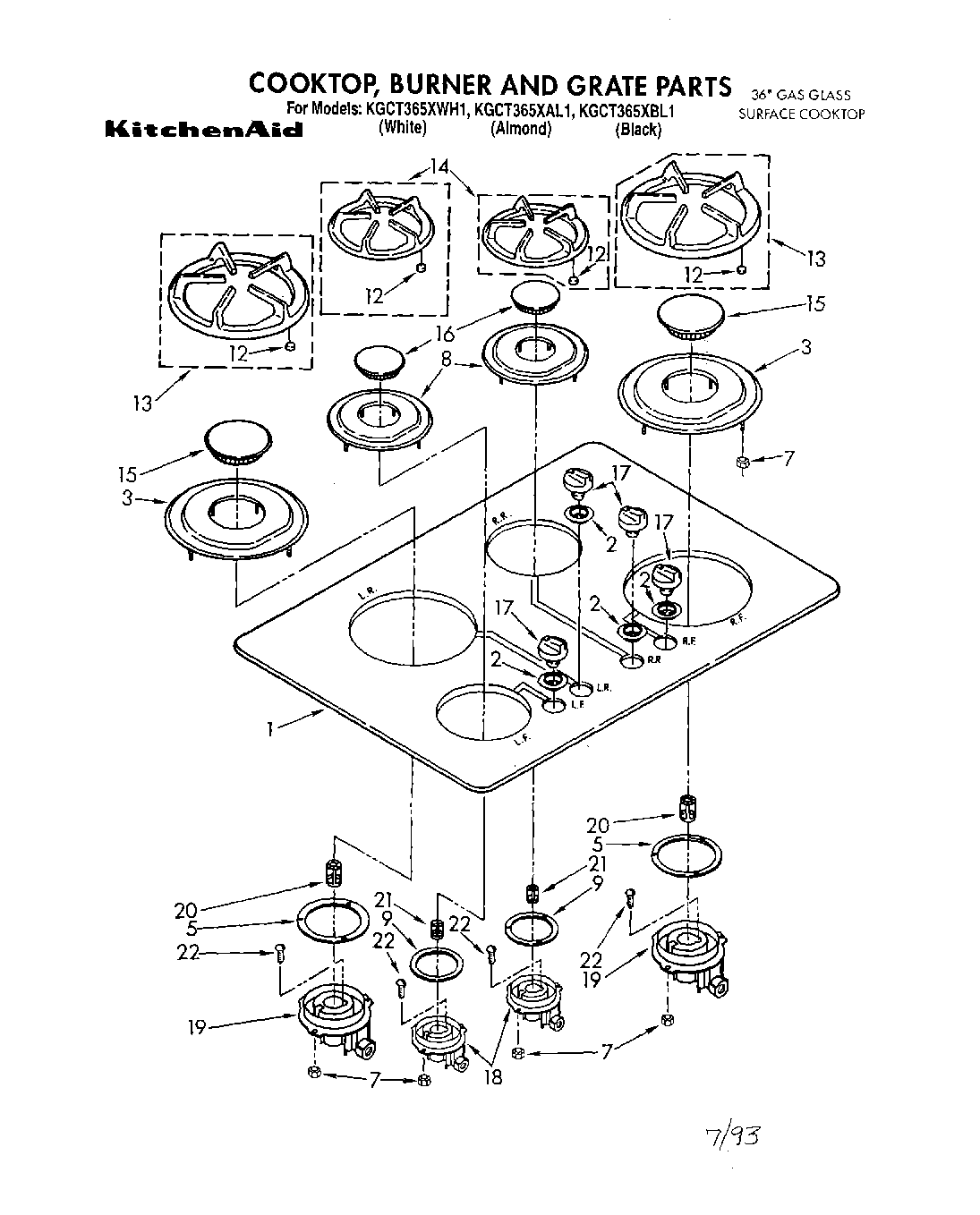

PositionProduct
1Cooktop, Glass (Black)
1Cooktop, Glass (Almond)
1Cooktop, Glass (White)
2W10854241 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
2W10854242 Whirlpool Grommet
3Bezel, Large (Shadow White (KGCT205YWH1))
3Bezel, Large (Dark Taupe (KGCT025YAL1))
3Bezel, Large (Black (KGCT025YBL1))
5Gasket, Burner (Large)
7Nut (4)
8Bezel, Small (Shadow White (KGCT025YWH1))
8Bezel, Small (Dark Taupe (KGCT025YAL1))
8Bezel, Small (Black (KGCT025YBL1))
9Gasket, Burner (Small)
12WPL 4173550
13Grate, Large (RF & LR) (Black)
13Grate, Large (RF & LR) (Includes No.12) (Shadow Grey (KGCT305XWH0))
13Grate, Large Burner (Dark Taupe (KGCT025YAL0))
14Grate, Burner Small (Dark Taupe (KGCT025YAL0
14Grate (Small) L.F.& R.R. (Includes No.12) (Shadow Grey (KGCT305XWH0))
14Grate (Small) (LF & RR) (Black)
15Cap, Large Burner (Black (KGCT025YBL1))
15WPL 3180084
15Cap, Large Burner (Dark Taupe (KGCT025YAL0))
16Cap, Burner Small (Black (KGCT025YBL1))
16Cap, Burner Small (Dark Taupe (KGCT025YAL0))
16Cap, Semi
17WP3181306 Whirlpool Knob
17WP3181305 Whirlpool Knob
17WP3181304 Whirlpool Knob Assembly
18WPL ARI87712A8
19WPL ARI87713A1
20WPL ARI87714A4
21WPL ARI87715A9
22Screw, Burner
