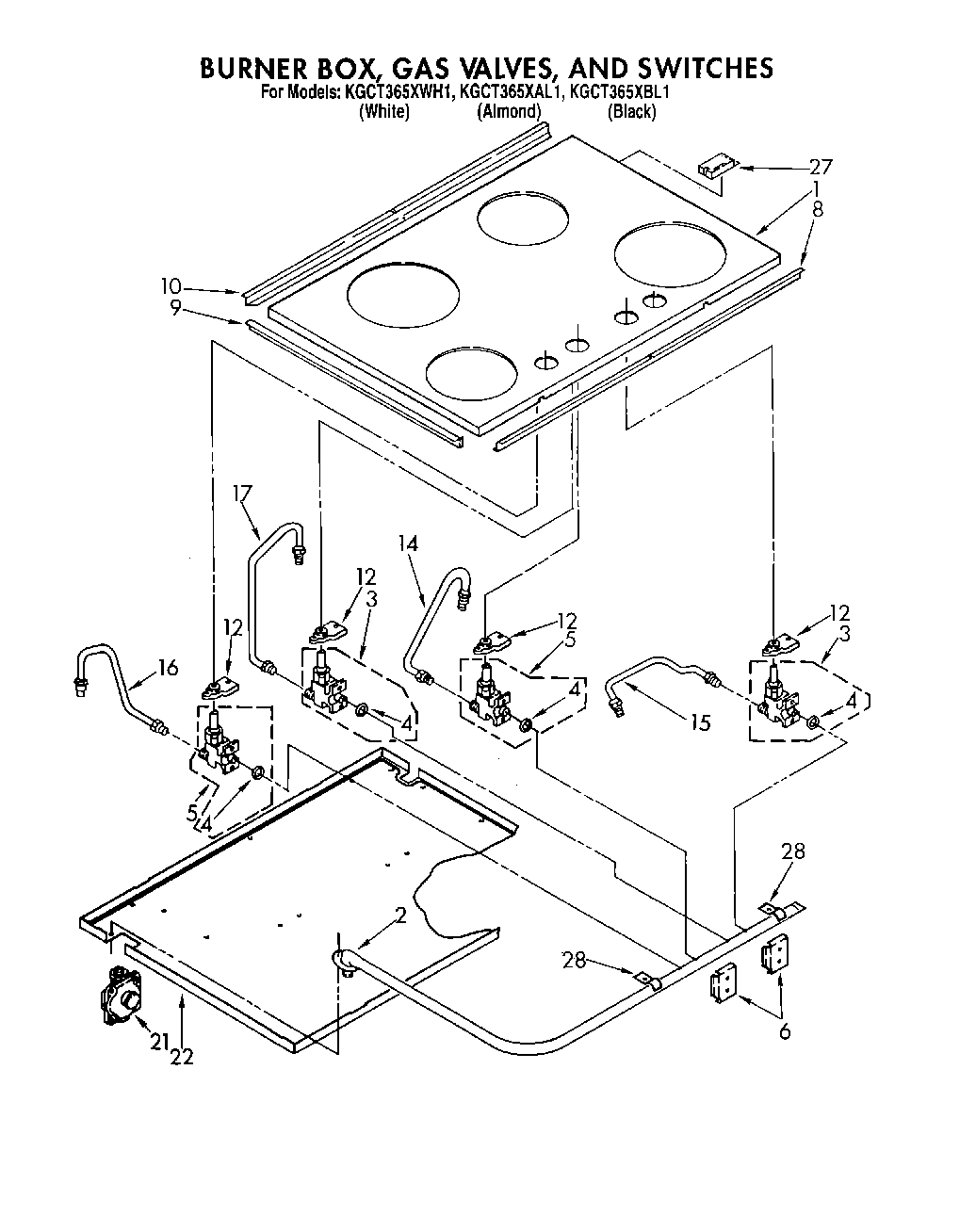

KGCT365XBL1 03 – SECTION

Products

Position	Product
	WPL 3185253
	WPL 4169261
	WPL 4175444
	WPL LIT3177316
	Wire Assy. GRD.
	Use & Care Guide
	WPL LIT4174185
	Tape, Foam (106“)
	Wire Assy. White 12“ Spark Module Term.2 To Left Right Burner Term.1
	Wire Assy. Blue 29“ Spark Module Term.3 To Right Rear Burner Term.1
	Wire Assy. Yellow 35“ Spark Module Term.4 To Right Front Burner Term.1
	Wire Assy. White 20.5“
	WPL 3185251
	Wire Assy. Yellow 18“ Spark Module Term.11 To Left Rear Burner Switch
	Wire Assy. Red 16“ Spark Module Term.1 To Left Front Burner Term.1
	Screw, (2)
	seal, foam tape
	WPL 3179589
	Hardware, Mounting
	Harness, Wire Sealed Gas Cooktop
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing Washer (4)
5	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
6	Screw (8)
6	Bracket, Clamp (4) (Gas Valve)
8	Frame, Front
9	Frame, Side (2)
10	Frame, Rear
12	WP3185427 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Cover, Burner Box
27	Screw (4)
27	WP4454392 Whirlpool Spark Module
28	Screw
28	screw (3)
28	Clamp, Manifold
