KGCT365XBL2 03 – SECTION

Products

Position	Product
	WPL 3185253
	Hardware, Mounting
	Use & Care Guide
	Harness, Wire Sealed Gas Cooktop
	Wire Assy. Red 16“ Spark Module Term.1 To Left Front Burner Term.1
	Wire Assy. Yellow 18“ Spark Module Term.11 To Left Rear Burner Switch
	WPL 4169261
	WPL 4175444
	WPL LIT3177316
	Wire Assy. GRD.
	Wire Assy. White 12“ Spark Module Term.2 To Left Right Burner Term.1
	WPL 3185251
	Screw, (2)
	Wire Assy. White 20.5“
	Wire Assy. Yellow 35“ Spark Module Term.4 To Right Front Burner Term.1
	WPL LIT4174226
	seal, foam tape
	WPL 3179589
	Wire Assy. Blue 29“ Spark Module Term.3 To Right Rear Burner Term.1

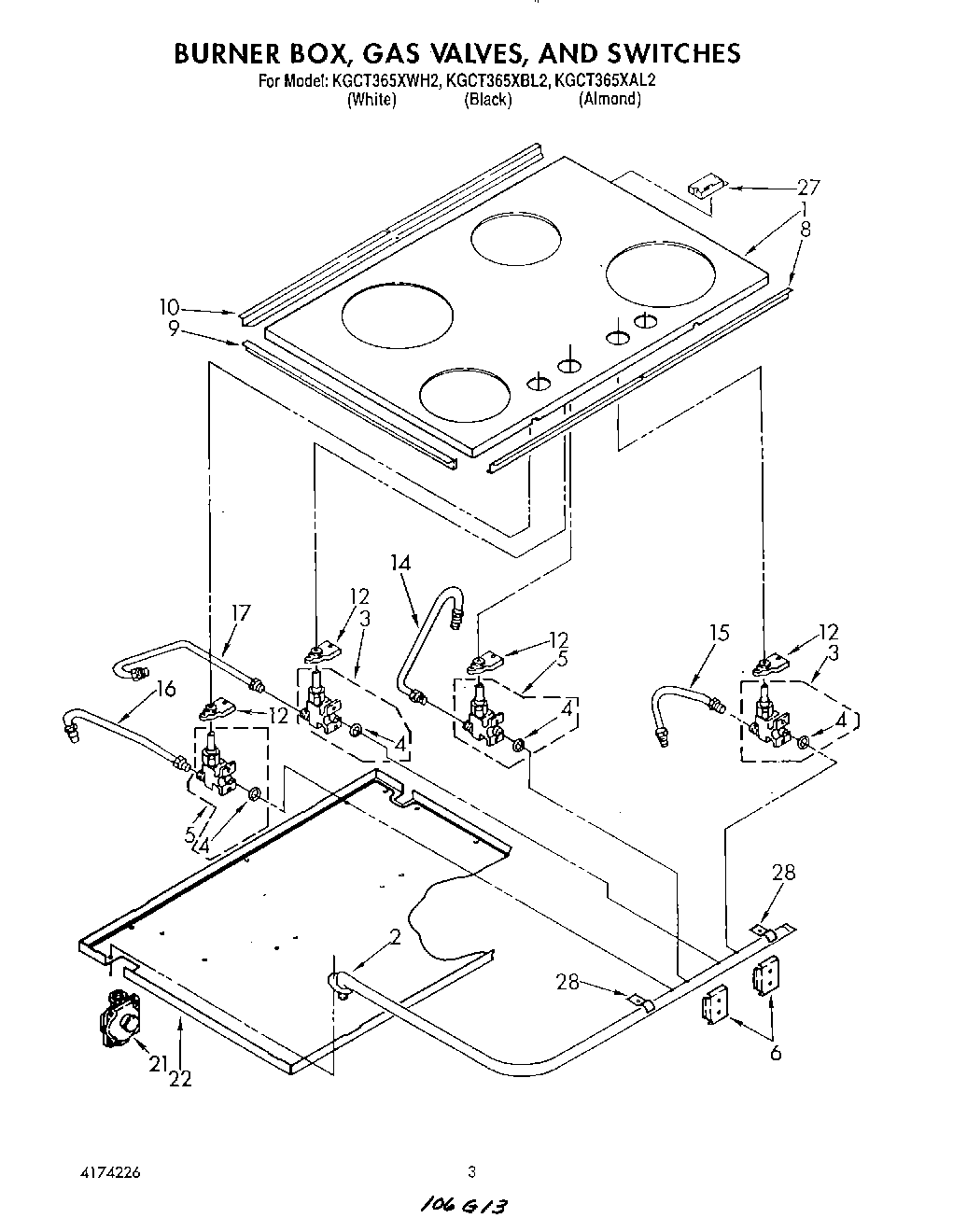

1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing Washer (4)
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
5	WP3188425 Whirlpool Seal Switch
6	Bracket, Clamp (4) (Gas Valve)
6	Screw (8)
8	Frame, Front
9	Frame, Side (2)
10	Frame, Rear
12	WP3185427 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Cover, Burner Box
27	WP4454392 Whirlpool Spark Module
27	Screw (4)
28	Screw
28	screw (3)
28	Wire Shield
28	Clamp, Manifold
