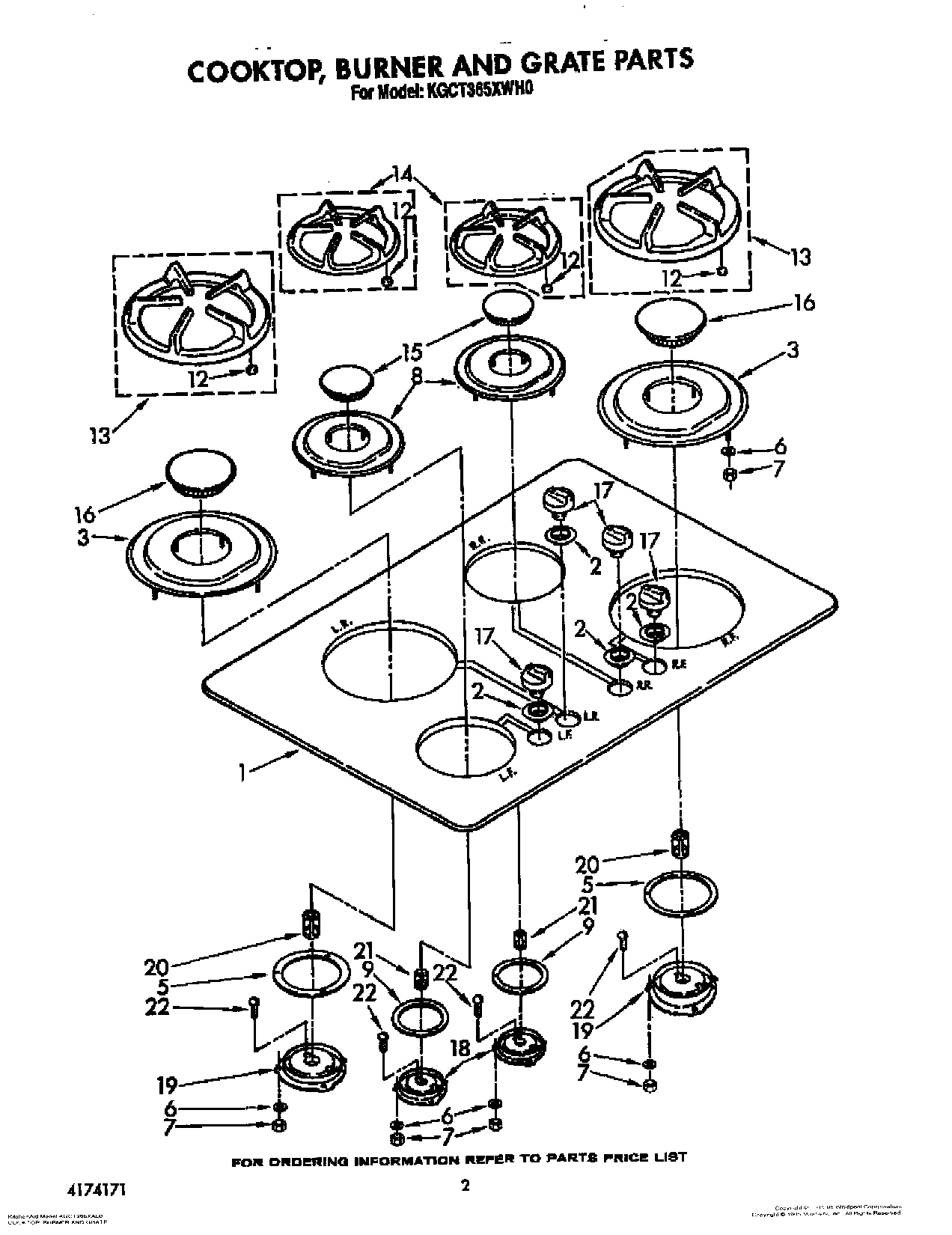

KGCT365XWH0 02 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop, Glass (White)
1	Cooktop, Glass (Black)
1	Cooktop, Glass (Almond)
2	WP3180081 Whirlpool Grommet
2	W10854241 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bezel, Large (Shadow White (KGCT205YWH1))
3	Bezel, Large (Black (KGCT025YBL1))
3	Bezel, Large (Dark Taupe (KGCT025YAL1))
5	Gasket, Burner (Large)
6	4159493 Whirlpool Lockwasher
7	Nut, Mounting
8	Bezel, Small (Black (KGCT025YBL1))
8	Bezel, Small (Shadow White (KGCT025YWH1))
8	Bezel, Small (Dark Taupe (KGCT025YAL1))
9	Gasket, Burner (Small)
12	WPL 4173550
13	Grate, Large (RF & LR) (Includes No.12) (Shadow Grey (KGCT305XWH0))
13	Grate, Large (RF & LR) (Black)
13	Grate, Large Burner (Dark Taupe (KGCT025YAL0))
14	Grate (Small) (LF & RR) (Black)
14	Grate, Burner Small (Dark Taupe (KGCT025YAL0
14	Grate (Small) L.F.& R.R. (Includes No.12) (Shadow Grey (KGCT305XWH0))
15	WPL 3180084
15	Cap, Large Burner (Dark Taupe (KGCT025YAL0))
15	Cap, Large Burner (Black (KGCT025YBL1))
16	Cap, Semi
16	Cap, Burner Small (Dark Taupe (KGCT025YAL0))
16	Cap, Burner Small (Black (KGCT025YBL1))
17	WP3181305 Whirlpool Knob
17	WP3181304 Whirlpool Knob Assembly
17	WP3181306 Whirlpool Knob
18	Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11))
19	Sealed Gas Burner Kit (Large Burner)
20	Shutter, Air (Large Shutter)
21	Shutter, Air (Small Shutter)
22	Screw, Burner
