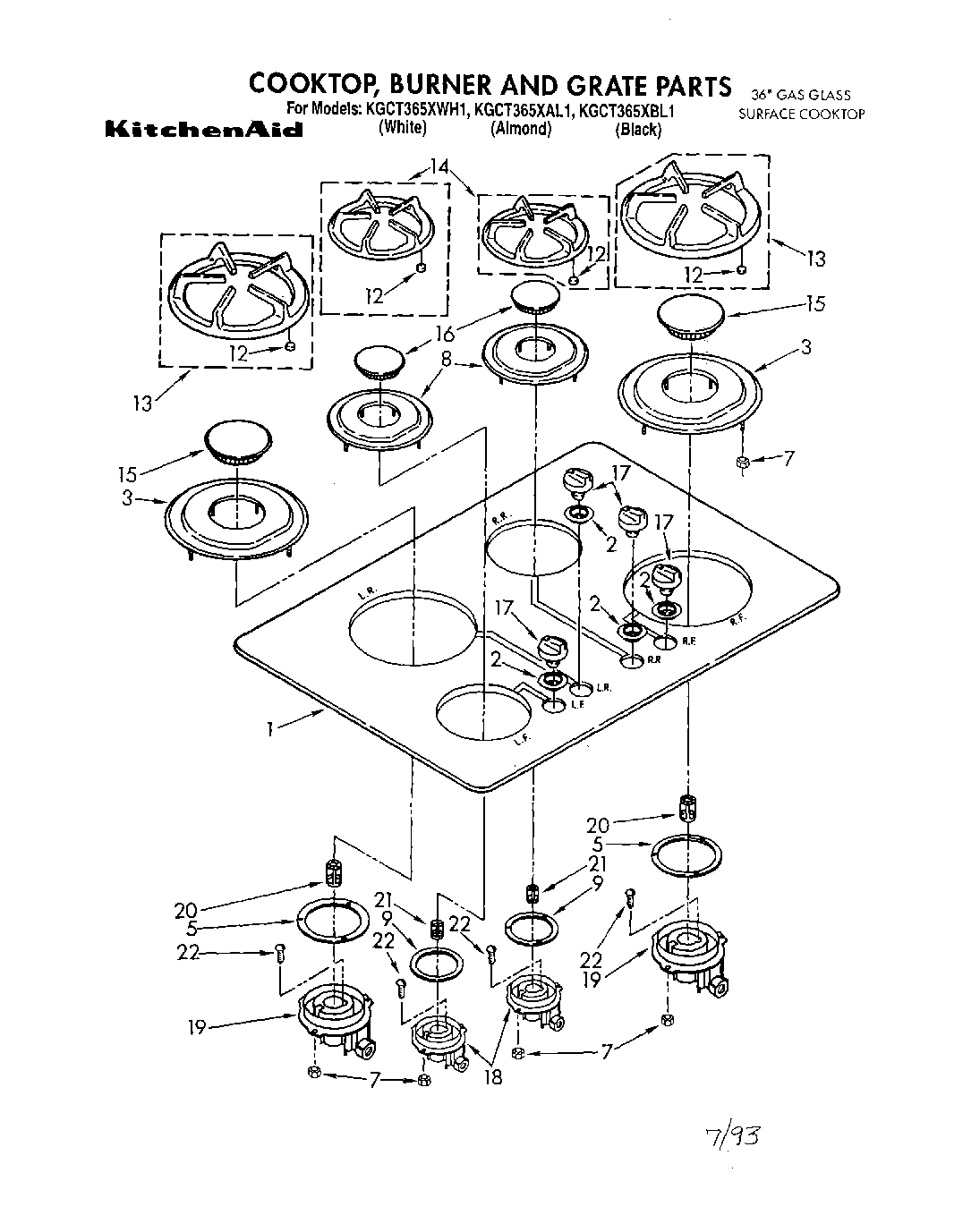

KGCT365XWH1 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (Black)
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (White)
2	W10854241 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bezel, Large (Shadow White (KGCT205YWH1))
3	Bezel, Large (Dark Taupe (KGCT025YAL1))
3	Bezel, Large (Black (KGCT025YBL1))
5	Gasket, Burner (Large)
7	Nut (4)
8	Bezel, Small (Shadow White (KGCT025YWH1))
8	Bezel, Small (Dark Taupe (KGCT025YAL1))
8	Bezel, Small (Black (KGCT025YBL1))
9	Gasket, Burner (Small)
12	WPL 4173550
13	Grate, Large (RF & LR) (Black)
13	Grate, Large (RF & LR) (Includes No.12) (Shadow Grey (KGCT305XWH0))
13	Grate, Large Burner (Dark Taupe (KGCT025YAL0))
14	Grate, Burner Small (Dark Taupe (KGCT025YAL0
14	Grate (Small) L.F.& R.R. (Includes No.12) (Shadow Grey (KGCT305XWH0))
14	Grate (Small) (LF & RR) (Black)
15	Cap, Large Burner (Black (KGCT025YBL1))
15	WPL 3180084
15	Cap, Large Burner (Dark Taupe (KGCT025YAL0))
16	Cap, Burner Small (Black (KGCT025YBL1))
16	Cap, Burner Small (Dark Taupe (KGCT025YAL0))
16	Cap, Semi
17	WP3181306 Whirlpool Knob
17	WP3181305 Whirlpool Knob
17	WP3181304 Whirlpool Knob Assembly
18	WPL ARI87717A1
19	WPL ARI87718A9
20	WPL ARI87719A3
21	WPL ARI87720A4
22	Screw, Burner
