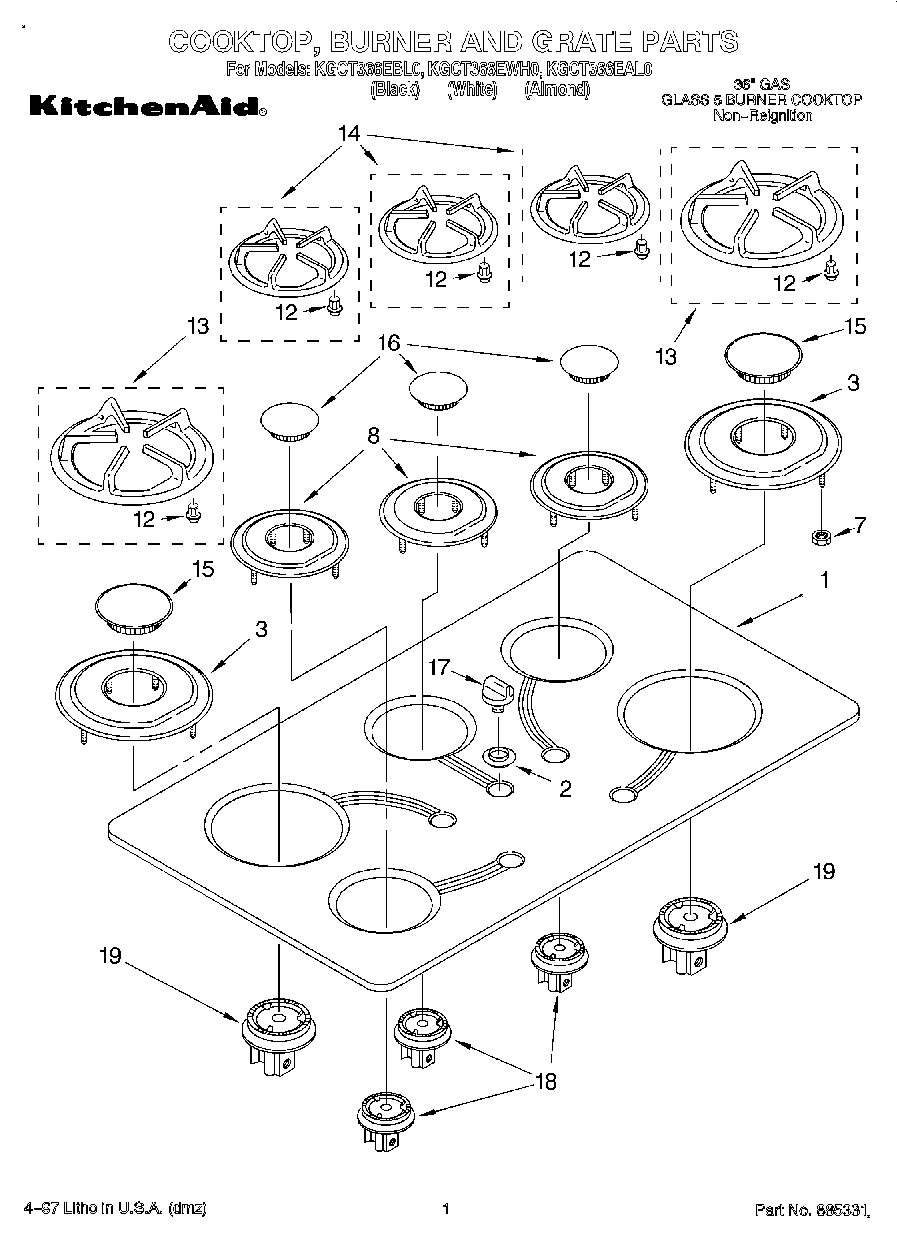

KGCT366EAL0 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (White)
1	Cooktop, Glass (Black)
2	WP3180081 Whirlpool Grommet
2	W10854241 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bezel, Cooktop (Large) (Black)
3	Bezel, Cooktop (Large) (White)
3	Bezel, Cooktop (Large) (Almond)
7	Speed Nut (15)
8	Bezel, Cooktop (Small) (Almond)
8	Bezel, Cooktop (Small) (White)
8	Bezel, Cooktop (Small) (Black)
12	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
13	Grate, Large (RF & LR) (Includes No. 12) (Black)
13	Grate, Large (RF & LR) (Includes No. 12) (White)
13	Grate, Large (RF & LR) (Includes No. 12) (Almond)
14	Grate, Small (LF & RR) (Includes No. 12) (White Model)
14	Grate, Small (LF & RR) (Includes No. 12) (Black Model)
14	Grate, Small (LF & RR) (Includes No. 12) (Almond Model)
15	Cap, Rapid Burner Large (2) (Almond)
15	Cap, Rapid Burner Large (2) (Black)
15	Cap, Rapid Burner Large (2) (White)
16	Cap, Semi Rapid Small (2) (Black)
16	Cap, Semi Rapid Small (2) (White)
16	Cap, Semi Rapid Small (2) (Almond Burner (2))
17	WP3182569 Whirlpool Knob
17	WP3182567 Whirlpool Oven Knob
17	WP3182568 Whirlpool Control Knob
18	Burner, Small (2)
19	Burner, Large (2)
