KGCT366GBL0 02 – SECTION

Products

Position	Product
	Hardware, Mounting
	Seal, Foam-Cooktop
	Wire, Ground
	Use & Care Guide
	LITERATURE PARTS (Wiring Diagram)
	Conversion Kit Natural Gas To L.P.
	Screw
	28“
	15“
	W10392007 Whirlpool Power Cord
	8186533 Whirlpool Hardware
	Nut, Tinnerman (2)
	4173634 Whirlpool Bushing
	WP3177991 Whirlpool Screw
	Installation Instructions

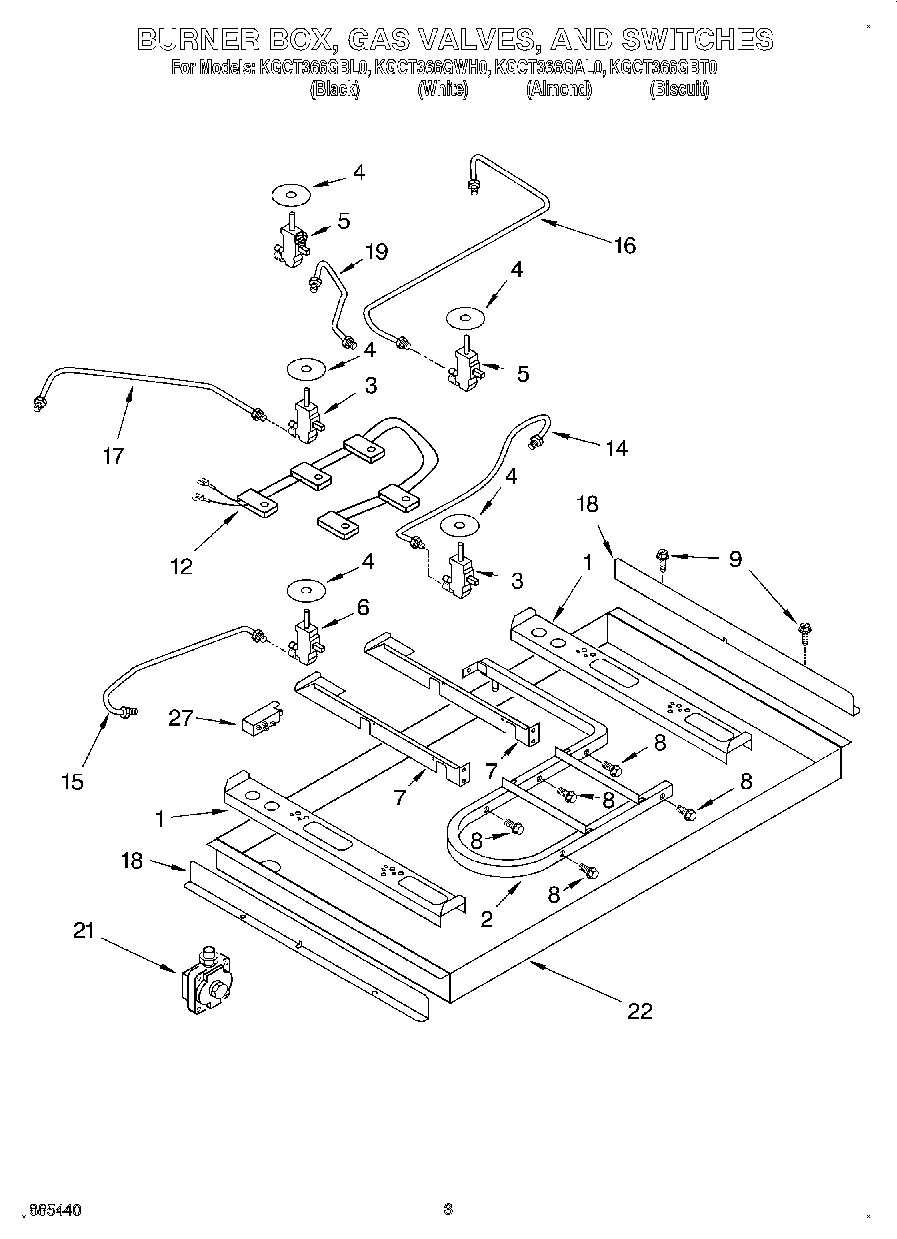

1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
19	Tubing, Gas Burner (CR)
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
