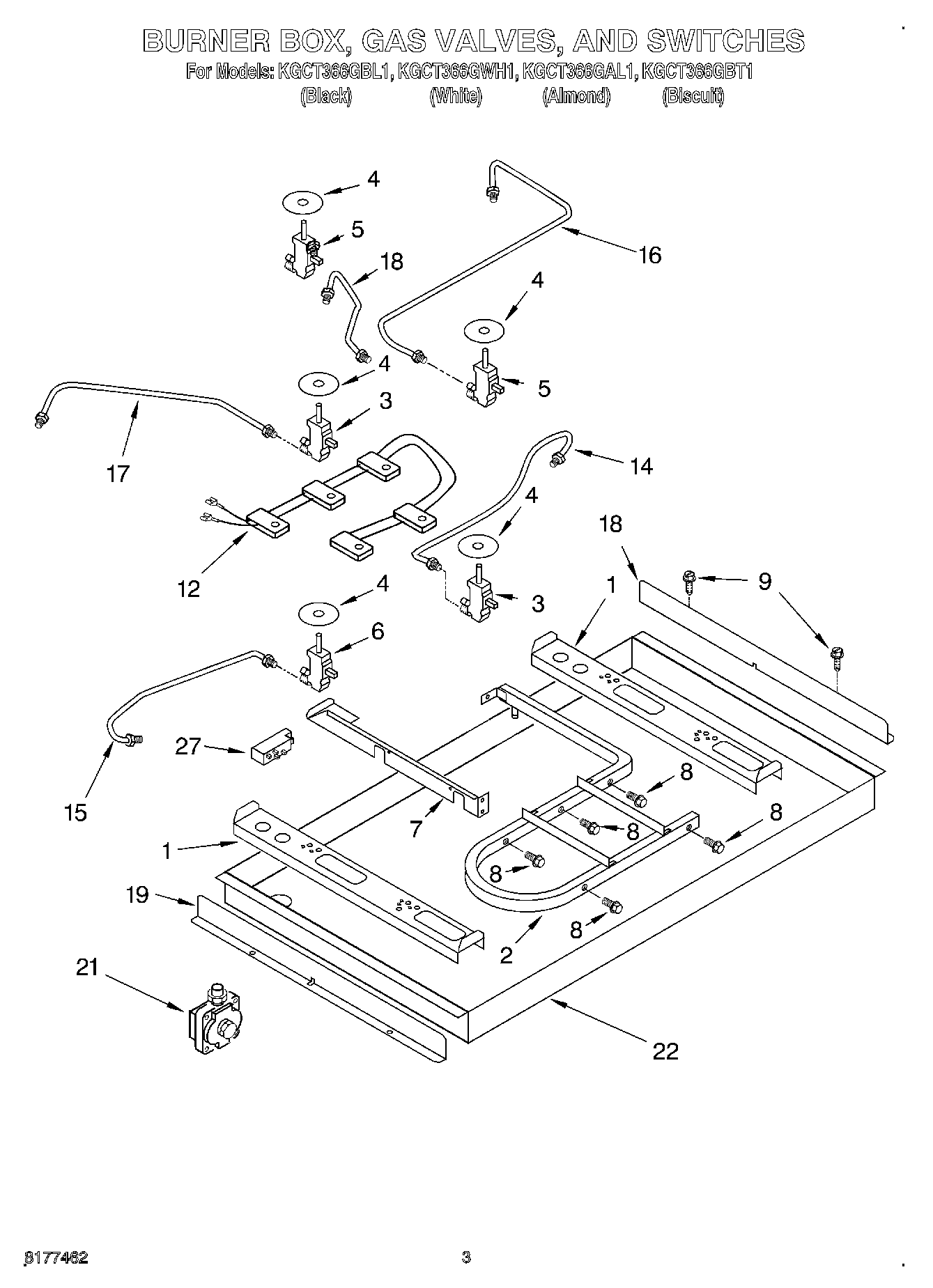

KGCT366GBL1 02 – SECTION

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Wire, Ground
	Use & Care Guide
	LITERATURE PARTS (Wiring Diagram)
	Screw
	Seal, Foam-Cooktop
	28“
	15“
	WP3177991 Whirlpool Screw
	4173634 Whirlpool Bushing
	Installation Instructions
	Hardware, Mounting
	Nut, Tinnerman (2)
	8186533 Whirlpool Hardware
	W10392007 Whirlpool Power Cord
1	W10203756 Whirlpool Support
2	Pipe, Manifold
2	3192491 Whirlpool Support Bracket
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (CR)
19	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
