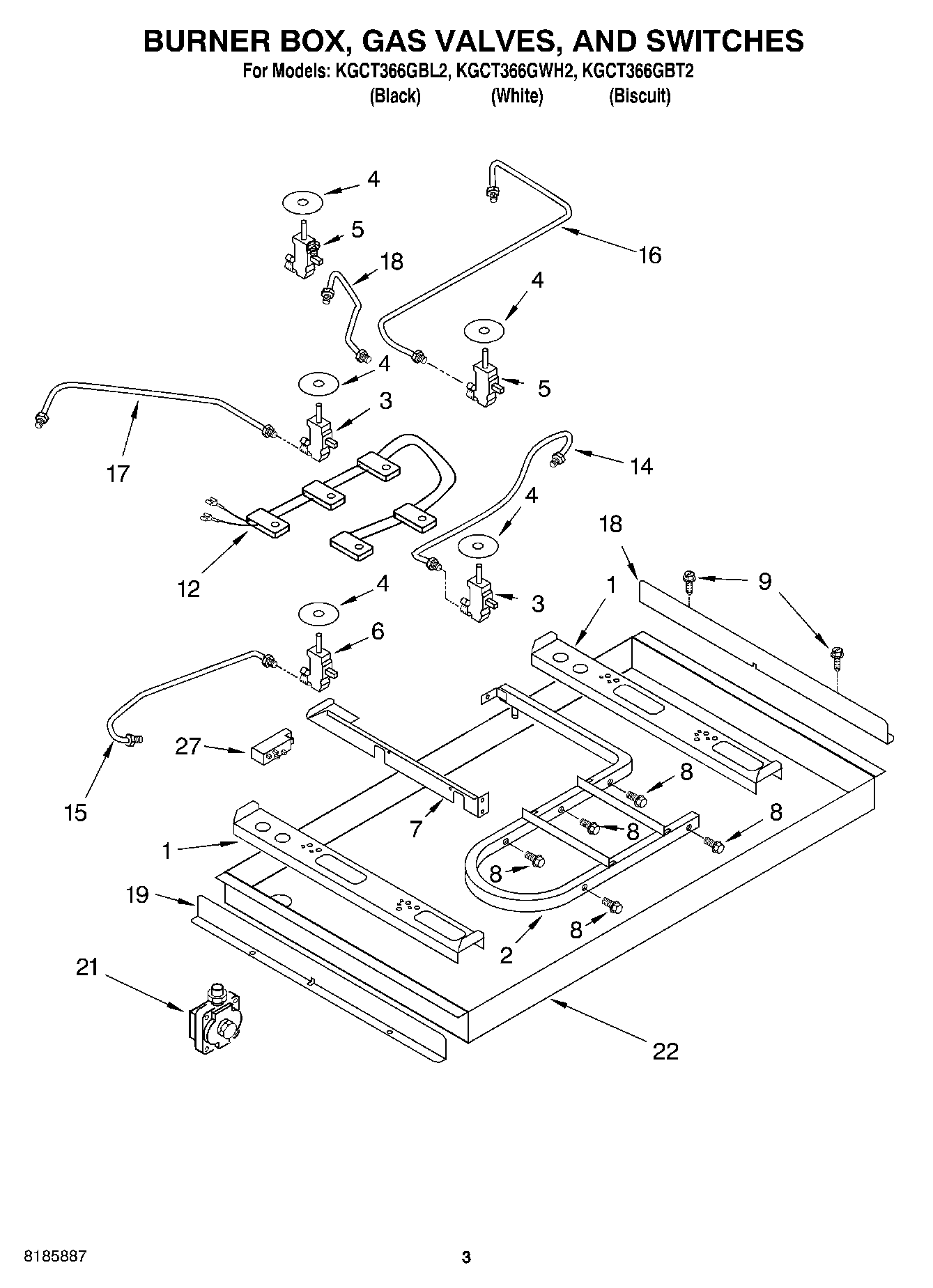

KGCT366GBT2 02 – SECTION

Products

Position	Product
1	W10203756 Whirlpool Support
2	3192491 Whirlpool Support Bracket
2	Pipe, Manifold
2	W10491985 Whirlpool Screw
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt (Gas Valve)
9	WP12990527 Whirlpool Microwave Screw
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	Tubing, Gas Burner (CR)
19	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	8285402 Whirlpool Oven Grounding Wire
27	Seal, Foam-Cooktop
27	Screw
27	Hardware, Mounting
27	8186533 Whirlpool Hardware
27	Nut, Tinnerman (2)
27	W10392007 Whirlpool Power Cord
27	4173634 Whirlpool Bushing
27	WP3177991 Whirlpool Screw
27	15“
27	28“
27	WPW10110486 Whirlpool Spark Module
27	WP3192741 Whirlpool LP Conversion Kit
