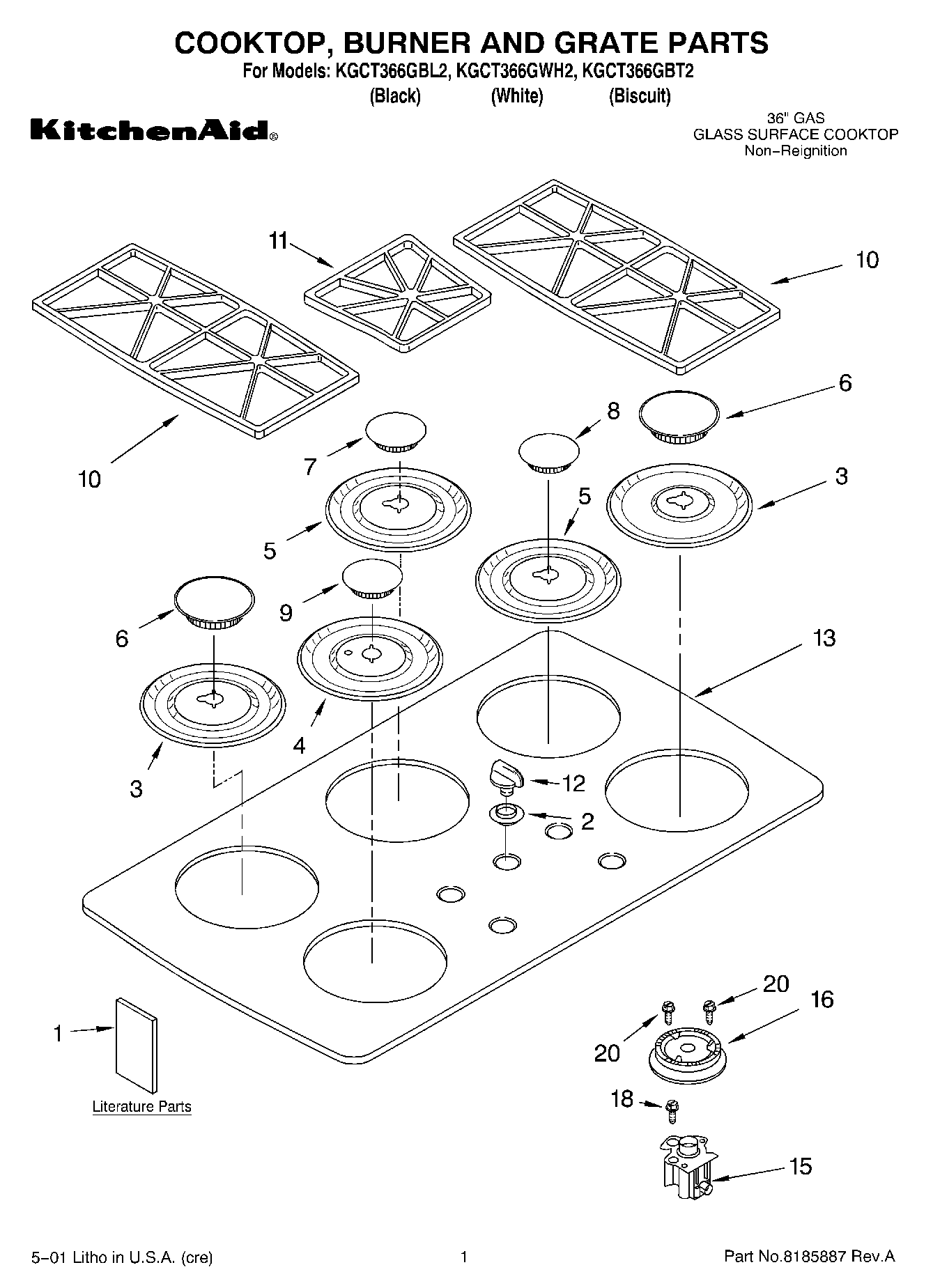

KGCT366GWH2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Installation Instructions)
1	LITERATURE PARTS (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	Grommet, Glass (Biscuit)
3	Bowl, Burner 6K (RR) (Biscuit)
3	Bowl, Burner 6K (RR) (White)
3	Bowl, Burner 6K (RR) (Black)
4	Bezel, Cooktop (LF) (White)
4	Bezel, Cooktop (LF) (Black)
4	Bezel, Cooktop (LF) (Biscuit)
5	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
5	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
5	Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Biscuit)
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (White)
7	WP3191731 Whirlpool Burner Cap
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
9	Cap, (LF) (Black)
10	Grate, Burner (White)
10	Grate, Burner (Black)
10	Grate, Burner (Biscuit)
11	Grate, Filler (Black)
11	Grate, Filler (Biscuit)
11	Grate, Filler (White)
12	WPL 3191925
12	WPL 3191923
12	WP3191922 Whirlpool Control Knob
13	Cooktop, Glass (Black)
13	Cooktop, Glass (White)
13	Cookto
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Orifice Holder (Turbi)
15	814513 Whirlpool Top Burner
16	Burner Head (Turbi)
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
