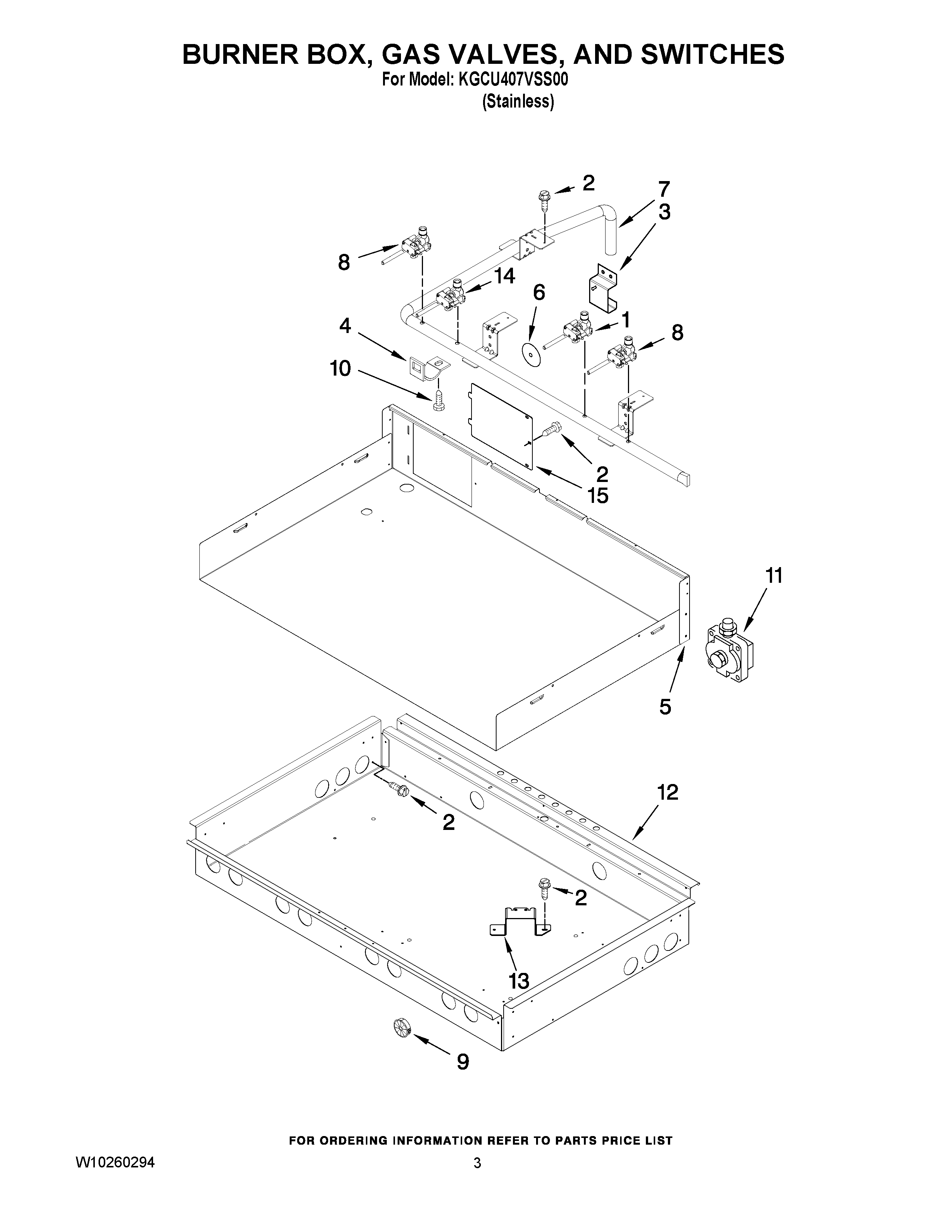

KGCU407VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LEFT REAR)
NIW10115911 Whirlpool Gas Tubing
NIW10115910 Whirlpool Gas Tubing
NIW10280797 Whirlpool Gas Tubing
1WPW10385583 Whirlpool Burner Valve
2SCREW
3Bracket, Mounting Orifice
4W10189107 Whirlpool Mounting Bracket
5COVER, BURNER BOX
6W10189177 Whirlpool Seal Switch
7W10115891 Whirlpool Manifold
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11WP9759091 Whirlpool Regulator
12BURNER BOX
13BRACKET, BURNER (RIGHT REAR)
13BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
14WPW10371235 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
