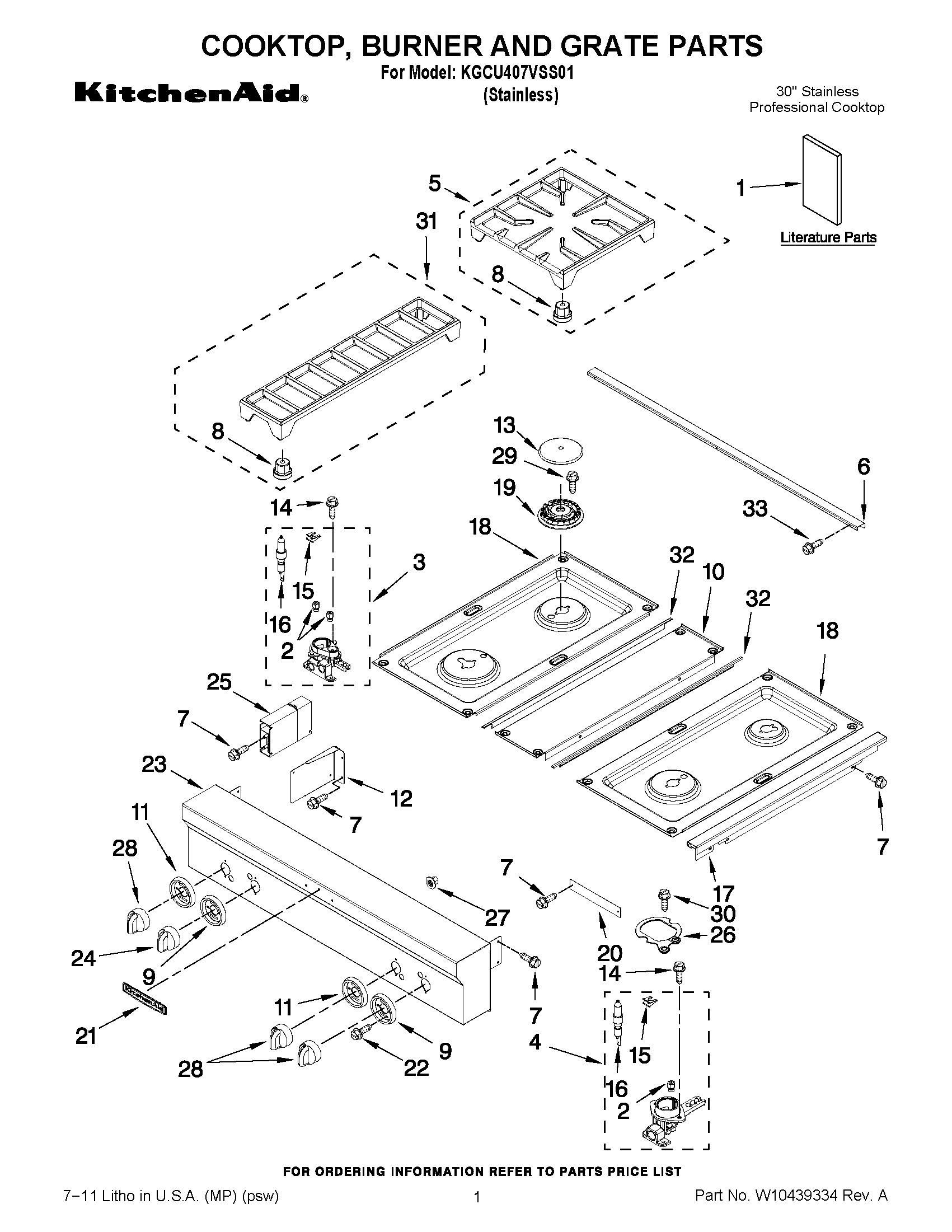

KGCU407VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1TECH SHEET
2W10819958 Whirlpool Orifice Spud
2W11051480 Whirlpool Orifice Assembly
2SPUD-ORFCE
3WPW10364555 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269218 Whirlpool Trim Top
7SCREW
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10189105 Whirlpool Cooktop
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13CAP-BURNER
13CAP-BURNER
13CAP-BURNER
14WP3177991 Whirlpool Screw
15W10256046 Whirlpool Clip
158286863 Whirlpool Oven Clip
16WPW10145991 Whirlpool Surface Igniter
16W10833887 Whirlpool Surface Igniter
17W10226014 Whirlpool Cooktop Trim
17W10226015 Whirlpool Cooktop Trim
18W10352968 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19BURNR-HEAD
19BURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
20COVER, PLATE
21W10201187 Whirlpool Nameplate
22SCREW
23W10910417 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11177673 Whirlpool Knob
29WPW10373929 Whirlpool Screw
30W10491985 Whirlpool Screw
31W11241670 Whirlpool Grill Grate
32W10271524 Whirlpool Trim Top
33SCREW
