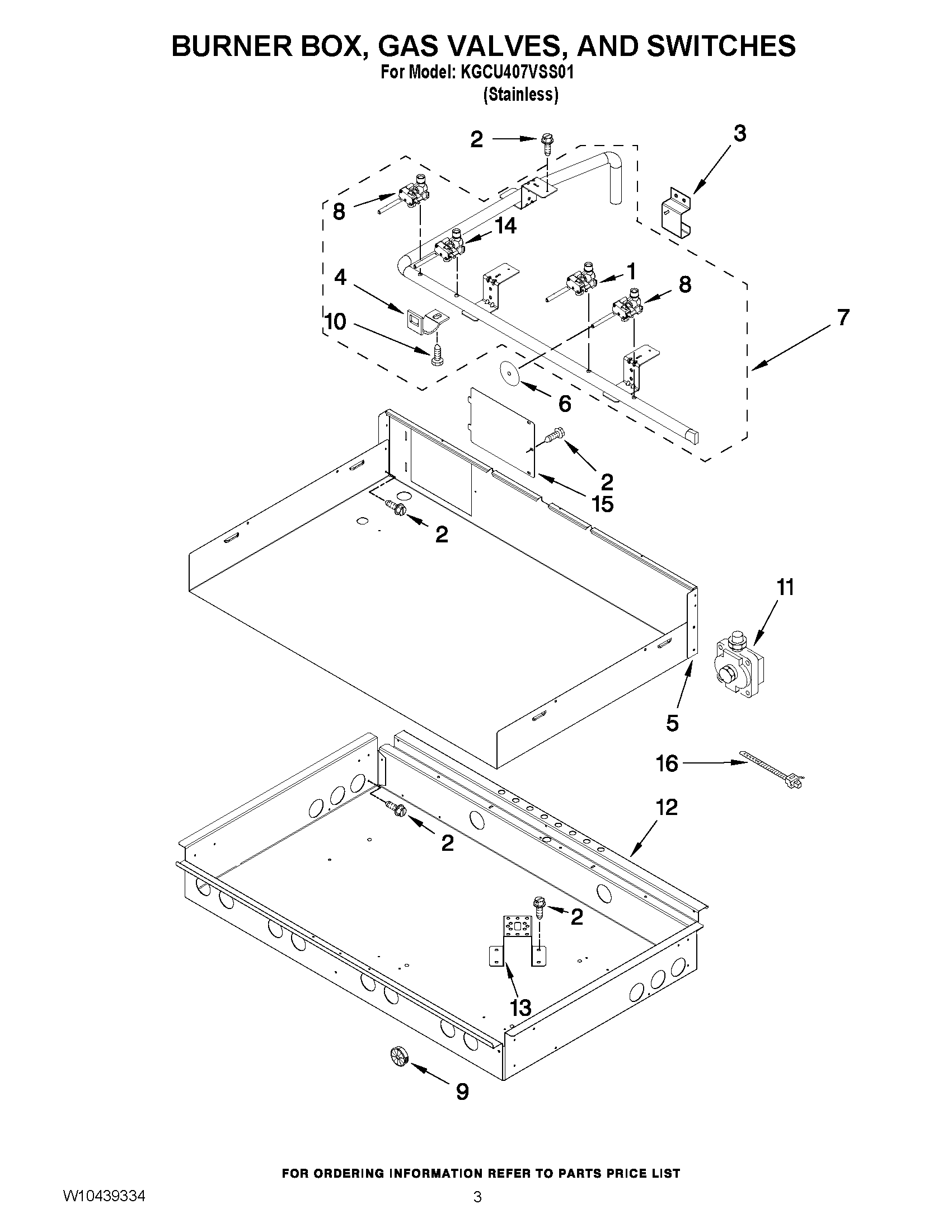

KGCU407VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIW10353152 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
1WPW10385583 Whirlpool Burner Valve
2SCREW
3Bracket, Mounting Orifice
4W10189107 Whirlpool Mounting Bracket
5COVER, BURNER BOX
6W10423373 Whirlpool Switch Seal
7W10402609 Whirlpool Manifold
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11WP9759091 Whirlpool Regulator
12BOX, BURNER
13W10369547 Whirlpool Mounting Bracket
14WPW10371235 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
16W11675299 Whirlpool Tie Wire
