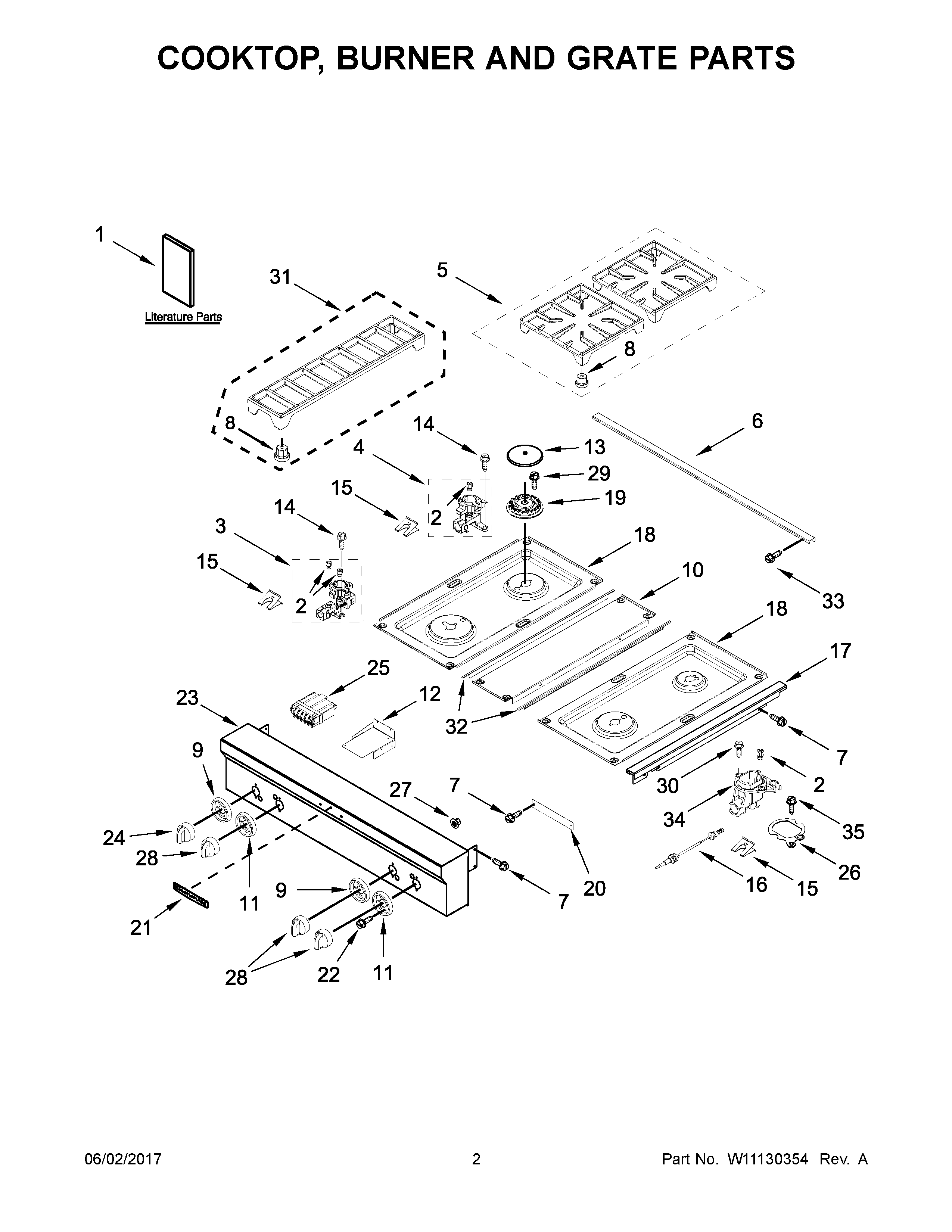

KGCU407VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

KGCU407VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCU407VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NI8287106 Whirlpool Clip Assembly
NIW10763500 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NIWPL W10283996
NIW10624584 Whirlpool Power Cord
NI16515 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NIW10116174 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1TECH SHEET
1BINSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
2CW10791075 Whirlpool Orifice Spud
2W10657945 Whirlpool Orifice Spud
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269218 Whirlpool Trim Top
7SCREW
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W10189105 Whirlpool Cooktop
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13ACAP-BURNER
13CAP-BURNER
13BCAP-BURNER
14WP3177991 Whirlpool Screw
15W11684564 Whirlpool Clip Assembly
15A8286863 Whirlpool Oven Clip
16W10854967 Whirlpool Surface Igniter
17W10226014 Whirlpool Cooktop Trim
17AW10226015 Whirlpool Cooktop Trim
18W10352969 Whirlpool Cooktop Assembly
18AW10352968 Whirlpool Cooktop
19ABURNR-HEAD
19BBURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
20COVER, PLATE
21W10201187 Whirlpool Nameplate
22SCREW
23W10910417 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11241230 Whirlpool Screw
30W10491985 Whirlpool Screw
31W11241670 Whirlpool Grill Grate
32W10271524 Whirlpool Trim Top
33SCREW
34W10883622 Whirlpool Orifice Holder
35W11676349 Whirlpool Screw
