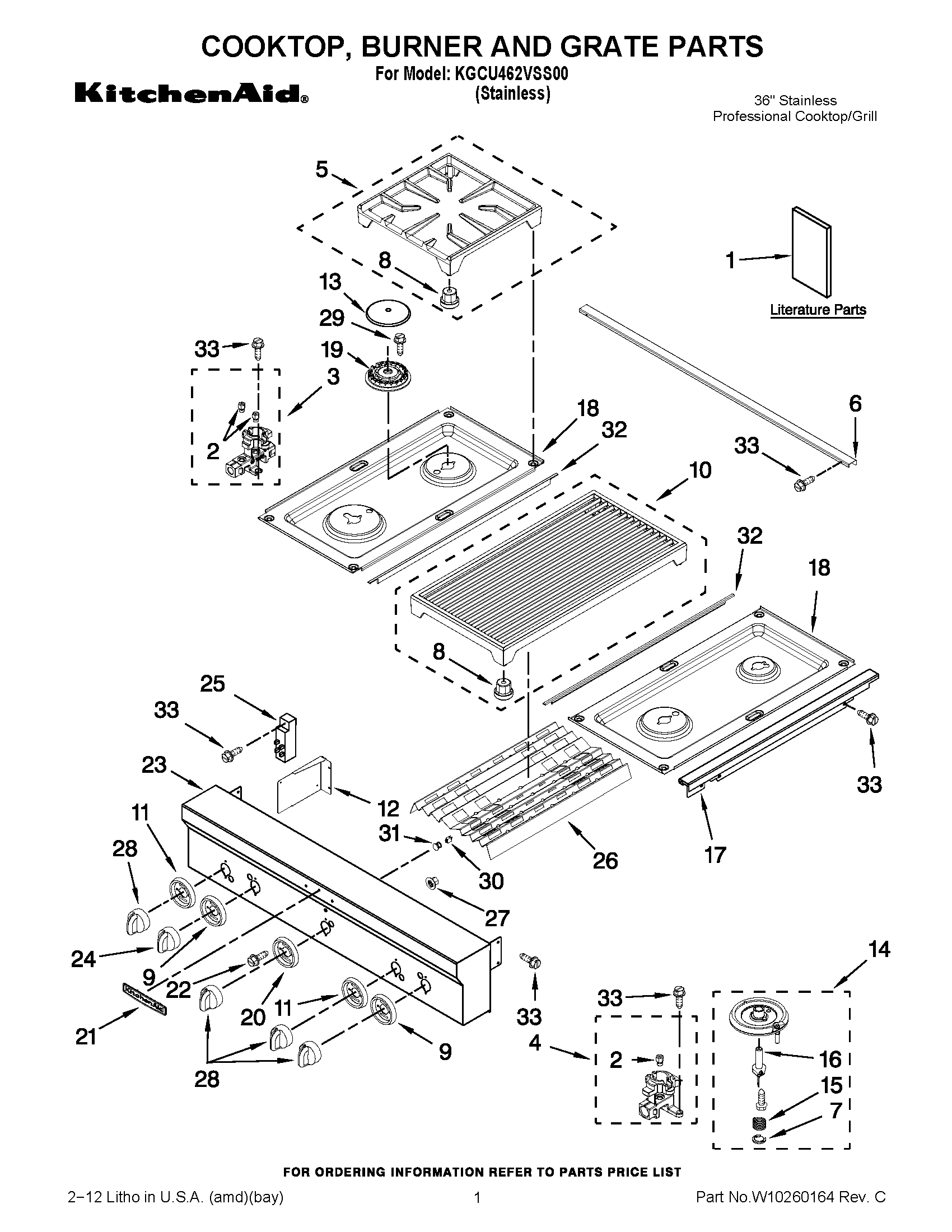

KGCU462VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2ORIFICE (LEFT REAR & RIGHT FRONT)
2ORIFICE (LEFT FRONT, LOW)
24456495 Whirlpool Oven Orifice
2W10791075 Whirlpool Orifice Spud
2ORIFICE (LEFT FRONT, HIGH)
3WPW10160187 Whirlpool Orifice Holder
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7CLIP, ELECTRODE (DUAL)
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W11241676 Whirlpool Grille Grate
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13WPW10115952 Whirlpool Burner Cap
13WPW10160229 Whirlpool Burner Cap
13WP8286816 Whirlpool Burner Cap
14WPW10320937 Whirlpool Burner Top
14ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
14W10282659 Whirlpool Orifice Holder
15SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
158286863 Whirlpool Oven Clip
16WPW10160235 Whirlpool Surface Igniter
16WPW10250406 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
17W10226015 Whirlpool Cooktop Trim
17W10226014 Whirlpool Cooktop Trim
18COOKTOP (LEFT)
18W10282192 Whirlpool Cooktop Assembly
19HEAD, BURNER (LEFT REAR & RIGHT FRONT)
19BURNR-HEAD
19WPW10250459 Whirlpool Burner Head
20BEZEL, GRILL
21W10201187 Whirlpool Nameplate
22W11676349 Whirlpool Screw
23W10910415 Whirlpool Control Panel
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
26WAVE, TRAY
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10116114 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
