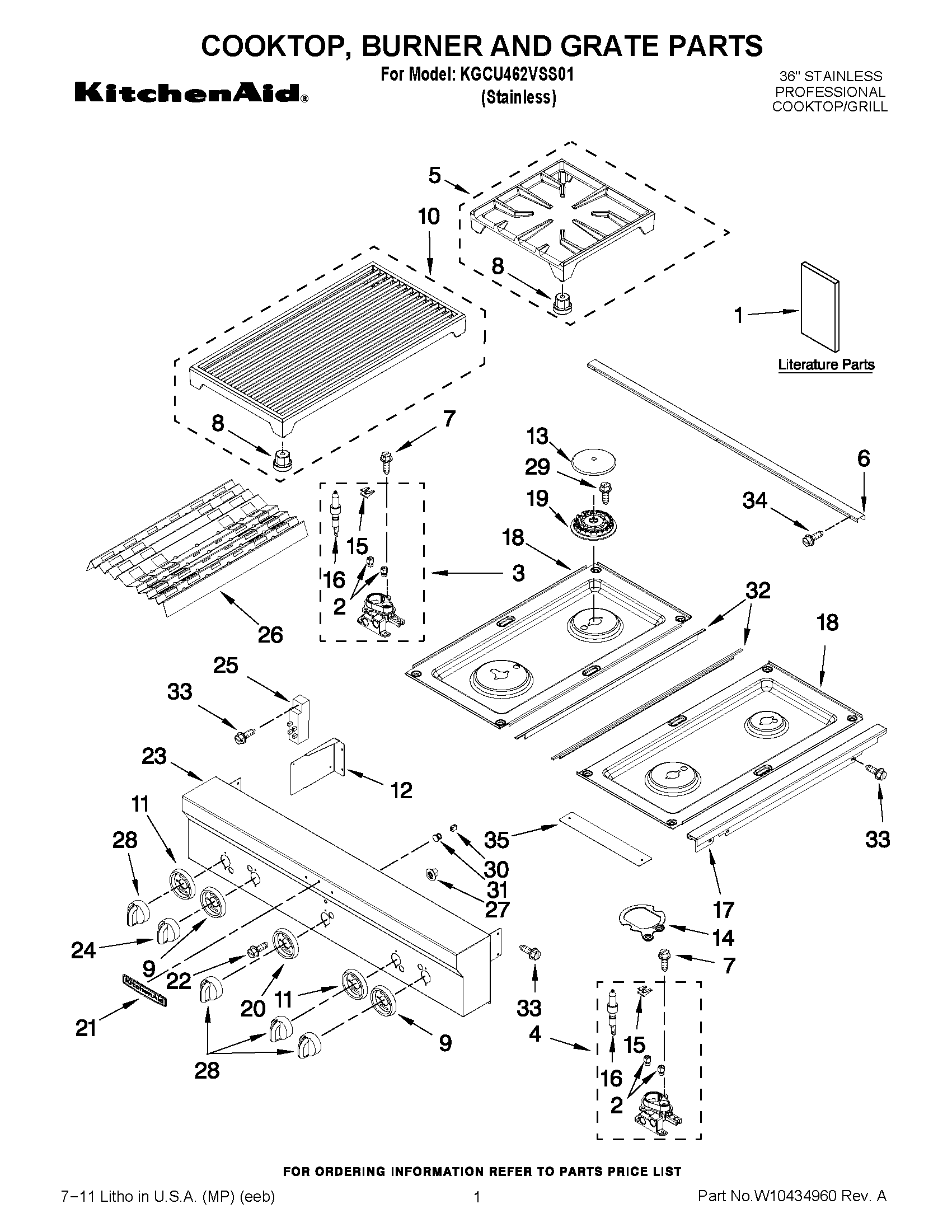

KGCU462VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	USE & CARE GUIDE
2	SPUD-ORFCE
2	4456495 Whirlpool Oven Orifice
2	W10819958 Whirlpool Orifice Spud
2	W11051480 Whirlpool Orifice Assembly
3	WPW10364555 Whirlpool Orifice Holder
4	WPW10364556 Whirlpool Orifice Holder
4	W10282659 Whirlpool Orifice Holder
5	WPW10115928 Whirlpool Burner Grate
6	W10269217 Whirlpool Trim Top Assembly
7	WP3177991 Whirlpool Screw
8	W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9	W10261510 Whirlpool Knob Bezel
10	W11241676 Whirlpool Grille Grate
11	W10261512 Whirlpool Knob Bezel
12	W10367052 Whirlpool Switch Bracket
13	CAP-BURNER
13	CAP-BURNER
13	CAP-BURNER
14	8286930 Whirlpool Oven Gasket
15	8286863 Whirlpool Oven Clip
15	W10256046 Whirlpool Clip
16	W10833887 Whirlpool Surface Igniter
16	WPW10145991 Whirlpool Surface Igniter
17	W10226014 Whirlpool Cooktop Trim
17	W10226015 Whirlpool Cooktop Trim
18	W10352969 Whirlpool Cooktop Assembly
18	W10352968 Whirlpool Cooktop
19	W11106799 Whirlpool Range Burner Base Surface
19	BURNR-HEAD
19	BURNR-HEAD
20	BEZEL, GRILL
21	W10201187 Whirlpool Nameplate
22	SCREW
23	W10910415 Whirlpool Control Panel
24	W11244176 Whirlpool Knob Assembly
25	MODULE, SPARK
26	WAVE, TRAY
27	WPL 7103P16660
28	W11177673 Whirlpool Knob
29	W11404293 Whirlpool Screw
30	W10116114 Whirlpool Indicator Light
31	W10116115 Whirlpool Light Lens
32	W10291193 Whirlpool Trim Top
33	SCREW
34	SCREW
35	COVER, PLATE
