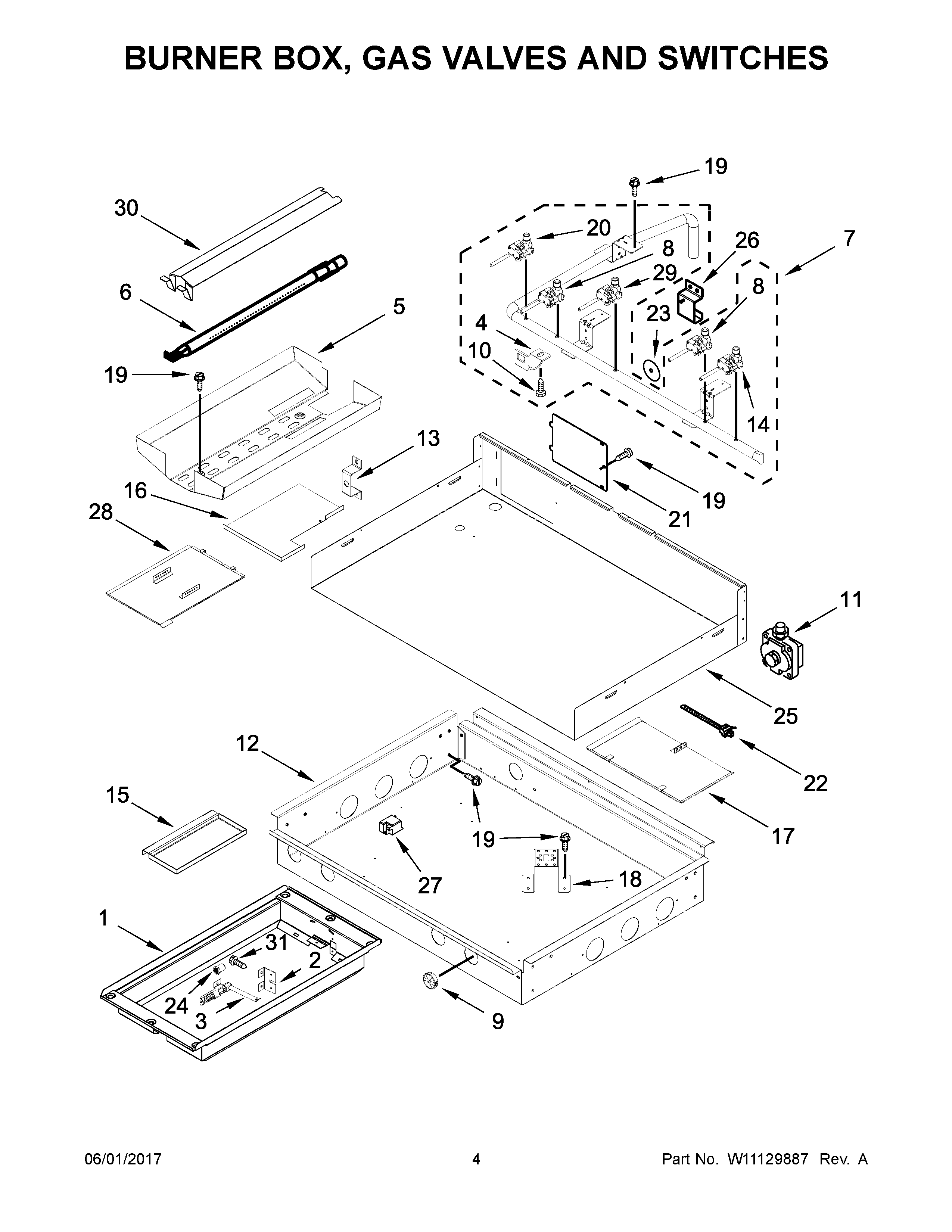

KGCU462VSS02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

Position	Product
NI	W10158807 Whirlpool Burner Tube
NI	W10280797 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10353152 Whirlpool Gas Tubing
NI	WPW10353133 Whirlpool Gas Tubing
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10353154 Whirlpool Gas Tubing
1	WPW10267890 Whirlpool Module
2	BRACKET, GRILL IGNITOR
3	W10268770 Whirlpool Surface Igniter
4	BRACKET, VALVE
5	DEFLECTOR, GRILL
6	W10223569 Whirlpool Burner Grille
7	WPW10402600 Whirlpool Manifold
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W11106948 Whirlpool Pressure Regulator
12	W10371516 Whirlpool Burner Box
13	BRACKET, GRILL ORIFICE MOUNTING
14	WPW10385583 Whirlpool Burner Valve
15	W10250473 Whirlpool Drip Tray
16	HOLDER, DRIP TRAY
17	W10250468 Whirlpool Grille Guard
18	W10560553 Whirlpool Mounting Bracket
19	SCREW
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
22	W11675299 Whirlpool Tie Wire
23	W10189177 Whirlpool Seal Switch
24	4456495 Whirlpool Oven Orifice
25	COVER, BURNER BOX
26	Bracket, Mounting Orifice
27	W11601369 Whirlpool Spark Module
28	DRIP TRAY, ROUTER 1
29	W10385584 Whirlpool Grill Valve
30	FLAME SPREADER
31	SCREW
