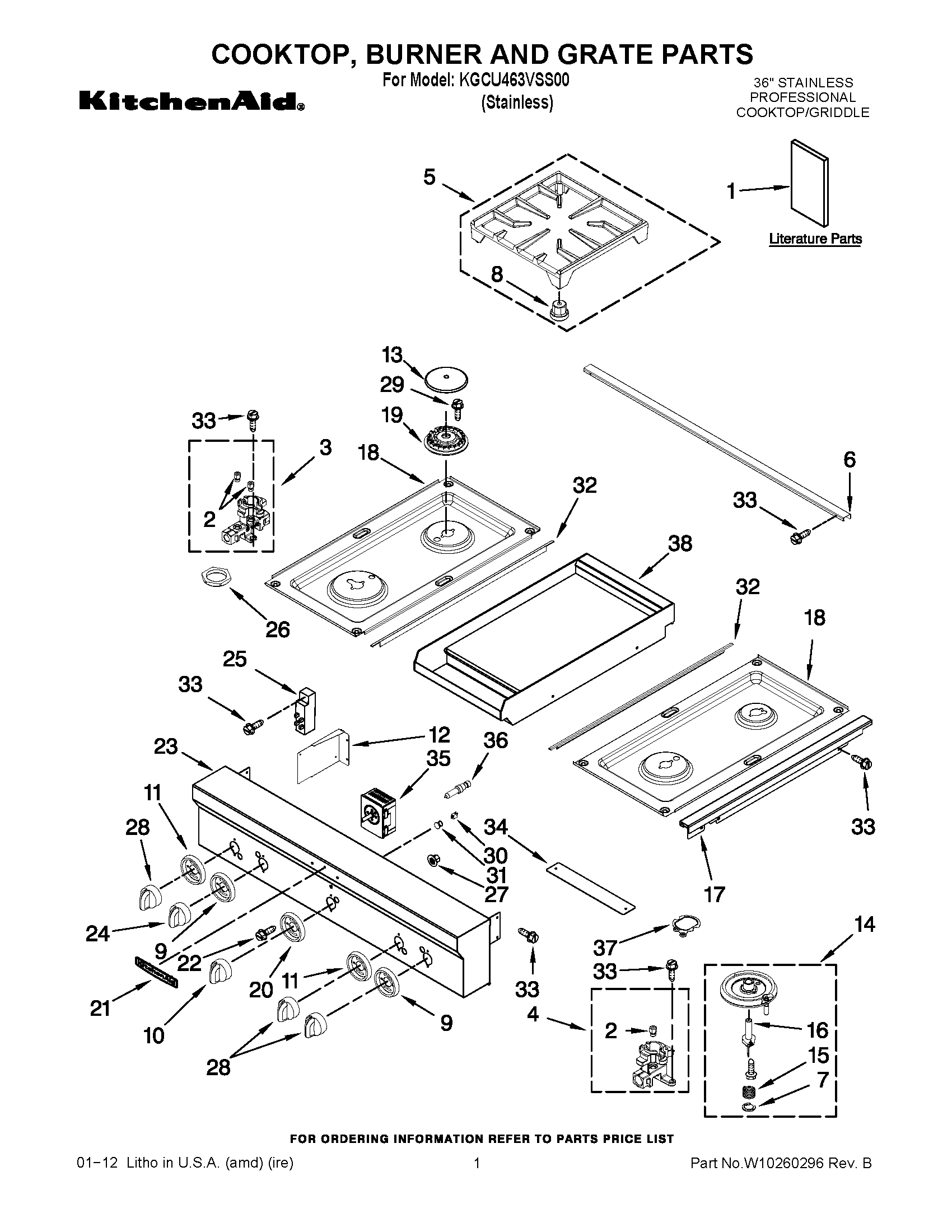

KGCU463VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

KGCU463VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCU463VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1USE & CARE GUIDE
2ORIFICE (LEFT FRONT, LOW)
2ORIFICE (LEFT REAR & RIGHT FRONT)
2ORIFICE (LEFT FRONT, HIGH)
3WPW10160187 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7CLIP, ELECTRODE (DUAL)
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10250390 Whirlpool Knob
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13WPW10160229 Whirlpool Burner Cap
13WPW10115952 Whirlpool Burner Cap
13WP8286816 Whirlpool Burner Cap
14ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
14WPW10320937 Whirlpool Burner Top
15SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
16WPW10160235 Whirlpool Surface Igniter
16WPW10250406 Whirlpool Surface Igniter
17W10226014 Whirlpool Cooktop Trim
17W10226015 Whirlpool Cooktop Trim
18COOKTOP (LEFT)
18W10282192 Whirlpool Cooktop Assembly
19BURNR-HEAD
19WPW10250459 Whirlpool Burner Head
19HEAD, BURNER (LEFT REAR & RIGHT FRONT)
20W10261515 Whirlpool Knob Bezel
21W10201187 Whirlpool Nameplate
22SCREW
23ASSEMBLY, CONSOLE
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
26W10115953 Whirlpool Nut
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10116114 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10271525 Whirlpool Top Trim
33SCREW
34COVER, PLATE
35WPW10116113 Whirlpool Infinite Switch
36WPW10145991 Whirlpool Surface Igniter
378286930 Whirlpool Oven Gasket
38W10625221 Whirlpool Module
