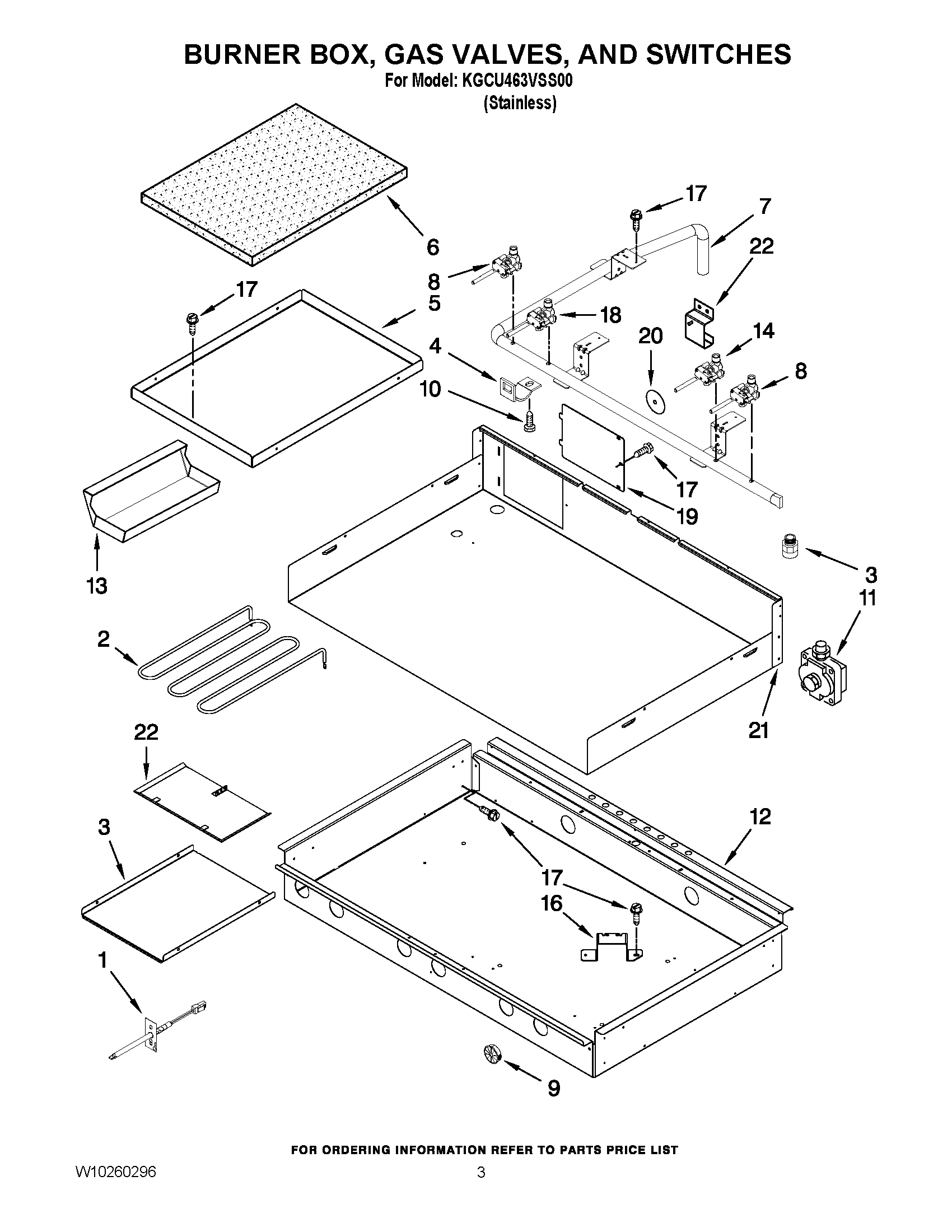

KGCU463VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIW10115911 Whirlpool Gas Tubing
NITUBING, GAS (LEFT REAR)
NIW10115910 Whirlpool Gas Tubing
1WPW10131825 Whirlpool Oven Temperature Sensor
2W10193014 Whirlpool Grille Element
3W10145620 Whirlpool Bottom Model
4W10189107 Whirlpool Mounting Bracket
5W10246074 Whirlpool Insulation Tray
6W11684995 Whirlpool Insulation
7W10115985 Whirlpool Manifold
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11WP9759091 Whirlpool Regulator
12BURNER BOX
13W10276497 Whirlpool Drip Tray
14WPW10385583 Whirlpool Burner Valve
16BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
16BRACKET, BURNER (RIGHT REAR)
17SCREW
18WPW10371235 Whirlpool Burner Valve
19W10115843 Whirlpool Access Cover
20W10189177 Whirlpool Seal Switch
21W10189156 Whirlpool Cover
22Bracket, Mounting Orifice
