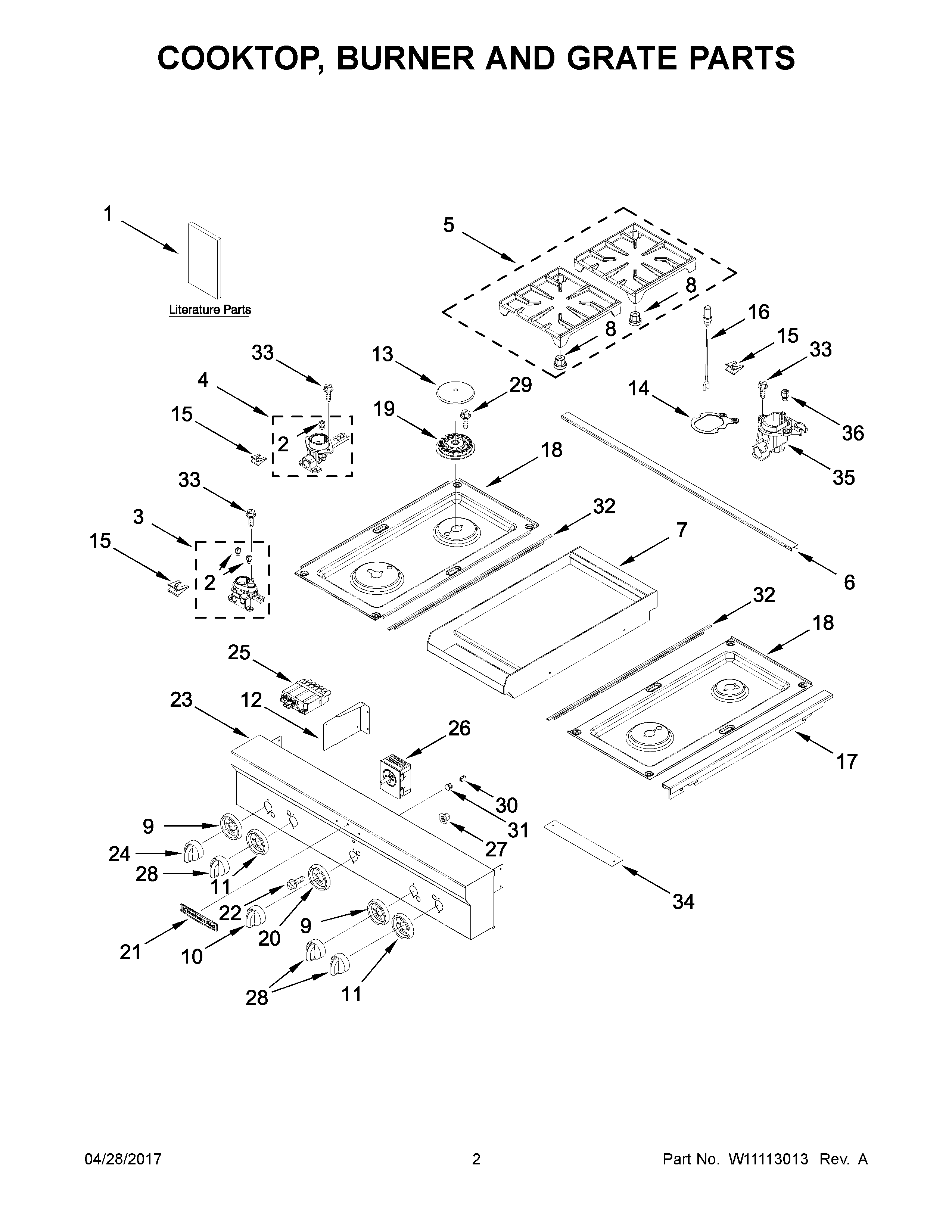

KGCU463VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

KGCU463VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCU463VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWPL W10283996
NIW10763501 Whirlpool Wire Harness
NIW10856625 Whirlpool Venturi
NI8287106 Whirlpool Clip Assembly
NIW11676349 Whirlpool Screw
NIW10624584 Whirlpool Power Cord
NIW10116174 Whirlpool Wire Harness
NIW10116096 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
1INSTRUCTIONS, INSTALLATION
1BTECH SHEET
1CSAFER COOKING TIPS (ENGLISH
1DSafer Cooking Tips (French)
1AGUIDE, USE & CARE
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
2W10657945 Whirlpool Orifice Spud
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
5W11569347 Whirlpool Grate Kit
6W10269217 Whirlpool Trim Top Assembly
7W10625221 Whirlpool Module
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W10250390 Whirlpool Knob
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13CAP-BURNER
13ACAP-BURNER
13BCAP-BURNER
148286930 Whirlpool Oven Gasket
15W11684564 Whirlpool Clip Assembly
15A8286863 Whirlpool Oven Clip
16W10146042 Whirlpool Surface Igniter
17W10226014 Whirlpool Cooktop Trim
17AW10226015 Whirlpool Cooktop Trim
18AW10352968 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19W11106799 Whirlpool Range Burner Base Surface
19ABURNR-HEAD
19BBURNR-HEAD
20W10261515 Whirlpool Knob Bezel
21W10201187 Whirlpool Nameplate
22SCREW
23ASSEMBLY, CONSOLE
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
26WPW10116113 Whirlpool Infinite Switch
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11241230 Whirlpool Screw
30W10116114 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33AW10491985 Whirlpool Screw
33WP3177991 Whirlpool Screw
34COVER, PLATE
35W10883622 Whirlpool Orifice Holder
36W10791075 Whirlpool Orifice Spud
