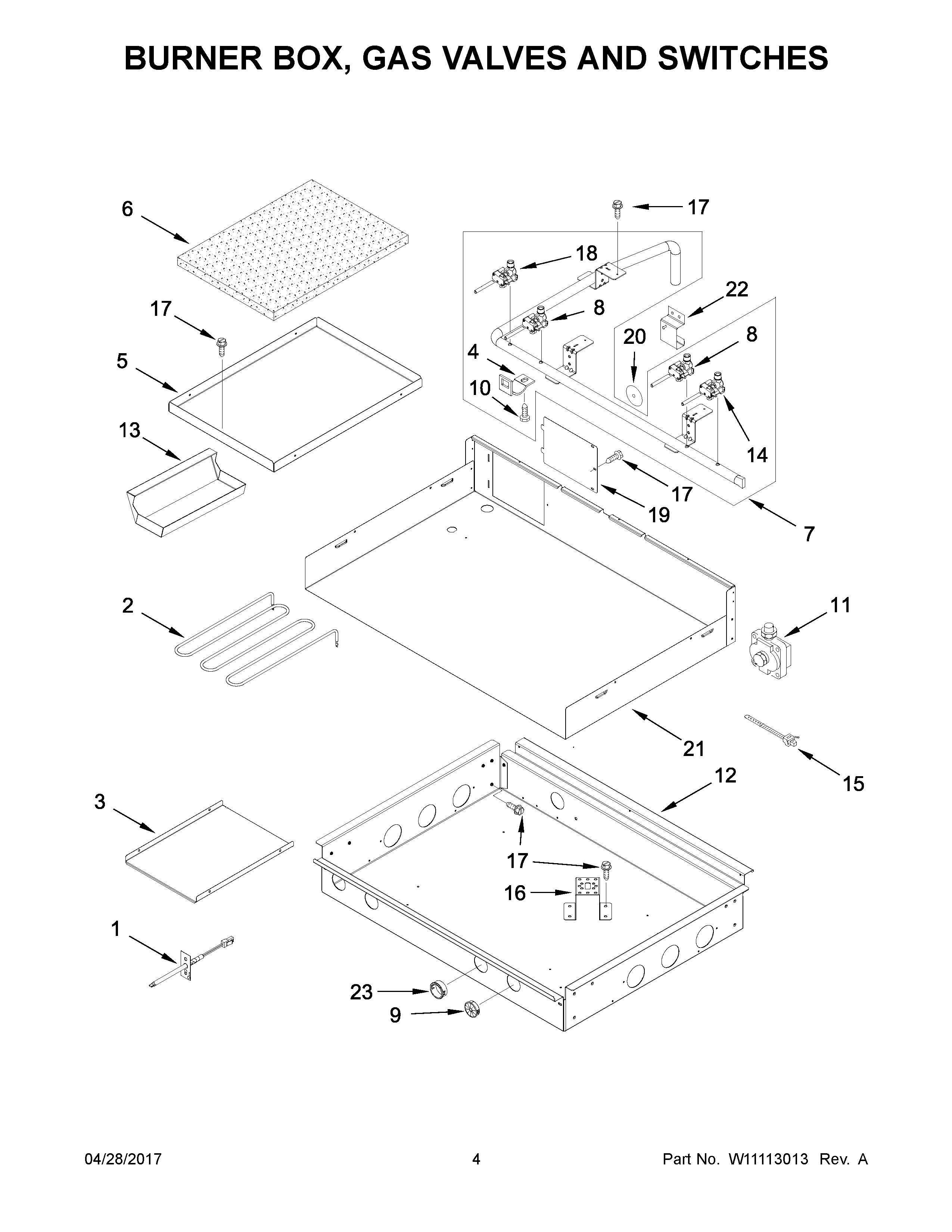

KGCU463VSS02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIW10353152 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
NICABINET (NOT A SERVICEABLE PART)
1W10319835 Whirlpool Sensor
2W10193014 Whirlpool Grille Element
3W10145620 Whirlpool Bottom Model
4BRACKET, VALVE
5W10246074 Whirlpool Insulation Tray
6W11684995 Whirlpool Insulation
7W10402610 Whirlpool Manifold
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W11106948 Whirlpool Pressure Regulator
12W10371516 Whirlpool Burner Box
13W10276497 Whirlpool Drip Tray
14WPW10385583 Whirlpool Burner Valve
15W11675299 Whirlpool Tie Wire
16W10560553 Whirlpool Mounting Bracket
17SCREW
18WPW10371235 Whirlpool Burner Valve
19W10115843 Whirlpool Access Cover
20W10189177 Whirlpool Seal Switch
21COVER, BURNER BOX
22Bracket, Mounting Orifice
23Snap Bushing
