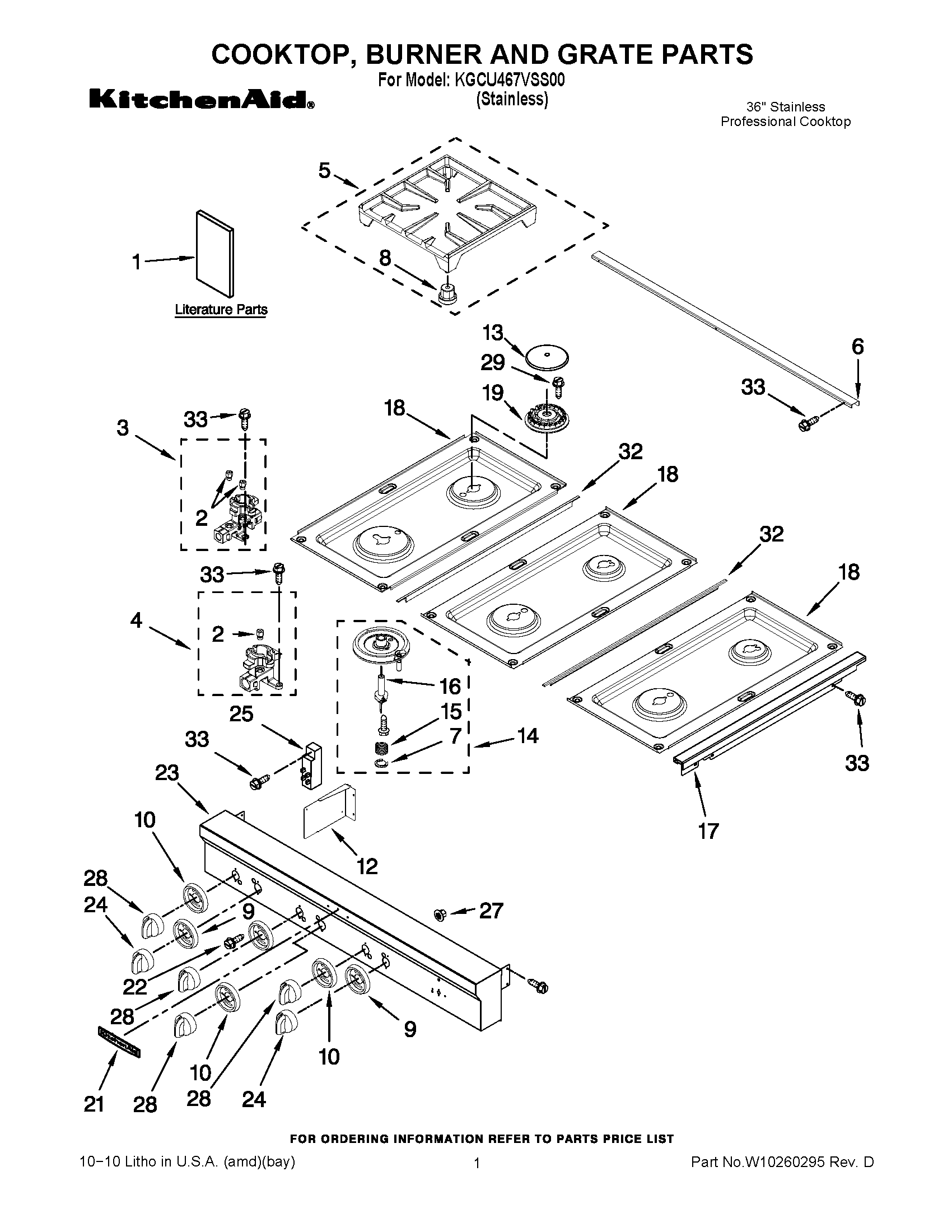

KGCU467VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TECH SHEET
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	ORIFICE (LEFT FRONT, LOW)
2	ORIFICE (LEFT FRONT, HIGH)
2	W10791075 Whirlpool Orifice Spud
2	ORIFICE (LEFT REAR & RIGHT FRONT)
3	WPW10160187 Whirlpool Orifice Holder
4	W10282659 Whirlpool Orifice Holder
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
5	WPW10115928 Whirlpool Burner Grate
6	W10269217 Whirlpool Trim Top Assembly
7	CLIP, ELECTRODE (DUAL)
8	W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9	W10261510 Whirlpool Knob Bezel
10	W10261512 Whirlpool Knob Bezel
12	W10367052 Whirlpool Switch Bracket
13	WPW10115952 Whirlpool Burner Cap
13	WPW10160229 Whirlpool Burner Cap
13	WP8286816 Whirlpool Burner Cap
14	WPW10320937 Whirlpool Burner Top
14	ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
15	SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
16	WPW10160235 Whirlpool Surface Igniter
16	WPW10250406 Whirlpool Surface Igniter
16	WPW10145991 Whirlpool Surface Igniter
17	W10226014 Whirlpool Cooktop Trim
17	W10226015 Whirlpool Cooktop Trim
18	COOKTOP (CENTER)
18	COOKTOP (LEFT)
18	W10189101 Whirlpool Cooktop
19	WPW10250459 Whirlpool Burner Head
19	HEAD, BURNER (LEFT REAR & RIGHT FRONT)
19	BURNR-HEAD
21	W10201187 Whirlpool Nameplate
22	SCREW
23	PANEL, CONTROL
24	W11244176 Whirlpool Knob Assembly
25	MODULE, SPARK
27	WPL 7103P16660
28	W11177673 Whirlpool Knob
29	W11404293 Whirlpool Screw
32	W10271524 Whirlpool Trim Top
33	SCREW
