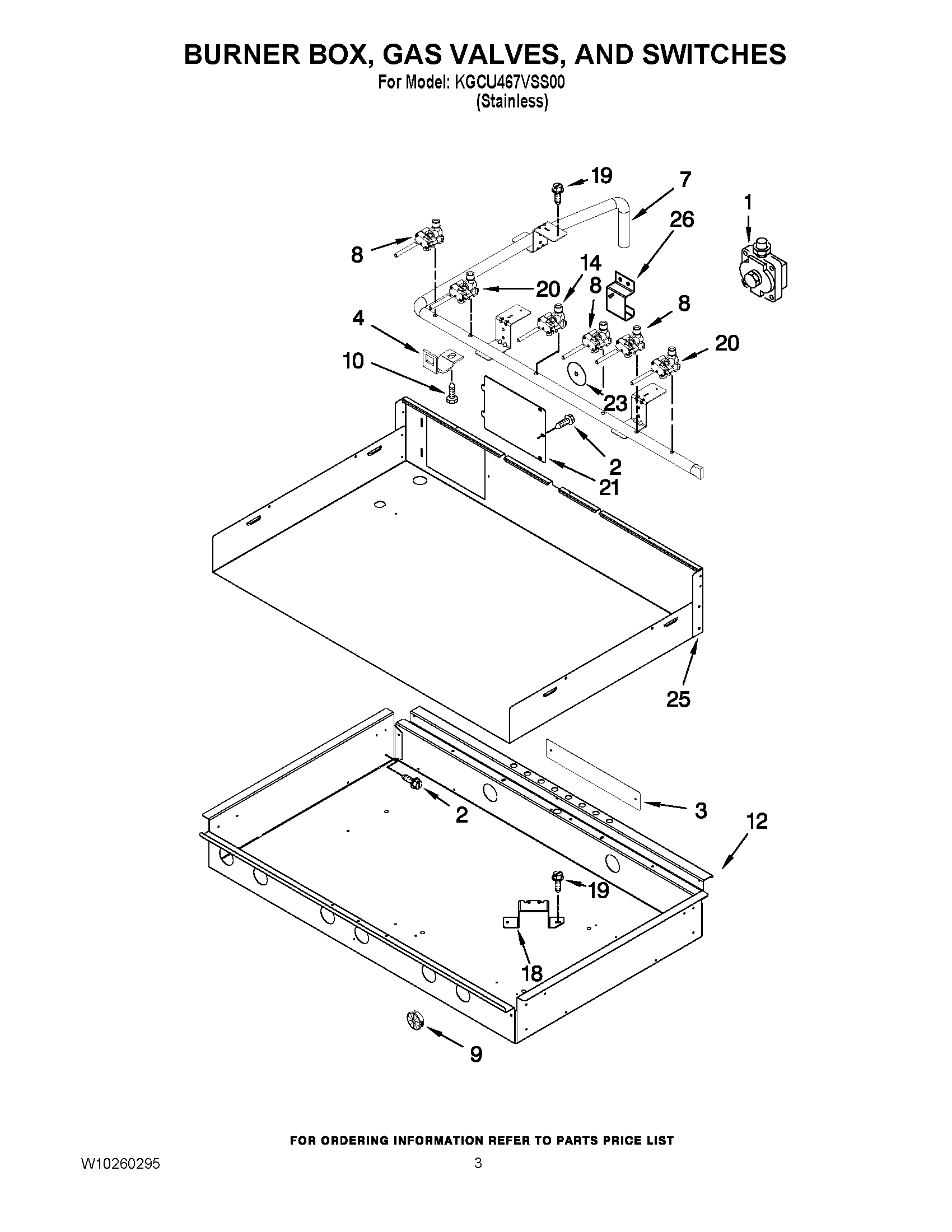

KGCU467VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10115911 Whirlpool Gas Tubing
NIW10115910 Whirlpool Gas Tubing
NIW10280797 Whirlpool Gas Tubing
1WP9759091 Whirlpool Regulator
2SCREW
3COVER, PLATE
4W10189107 Whirlpool Mounting Bracket
7MANIFOLD
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
12BURNER BOX
14WPW10385583 Whirlpool Burner Valve
18BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
18BRACKET, BURNER (RIGHT REAR)
19W10491985 Whirlpool Screw
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
23W10189177 Whirlpool Seal Switch
25W10189156 Whirlpool Cover
26Bracket, Mounting Orifice
