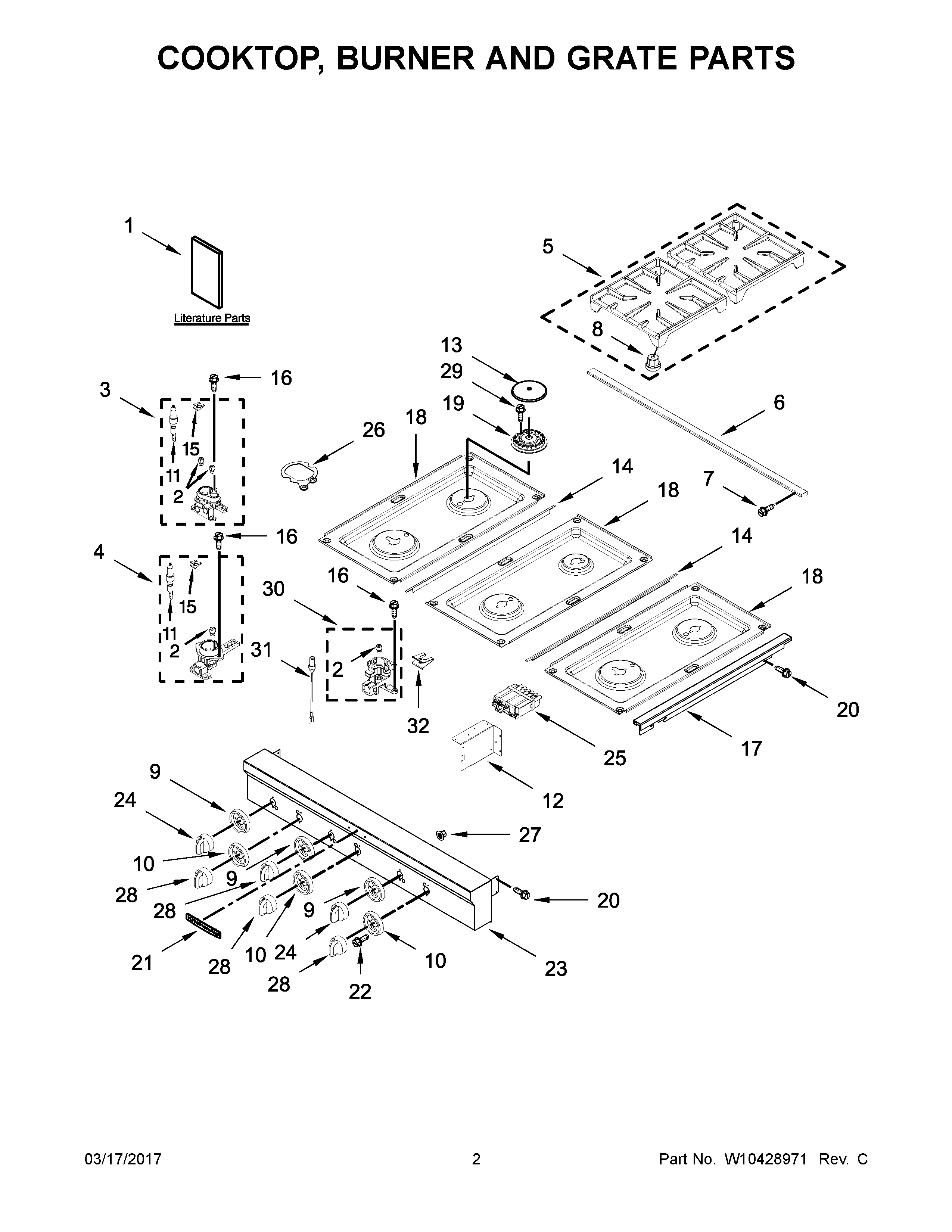

KGCU467VSS01 02 – COOKTOP, BURNER AND GRATE PARTS
Written by
in
KGCU467VSS01 02 – COOKTOP, BURNER AND GRATE PARTS
Products
Position
Product
NI
W10624584 Whirlpool Power Cord
NI
WPL W10283996
NI
W10856625 Whirlpool Venturi
NI
KIT, LP CONVERSION
NI
8287106 Whirlpool Clip Assembly
NI
W11676349 Whirlpool Screw
NI
W10631509 Whirlpool Wire Harness
NI
W10507834 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
NI
4450800 Whirlpool Oven Screw
1C
SAFER COOKING TIPS (ENGLISH
1D
Safer Cooking Tips (French)
1B
INSTRUCTIONS, INSTALLATION
1
TECH SHEET
1A
GUIDE, USE & CARE
2
SPUD-ORFCE
2B
W11051480 Whirlpool Orifice Assembly
2C
W10791075 Whirlpool Orifice Spud
2A
W10819958 Whirlpool Orifice Spud
3
WPW10364555 Whirlpool Orifice Holder
4
WPW10364556 Whirlpool Orifice Holder
5
W11569347 Whirlpool Grate Kit
6
W10269217 Whirlpool Trim Top Assembly
7
SCREW
8
8186321 Whirlpool Range Foot Pads Set of 4
9
W10261510 Whirlpool Knob Bezel
10
W10261512 Whirlpool Knob Bezel
11
W10833887 Whirlpool Surface Igniter
12
BRACKET, SPARK MODULE
13
CAP-BURNER
13A
CAP-BURNER
13B
CAP-BURNER
14
W10271524 Whirlpool Trim Top
15
W10256046 Whirlpool Clip
16
WP3177991 Whirlpool Screw
16A
W10491985 Whirlpool Screw
17
W10226014 Whirlpool Cooktop Trim
17A
W10226015 Whirlpool Cooktop Trim
18B
W10352967 Whirlpool Cooktop
18A
W10352966 Whirlpool Cooktop
18
W10352969 Whirlpool Cooktop Assembly
19B
BURNR-HEAD
19A
BURNR-HEAD
19
W11106799 Whirlpool Range Burner Base Surface
20
SCREW
21
W10201187 Whirlpool Nameplate
22
SCREW
23
PANEL, CONTROL
24
W11244176 Whirlpool Knob Assembly
25
WPW10475147 Whirlpool Spark Module
26
8286930 Whirlpool Oven Gasket
27
WPL 7103P16660
28
W11177673 Whirlpool Knob
29
WPW10373929 Whirlpool Screw
30
W10282659 Whirlpool Orifice Holder
31
W10854967 Whirlpool Surface Igniter
32
8286863 Whirlpool Oven Clip
←
