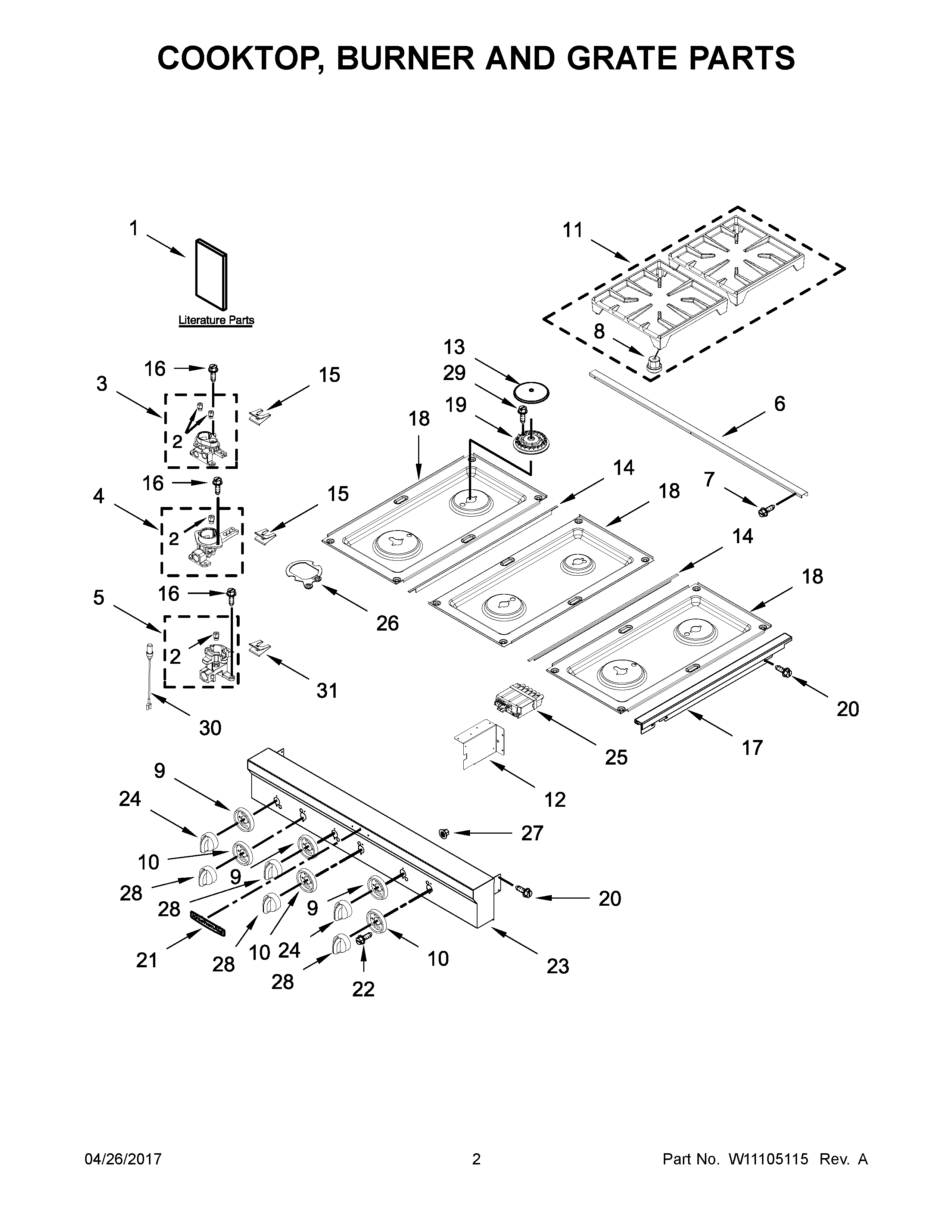

KGCU467VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

KGCU467VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCU467VSS02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWPL W10283996
NIW10856625 Whirlpool Venturi
NIKIT, LP CONVERSION
NI8287106 Whirlpool Clip Assembly
NIW11676349 Whirlpool Screw
NIW11379158 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NIW10631509 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
1TECH SHEET
1BINSTRUCTIONS, INSTALLATION
1AGUIDE, USE & CARE
1DSafer Cooking Tips (French)
1CSAFER COOKING TIPS (ENGLISH
2BW11051480 Whirlpool Orifice Assembly
2CW10791075 Whirlpool Orifice Spud
2SPUD-ORFCE
2AW10819958 Whirlpool Orifice Spud
3W10846622 Whirlpool Orifice Holder
4W10846623 Whirlpool Orifice Holder
5W10883622 Whirlpool Orifice Holder
6W10269217 Whirlpool Trim Top Assembly
7SCREW
88186321 Whirlpool Range Foot Pads Set of 4
9W10261510 Whirlpool Knob Bezel
10W10261512 Whirlpool Knob Bezel
11W11569347 Whirlpool Grate Kit
12BRACKET, SPARK MODULE
13BCAP-BURNER
13ACAP-BURNER
13CAP-BURNER
14W10271524 Whirlpool Trim Top
15W11684564 Whirlpool Clip Assembly
16WP3177991 Whirlpool Screw
16AW10491985 Whirlpool Screw
17W10226014 Whirlpool Cooktop Trim
17AW10226015 Whirlpool Cooktop Trim
18AW10352966 Whirlpool Cooktop
18BW10352967 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19W11106799 Whirlpool Range Burner Base Surface
19BBURNR-HEAD
19ABURNR-HEAD
20SCREW
21W10201187 Whirlpool Nameplate
22SCREW
23PANEL, CONTROL
24W11244176 Whirlpool Knob Assembly
25WPW10475147 Whirlpool Spark Module
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11241230 Whirlpool Screw
30W10854967 Whirlpool Surface Igniter
318286863 Whirlpool Oven Clip
