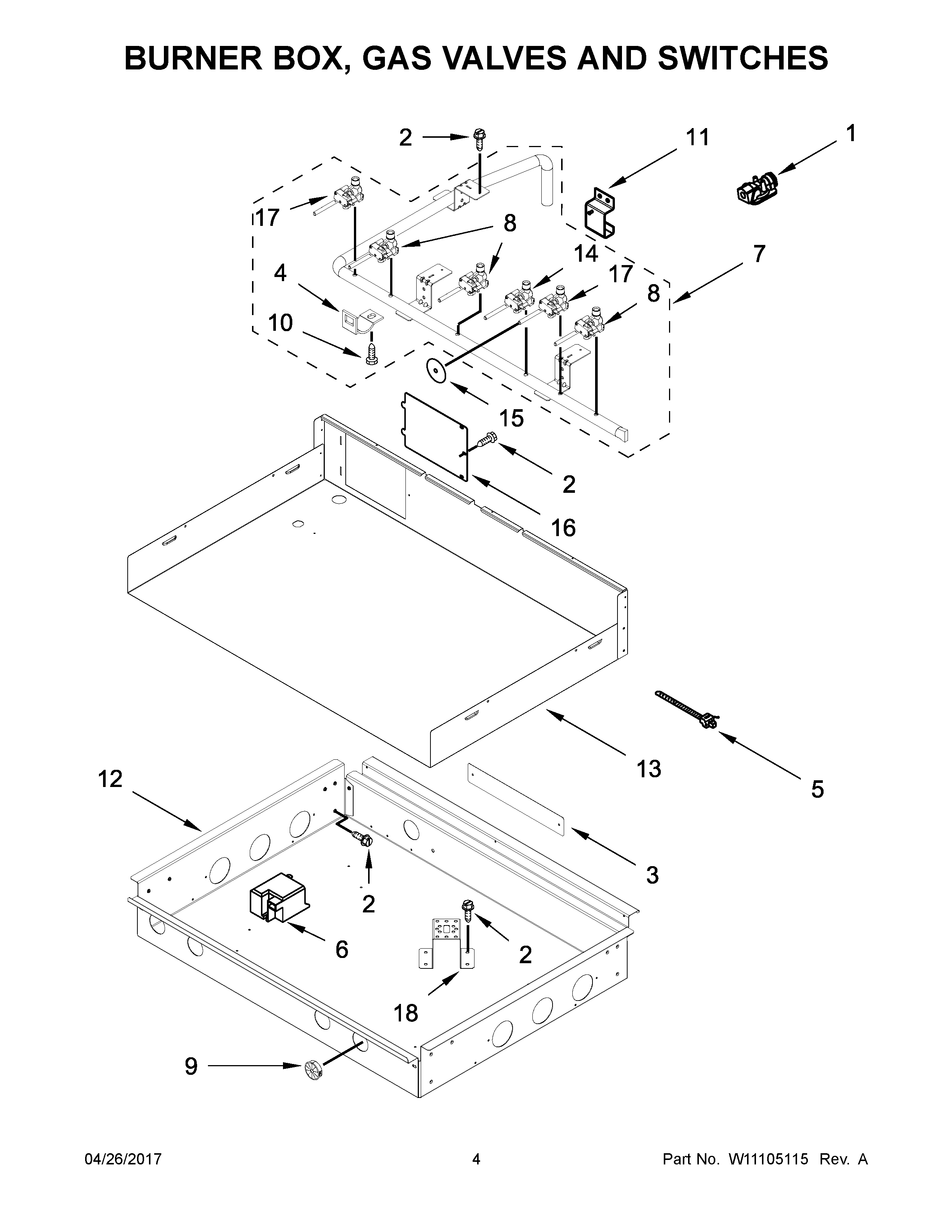

KGCU467VSS02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NICABINET (NOT A SERVICEABLE PART)
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10353152 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
1W11106948 Whirlpool Pressure Regulator
2SCREW
3COVER, PLATE
4BRACKET, VALVE
5W11675299 Whirlpool Tie Wire
6W11601369 Whirlpool Spark Module
7ASSEMBLY, MANIFOLD
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11Bracket, Mounting Orifice
12W10371516 Whirlpool Burner Box
13COVER, BURNER BOX
14WPW10385583 Whirlpool Burner Valve
15W10189177 Whirlpool Seal Switch
16W10115843 Whirlpool Access Cover
17WPW10371235 Whirlpool Burner Valve
18W10560553 Whirlpool Mounting Bracket
