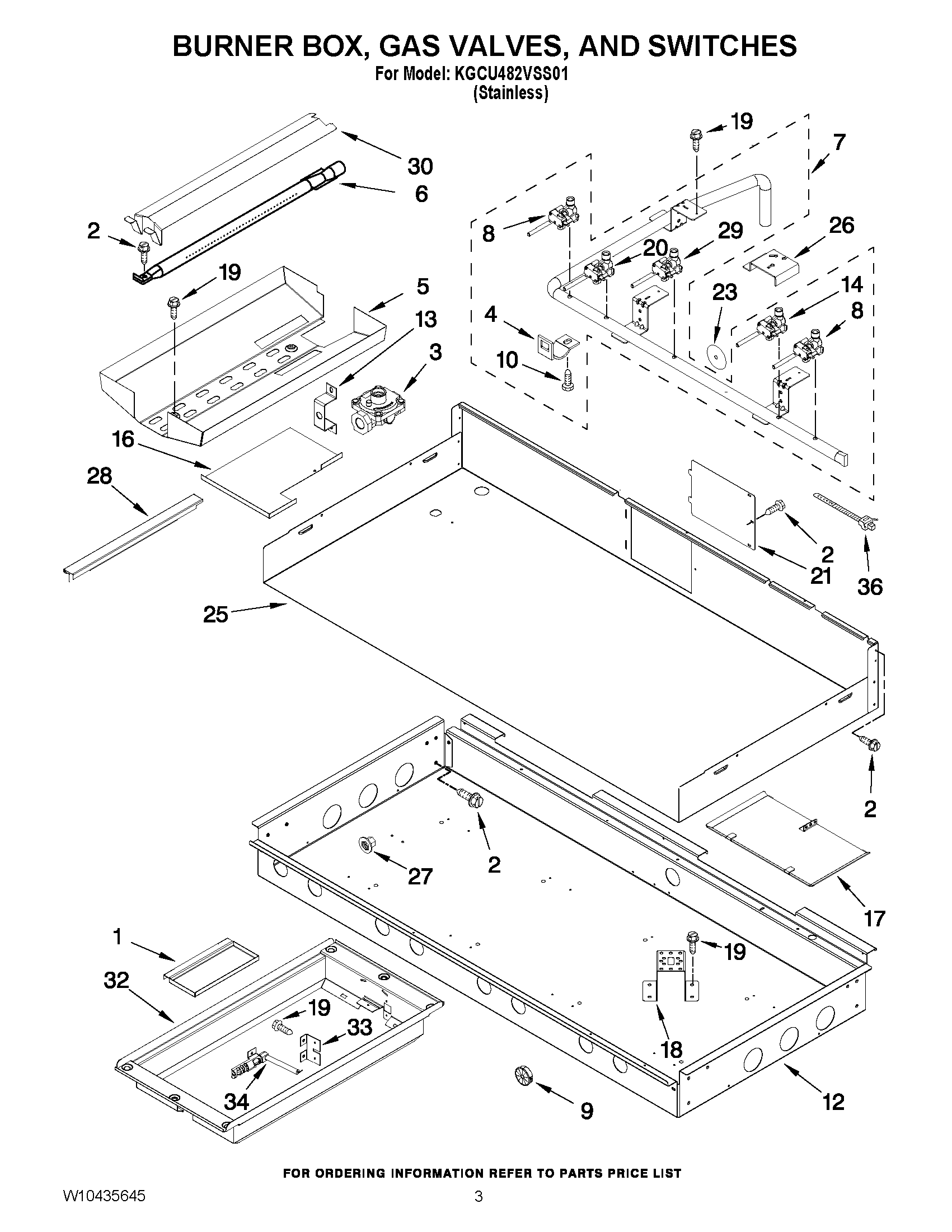

KGCU482VSS01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	WPW10353133 Whirlpool Gas Tubing
NI	W10353154 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10280797 Whirlpool Gas Tubing
NI	W10158807 Whirlpool Burner Tube
1	W10250473 Whirlpool Drip Tray
2	SCREW
3	WP9759091 Whirlpool Regulator
4	W10189107 Whirlpool Mounting Bracket
5	DEFLECTOR, GRILL
6	W10223569 Whirlpool Burner Grille
7	WPW10402604 Whirlpool Manifold
8	WPW10371235 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
12	BOX, BURNER
13	BRACKET, GRILL ORIFICE MOUNTING
14	WPW10385582 Whirlpool Burner Valve
16	HOLDER, DRIP TRAY
17	W10250468 Whirlpool Grille Guard
18	W10369547 Whirlpool Mounting Bracket
19	SCREW
20	WPW10385583 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
23	W10423373 Whirlpool Switch Seal
25	COVER, BURNER BOX
26	Bracket, Mounting Orifice
27	W11601369 Whirlpool Spark Module
28	DRIP TRAY, ROUTER 1
29	W10385584 Whirlpool Grill Valve
30	FLAME SPREADER
32	WPW10267890 Whirlpool Module
33	BRACKET, GRILL IGNITOR
34	W10268770 Whirlpool Surface Igniter
36	W11675299 Whirlpool Tie Wire
