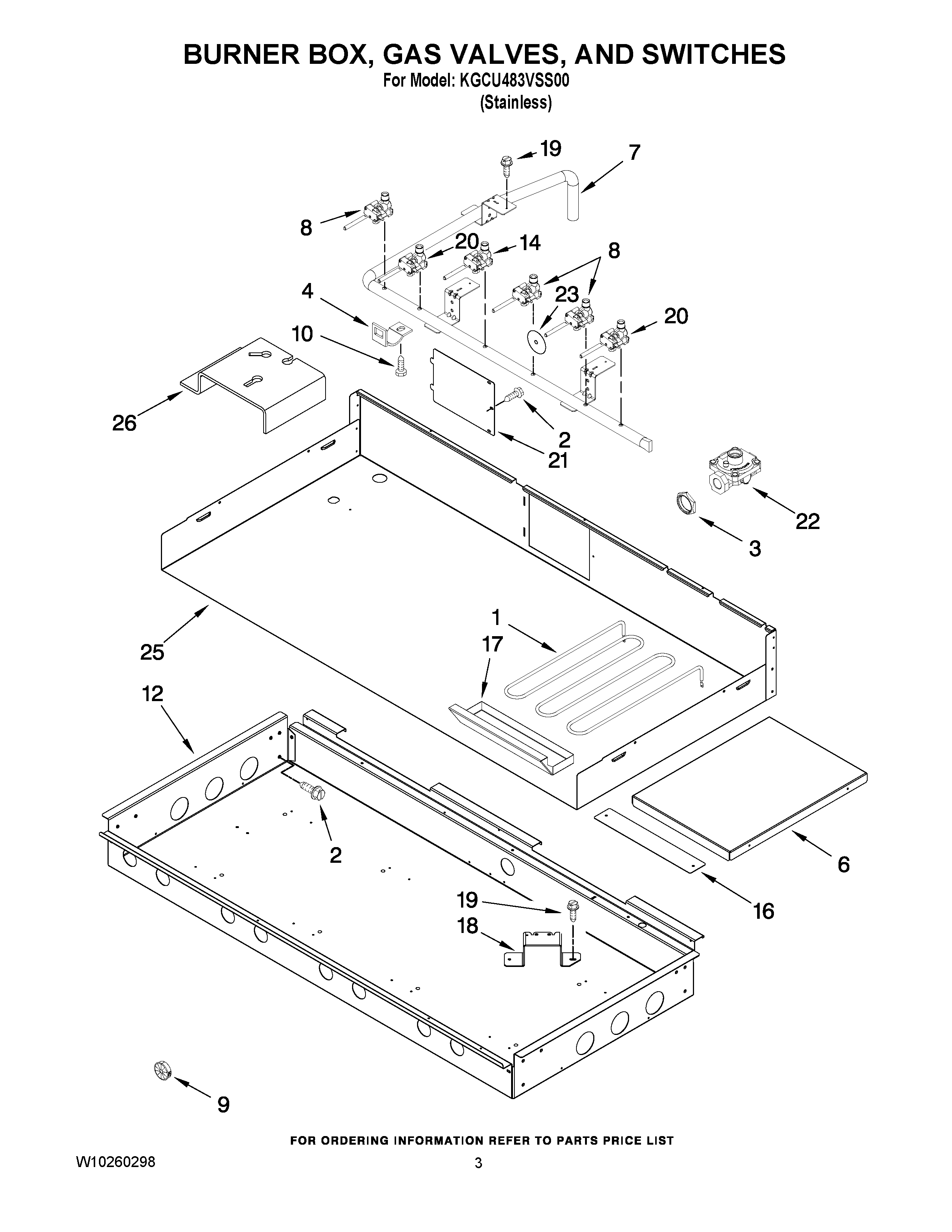

KGCU483VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	TUBING, GAS (LEFT REAR)
NI	W10280797 Whirlpool Gas Tubing
NI	W10115910 Whirlpool Gas Tubing
NI	W10115911 Whirlpool Gas Tubing
1	W10193014 Whirlpool Grille Element
2	W10145620 Whirlpool Bottom Model
3	W10115953 Whirlpool Nut
4	W10189107 Whirlpool Mounting Bracket
6	W10246074 Whirlpool Insulation Tray
7	MANIFOLD
8	WPW10326645 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
12	BURNER BOX
14	WPW10385583 Whirlpool Burner Valve
16	COVER, PLATE
17	W10276497 Whirlpool Drip Tray
18	BRACKET, BURNER (RIGHT REAR)
18	BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
19	4450800 Whirlpool Oven Screw
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
22	WP9759091 Whirlpool Regulator
23	W10189177 Whirlpool Seal Switch
25	COVER, BURNER BOX
26	Bracket, Mounting Orifice
